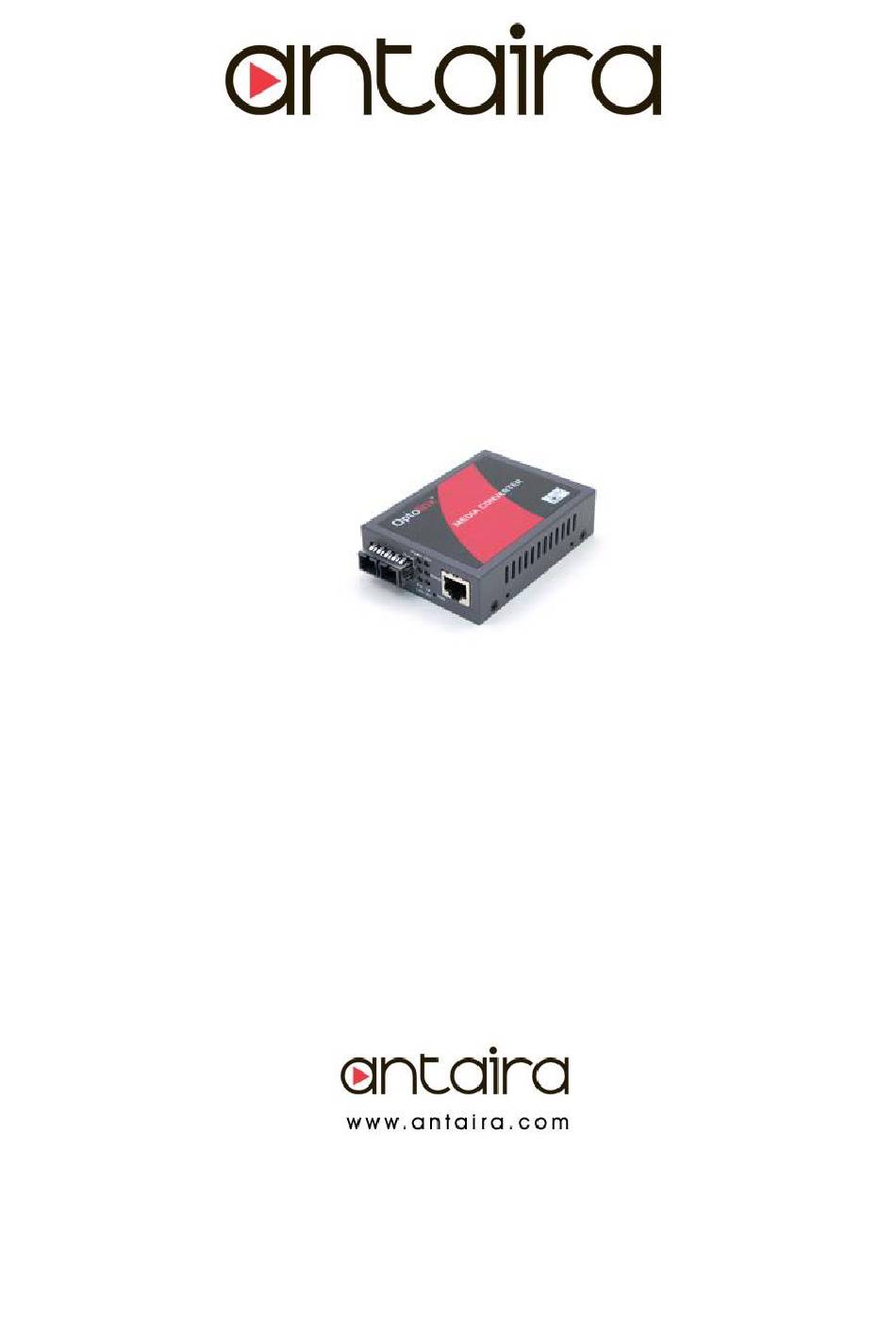

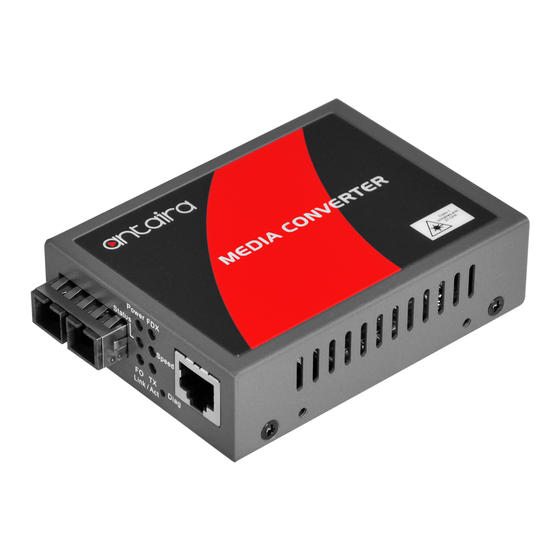

  • Page 1 FCN-3112 Series 10/100/1000TX to 1000SX SNMP Managed Media Converter Version 1.0 User Manual...
  • Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
  • Page 3  FCN-3112SC FCN-3112WA-S2   FCN-3112SC-S1 FCN-3112WB-M   FCN-3112SC-S2 FCN-3112WB-S1   FCN-3112WA-M FCN-3112WB-S2  FCN-3112WA-S1 This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com)

  • Page 4: Table Of Contents

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 Table of Contents Contents 1. Introduction .............. 1 1.1 Product Overview ............1 1.2 Product Software Features..........1 1.3 Product Hardware Features ..........1 1.4 Package Contents ............2 1.5 Safety Precaution ............
  • Page 5 Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.4.4 Traffic Statistic ........... 14 3.4.5 SNMP Configuration .......... 15 3.4.6 VLAN Configuration ........... 16 3.4.6.1 VLAN Group ............16 3.4.6.2 VLAN per Port Setting ........17 3.4.7 Q-in-Q Configuration..........

  • Page 6: Introduction

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 1. Introduction Antaira enterprise managed media converters come with a pre-installed “user-friendly” web console interface, which allows users to easily configure and manage the units. 1.1 Product Overview Antaira Technologies FCN-3112 series media converter is a managed, SNMP capable, multi-mode Gigabit Ethernet converter.

  • Page 7: Package Contents

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 1.4 Package Contents   1– FCN-3112 series: 1010/100/1000TX to 1000SX SNMP managed media converter   1– Product CD   1– Quick Installation Guide  ...

  • Page 8: Hardware Description

    2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s FCN-3112 series: 1010/100/1000TX to 1000SX SNMP managed media converter (W x H x D): 71 x 94 x 26 mm (2.80 x 3.70 x 1.02 inches) Figure 2.1...

  • Page 9: Front Panel

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 2.2 Front Panel The front panel of the FCN-31112 series enterprise media converter is shown below. Media Converter Dual-Fiber Front Panel Media Converter Single-Fiber & SFP Front Panel 2.3 Back Panel View...

  • Page 10: Led Indicators

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.

  • Page 11: Dip Switches

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 2.5 DIP Switches There is a bank of DIP switches located on the back panel of the device that helps users to configure the device without the need to access the web management. There is also a reset button on the front panel.

  • Page 12: Web Management

    3. Web Management 3.1 About Web-Based Management Antaira’s enterprise Ethernet media converter series is embedded with HTML web console interface that has a flash memory on the CPU board. It is a “user-friendly” design with advanced management features that allow users to manage the device from anywhere on the network through any Internet browser, such as Internet Explorer, Firefox, Chrome, and many others.

  • Page 13: System Information

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.2 System Information Below, Figure 3.2, shows the system setting information. Figure 3.2 – Switch Settings (Status) Page Terms Value Description Factory Default: “The Company” *Users can assign any name Company Name label to identify this managed node.

  • Page 14: Network Information

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.3 Network Information Below, Figure 3.3, shows the system setting information. Figure 3.3 – Switch Settings Description Device Information Terms Description MAC Address View-only field that shows the MAC address of this media converter.
  • Page 15 Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 Port Status Terms Description Signal Detect View-only field that shows whether the signal TP and FX is detected or not. View-only field that shows the link status of TP and FX. If the link is up, “On” will Link Status be shown.

  • Page 16: Module Setting

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.4 Module Setting Select Module Setting and then the following screen appears. Figure 3.4 – IP Setting Information Terms Value Description Network To enable or disable DHCP function and specify the desired IP address, Configuration subnet mask, gateway, and description.

  • Page 17: Password Setting

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 be automatically assigned from DHCP Server. When “Disabled”, you need to specify the media converter’s IP address, subnet mask, and gateway. IP Address When DHCP is disabled, you can specify your desired IP address.

  • Page 18: Port Configuration

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.4.3 Port Configuration Select “Port Configuration” from Module Setting menu, then the following screen appears. Terms Value Description Port There are two kinds of ports in this media converter: TP and FX.

  • Page 19: Traffic Statistic

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.4.4 Traffic Statistic Select “Traffic Statistics” from Module Setting menu, then the following screen appears. Terms Value Description Total Bytes View-only field that shows the number of received frames on each port.

  • Page 20: Snmp Configuration

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 (excluding framing bits) and have either an FCS error or an alignment error. View-only field that shows messages of CRC (cyclic redundancy check) data CRC Errors errors. View-only field that shows the number of packets that are longer than 1522 bytes Jabbers and have either an FCS error or an alignment error.

  • Page 21: Vlan Configuration

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.4.6 VLAN Configuration Please see Appendix A for important VLAN definitions. 3.4.6.1 VLAN Group To enable or disable VLAN Mode. When enabled, you can further indicate a VID to the selected ports.

  • Page 22: Vlan Per Port Setting

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.4.6.2 VLAN per Port Setting To set up each port’s egress link type and VID select “VLAN Per Port Setting”. The following screen appears. Terms Value Description Port This column indicates the ports available.

  • Page 23: Q-In-Q Configuration

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.4.7 Q-in-Q Configuration Select “Q-in-Q Configuration” from Module Setting menu, then the following screen appears. Terms Value Description To enable or disable Q-in-Q function. When Q-in-Q is enabled, Q in Q Enable settings in Egress Link Type will be disabled.

  • Page 24: Tools

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 3.5 Tools 3.5.1 System Reboot Select “System Reboot” from Tools menu, then the following screen appears. Select “OK” to restart the converter or “Cancel” to continue without restarting.

  • Page 25: Maintenance And Service

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 4. Maintenance and Service  If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible.

  • Page 26: Technical Specifications

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 5. Technical Specifications The following technical specifications are for Antaira’s FCN-3112 series enterprise Ethernet media converter Technical Specifications Approvals FCC Class A, CE Dimensions 71 x 97 x 26 mm (2.80 x 3.82 x 1.02 inches)

  • Page 27: Appendix A

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 6. Appendix A A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. VLAN can be used to combine any collections of LAN segments into a group that appears as a single LAN.
  • Page 28 Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 frames entering that port (ingress traffic). On the other hand, a port can be defined as a member of multiple VLAN (multiple VID). These VIDs constitute an access list for the port. The access list can be used to filter tagged ingress traffic (the converter will drop a tagged packet if that tagged packet does not have a VID that belong to the set of VIDs assigned to that port).
  • Page 29 Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 packet and keep the VLAN information intact. The VLAN information in the tag can then be used by other 802.1Q compliant devices on the network to make packet forwarding decisions.

  • Page 30: Appendix B

    Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 7. Appendix B Q-in-Q examples: In this section, two example figures are provided to explain the VLAN and Q-in-Q configurations. Application Example 1: As illustrated below, TP port is connected to the customer device that has incoming traffic with VLAN 100.
  • Page 31 Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 2. Specify VID 100 and 1000 in VLAN Group 1 and 2 respectively. Select TP, FX, and CPU as member ports in VLAN Group 1 and 2 (when CPU is selected as a member, the VLAN becomes management VLAN.).
  • Page 32 Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 Application Example 2: In this backbone scenario, suppose two stand-alone converters are used to extend the distance up to 80KM (depending on the models used). On the left-hand side, PC1 is the management PC that can manage the “Converter 1”...
  • Page 33 Antaira Technologies – Enterprise Managed Media Converter FCN-3112 Series User Manual V1.0 802.1Q VLAN Per Port Setting 1. Set TP port’s Egress Link Type to “Add Tag” and select VLAN Group 2 (330). When Management PC1 sends out a frame, the converter will remove VLAN tag 330 within a frame.
  • Page 34 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
