  • Page 1 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter User’s Manual...
  • Page 2 Antaira has made every effort to ensure that this User’s Manual is accurate; Antaira disclaims liability for any inaccuracies or omissions that may have occurred.
  • Page 3 FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual for Antaira Gigabit Ethernet Converter Rev 3.1 (November 2013) Part No: 2010-AA4230-470...
  • Page 5: Table Of Contents

    Table of Contents 1. PRODUCT FEATURES ............6 2. MODEL LIST ..............7 3. CHECKLIST ..............8 4. PRODUCT OUTLOOK ............9 5. LINK FAULT PASS THROUGH (LFP) ........14 6. INSTALLING THE CONVERTER .......... 17 7. DUPLEX MODE SUPPORT ..........19 8.
  • Page 6: Product Features

    ● LED indicators for simple diagnostics and management ● Provides DIP switch for LFP function (Disable / Enable) setting ● Compact in size, easy installation ● OAM (TS-1000 and IEEE 802.3ah) supported ● 9K Jumbo frame supported ● Can be installed on Antaira’s Media Converter Chassis...
  • Page 7: Checklist

    2. checklist Your FCU-280x package should contain the following items: ● The Gigabit Ethernet Media Converter ● AC-DC Power Adapter (Output: 5VDC, 2A max.) ● This User’s Manual If any items are missing or damaged, please consult the dealer from which you purchased your Gigabit Ethernet Converter. WDM models has one vacant SFP module slot.
  • Page 8: Product Outlook

    3. Product outlook Overview Real Panel TOP Panel Bottom Front Panel Figure 1: Multi-Mode/Single-Mode Duplex Model...
  • Page 9 Real Panel TOP Panel Bottom Front Panel Figure 2: SFP Model...

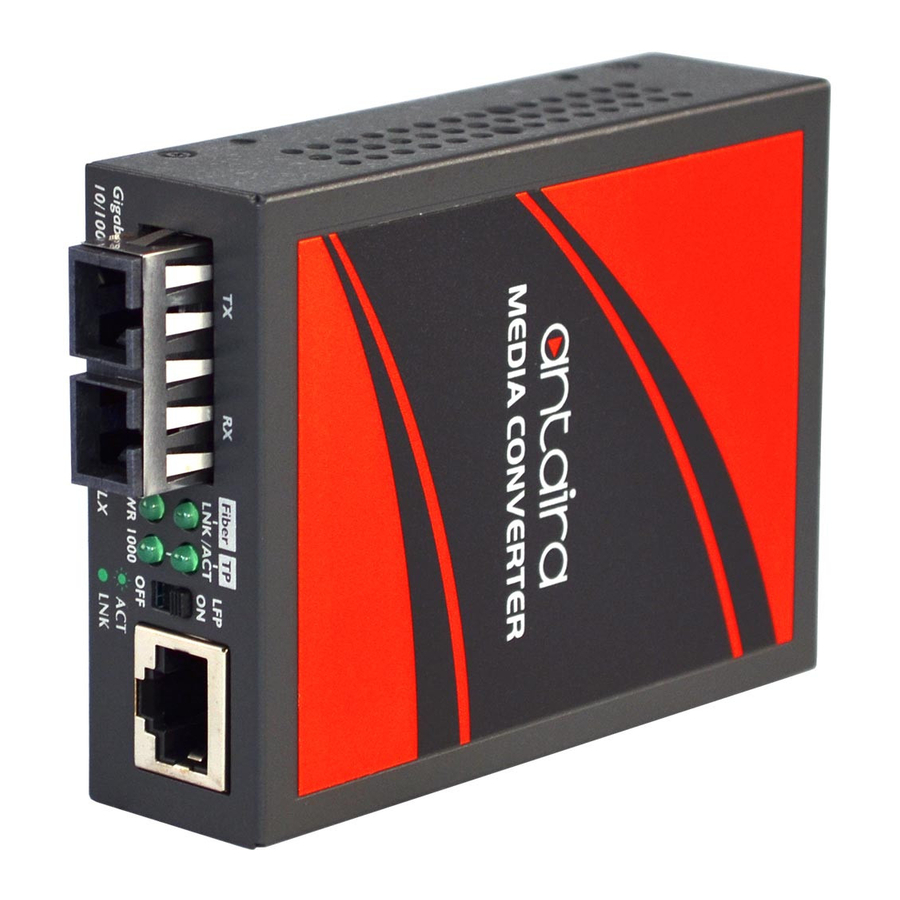

  • Page 10 Real Panel TOP Panel Bottom Front Panel Figure 3: WDM (Single-Strand Fiber) Model Left View The Front Panel of the Gigabit Ethernet Media Converter consists of one 1000Base-SX / 1000Base-LX / mini-GBIC SFP / 1000Base- LX WDM ports and one Auto-Sensing 10/100/1000Mbps Ethernet RJ-45 Port, one DIP switch for LFP ON/OFF.
  • Page 11 Figure 4: Multi-Mode/Single-Mode Duplex Model Figure 5: SFP Model Figure 6: WDM (Single-Strand Fiber) Model...
  • Page 12 Rear View The rear panel of the Gigabit Ethernet Media Converter indicates one DC jack, which accepts input power with 5V DC 2A. 5V DC Figure 7: One DC jack for DC power input. The device is a power-required device, it means, it will not work till it is powered.
  • Page 13: Link Fault Pass Through (Lfp)

    4. link Fault Pass through (lFP) function includes Link Fault Pass Through function (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alert administrators about problems with the link media and provide an efficient solution to monitor the net. The DIP Switch can disable or enable the LFP function.
  • Page 14 Cable l LED lit = established link ° LED unlit = no link If the connection breaks, the FCU-280x link loss forwards to the switch/hub that generates a trap to the management station. The administrator can then determine the source of the issue. Management Switch/Hub Media...
  • Page 15 Management Switch/Hub Media Media Switch/Hub Station Station w/SNMP Converter Converter LFP ON LFP OFF Fiber Cable Management Switch/Hub Media Media Switch/Hub Station Station w/SNMP Converter Converter l LED lit = established link ° LED unlit = no link LFP ON LFP OFF Fiber Cable...
  • Page 16: Installing The Converter

    5. installing the conVerter Stand-alone Installation To install a FCU-280x stand-alone, on a desktop or shelf, simply follow the steps below: Step 1: Turn off the power of the device/station on the network to which the FCU-280x will be attached. Step 2: Ensure that there is no activity in the network.
  • Page 17 LEDs should light when all cables are attached. Figure 9: SFP Model installation It’s recommended that Antaira SFP Modules be used in the Antaira converters. If you insert a SFP transceiver that is not supported, the converter Note will not recognize it.
  • Page 18: Duplex Mode Support

    6. duPlex Mode suPPort FCU-280x one-channel media conversion between 10/100/1000Base-T 1000Base-SX/LX. 10/100/1000Base-T port can work under Auto-negotiation mode. However, the 1000Base-SX/LX fiber port only works under forced 1000Mbps full duplex mode.
  • Page 19: Led Indication

    7. led indication Color Description Green Lit: When +5VDC power detected. Lit: To indicate the link through that fiber Fiber port is successfully established. Green LNK/ACT Blink: Indicates that the fiber port is actively sending or receiving data. Lit: To indicate the link through that port TP LNK/ is successfully established.
  • Page 20: Cable Connection Parameter

    8. cable connection ParaMeter The wiring details are as below: Cables: Standard Fiber Type Cable Specification 1000Base-SX Multi-mode 50/125μm or 62.5/125μm (850nm) Multi-mode 50/125μm or 62.5/125μm 1000Base-LX (1300nm) 9/125μm Single-mode Wiring Distances: Modal Max. Diameter Standard Fiber Bandwidth Distance (micron) (MHz * km) (meters) 62.5...
  • Page 21: Product Specification

    9. Product sPeciFication The FCU-280x comes with the following standard features: 2802WA-S10 Model: FCU- 2802SC 2802SC-S10 2805SFP 2802WB-S10 Hardware Version Version 3 SC-type connector Connector – Fiber SC-type connector SFP, LC type (WDM) LX Mode Multi-mode Single mode Vary on module Single mode Fiber Maximum 220m / 550m 10km...
  • Page 22 10/100/1000Base-T: 1000Base-T-2-pair UTP Cat. 5/5e/6, up to 100m 1000Base-SX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 220/550m (SC) Cable 1000Base-LX : 9/125μm single-mode fiber optic cable 9/125μm single-mode fiber optic cable, up to 10/15/20/30/40/50/60/70/120km (vary on fiber transceiver or SFP module) TS-1000, IEEE 802.3ah terminal Jumbo Packet Size...
  • Page 24 This page is intentionally left blank...
