Summary of Contents for ANTAIRA FCU-2805P-SFP
- Page 1 1000Base-X to 10/100/1000Base-T 802.3at PoE Media Converter User’s Manual...
- Page 2 Antaira has made every effort to ensure that this User’s Manual is accurate; Antaira disclaims liability for any inaccuracies or omissions that may have occurred. Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of Antaira.
- Page 3 FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision Antaira 1000Base-X to 10/100/1000Base-T 802.3at PoE+ Media Converter User’s Manual Rev 1.2 January, 2013 Part No. 2350-AA4480-471...
-
Page 5: Table Of Contents
6. PoE Function ..............15 7. LED Indication ..............17 8. Cable Connection Parameter ..........18 9. FCU-2805P-SFP Technical Specifications ......19 APPENDIX A ............... 20 A.1 Device's RJ-45 Pin Assignments ......... 20 A.2 RJ-45 Cable Pin Assignment ........21... -
Page 6: Overview
IEEE 802.3at / 802.3af compliant powered devices. About the Power over Ethernet Injector The FCU-2805P-SFP is an IEEE 802.3at / 802.3af Power over Ethernet Injector that provides DC 52V over Ethernet cables. By inserting DC Voltage into Cat.5 / 5e/ 6 cables, the cable between the Injector (FCU-2805P-SFP) and PoE PD (Powered Device) allows the transfer of data and power simultaneously. -
Page 7: Checklist
2. Checklist Your FCU-2805P-SFP box should contain the following items: 1. 1000Base-X 10/100/1000Base-T 802.3at Media Converter x 1 2. User’s Manual x 1 3. AC-DC Adapter (Input: 52V~56V DC, 0.58A max.) x 1 4. Power Cord x 1 If any of these are missing or damaged, please contact your dealer immediately. -
Page 8: Product Outlook

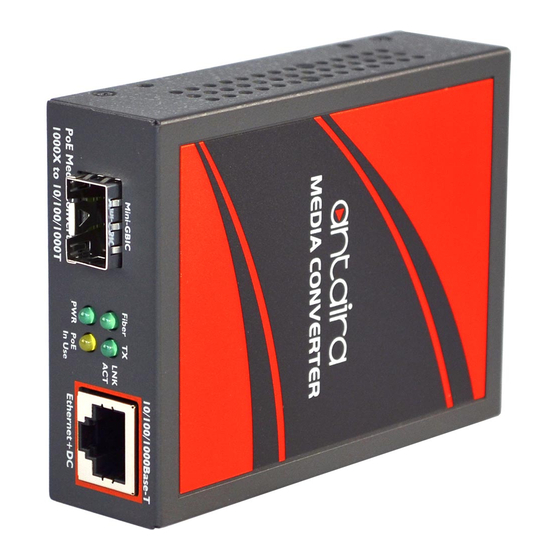

3. Product Outlook Overview The layout of the FCU-2805P-SFP 10/100/1000Base-T 52V~56V DC Mini-GBIC Fiber TX PoE Media Converter Ethernet+DC In Use 1000X to 10/100/1000T Figure 3-1: Product Outlook of the FCU-2805P-SFP... - Page 9 Fiber TX PoE Media Converter Ethernet+DC In Use 1000X to 10/100/1000T Figure 3-2: Left View of FCU-2805P-SFP Right View One DIP switch for Link Fault Pass Through (LFP) features an, “ON” switch to turn-on the LLCF and LLR detection and an “OFF”...
-
Page 10: Link Fault Pass Through (Lfp)
FL / TP ports do not transmit a link signal until they receive a link signal from the opposite port. The diagram below shows a typical network configuration with a good link status using FCU-2805P-SFP for remote connectivity. Management Switch/Hub... -
Page 11: Link Loss Return (Llr)
Cable l LED lit = established link ° LED unlit = no link *Units are shipped with the LFP function disabled (OFF). Link Loss Return (LLR) The fiber ports of the FCU-2805P-SFP have been designed with Management Switch/Hub Media Media... - Page 12 If one of the optical conductors is down (as shown in the diagram box below), the converter with LLR function will return a no-link condition to its link partner. With the LLCF function also enabled, the no-link condition is carried forward to the switch/hub where a trap is generated to the management station, and the administrator can then determine the source of the loss.
-
Page 13: Installing The Converter
1. Turn off the power of the device / station in a network to which the FCU-2805P-SFP will be attached. 2. Ensure that there is no activity in the network. 3. Attach fiber cable from the FCU-2805P-SFP to the fiber network. 4. Attach Cat.5... - Page 14 1000Base-SX/LX SFP transceiver 10/100/1000Base-T 1000Base-SX/LX LC Fiber Figure 5-1: FCU-2805P-SFP Installation RJ-45 / STP, UTP Cat5 / 5e / 6, straight / cross- over cable is accepted. Please refer to section 9 for more about the wiring Note distance of your TP, Optic-fiber networks.
-
Page 15: Poe Function
Ethernet device conveniently and easily. The FCU-2805P-SFP is equipped with an AC-DC adapter with DC 52V~56V input that injects the DC power into the pin of the twisted pair cable (Pin 1, 2, 3 and 6). - Page 16 For places that prove difficult to find a power inlet, the FCU-2805P-SFP provides the easiest way to power your Ethernet devices with an Internet Camera or PoE Wireless Access Point installed in the wild range place. 550m~120km 100 meters FCU-2805P-SFP...
-
Page 17: Led Indication
7. LED Indication System Color Function Green Light Indicates the device is powered. 10/100/1000Base-T Port Color Function Indicates that the PoE+ Media Blink Converter is actively sending or receiving data over that port. LNK/ACT Green Indicates that the port is link Light up at 10/100/1000Mbps. -
Page 18: Cable Connection Parameter
8. Cable Connection Parameter The limitations are as below: Duplex Connection Limitation (max.) Twisted Pair Node to Node Half / Full 100 meters Node to Switch/Hub Multi-Mode Converters Node to Node MM Half 412 meters Node to Switch Node to Node MM Full 220 / 550 meters Node to Switch... -
Page 19: Fcu-2805P-Sfp Technical Specifications
9. FCU-2805P-SFP Technical Specifications The FCU-2805P-SFP comes with the following standard features: • Standard: IEEE 802.3 802.3u 802.3ab, 10/100/1000Base-T and IEEE 802.3at / 802.3af Power over Ethernet standard • Connectors: • 1 x RJ-45 (Auto-MDI/MDI-X) Twisted Pair, EIA568 w/ PoE •... -
Page 20: Device's Rj-45 Pin Assignments
APPENDIX A A.1 Device's RJ-45 Pin Assignments 1000Mbps, 1000Base-T RJ-45 Connector pin assignment Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- 10/100Mbps, 10/100Base-TX RJ-45 Connector pin assignment MDI Media Dependant MDI-X Media Dependant Contact Interface... -
Page 21: Cable Pin Assignment
A.2 RJ-45 Cable Pin Assignment There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Straight Cable SIDE 1 SIDE 2 1 2 3 4 5 6 7 8 SIDE 1 1 = White/Orange... -
Page 22: Fiber Optical Cable Connection Parameter
A.3 Fiber Optical Cable Connection Parameter The wiring details are as below: Fiber Optical Patch Cables: Standard Fiber Type Cable Specification 1000Base-SX (850nm) Multi-mode 50/125μm or 62.5/125μm Multi-mode 50/125μm or 62.5/125μm 1000Base-LX (1300nm) Single-mode 9/125μm...
