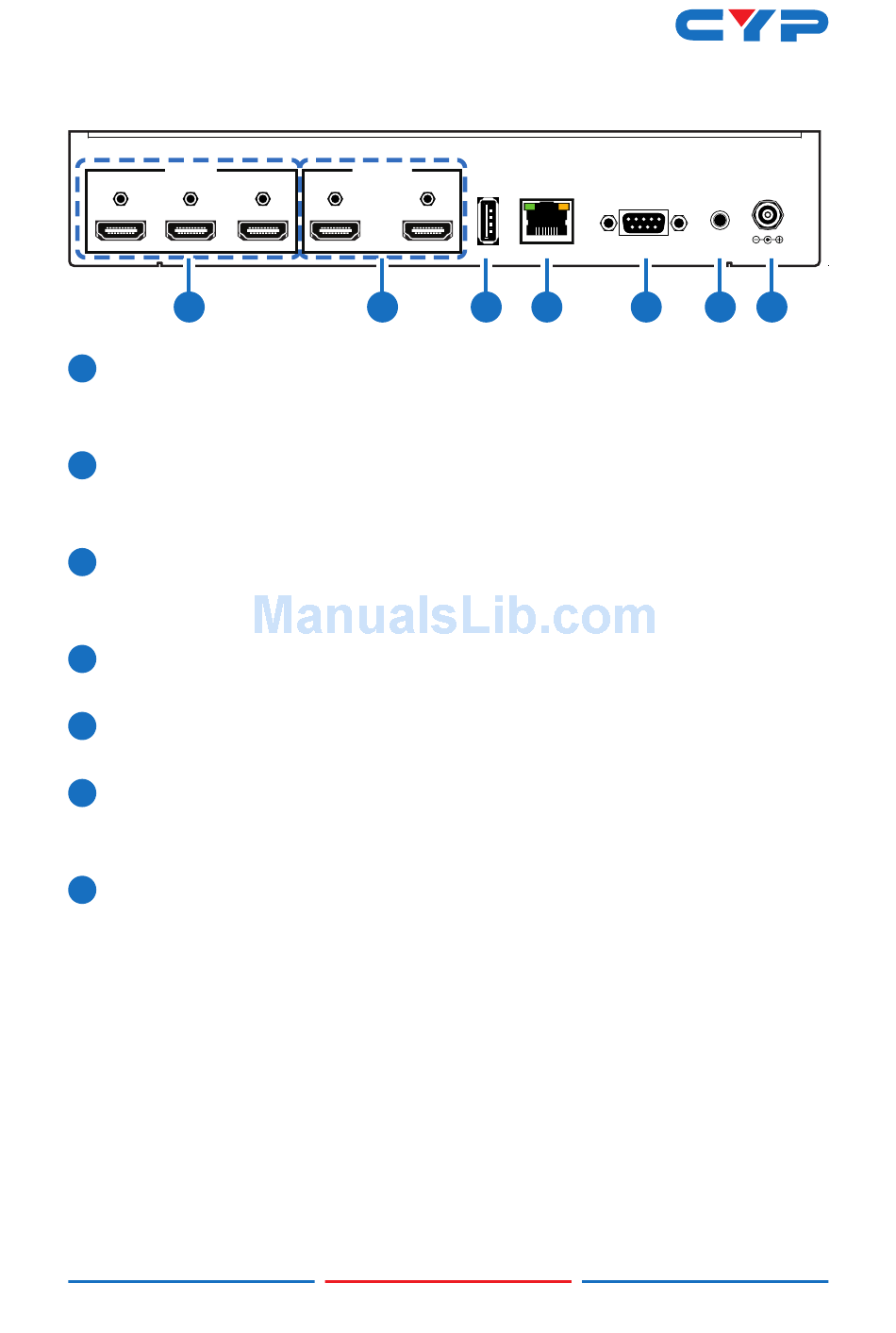

6.2 Rear Panel

HDMI IN
2 3
1
1
HDMI In : Connect to HDMI source equipment such as a media
player, game console or set-top box. DVI source equipment may
be connected by using an HDMI to DVI adapter.
2
HDMI Out: Connect to HDMI TVs, monitors or amplifiers for
digital video and audio output. DVI display equipment may be
connected by using ans HDMI to DVI adapter.
3 SERVICE: This slot (USB 2.0) is reserved for firmware update use only.
Please plug in a USB thumb drive containing the new firmware to
update the unit.
4
CONTROL: Connect directly, or through a network switch, to your
PC/laptop to control the unit via telnet/WebGUI.
5
RS-232: Connect directly to your PC/laptop to send RS-232
commands to control the unit.
6 IR IN: Connect to the provided IR Extender to extend the IR control
range of the unit. Ensure that the remote being used is within direct
line-of-sight of the IR Extender.
7
DC 5V: Plug the 5V DC power adapter into the unit and connect
it to an AC wall outlet for power. The LED will illuminate GREEN to
indicate the unit is on and receiving power.
