6. OPERATION CONTROLS AND FUNCTIONS

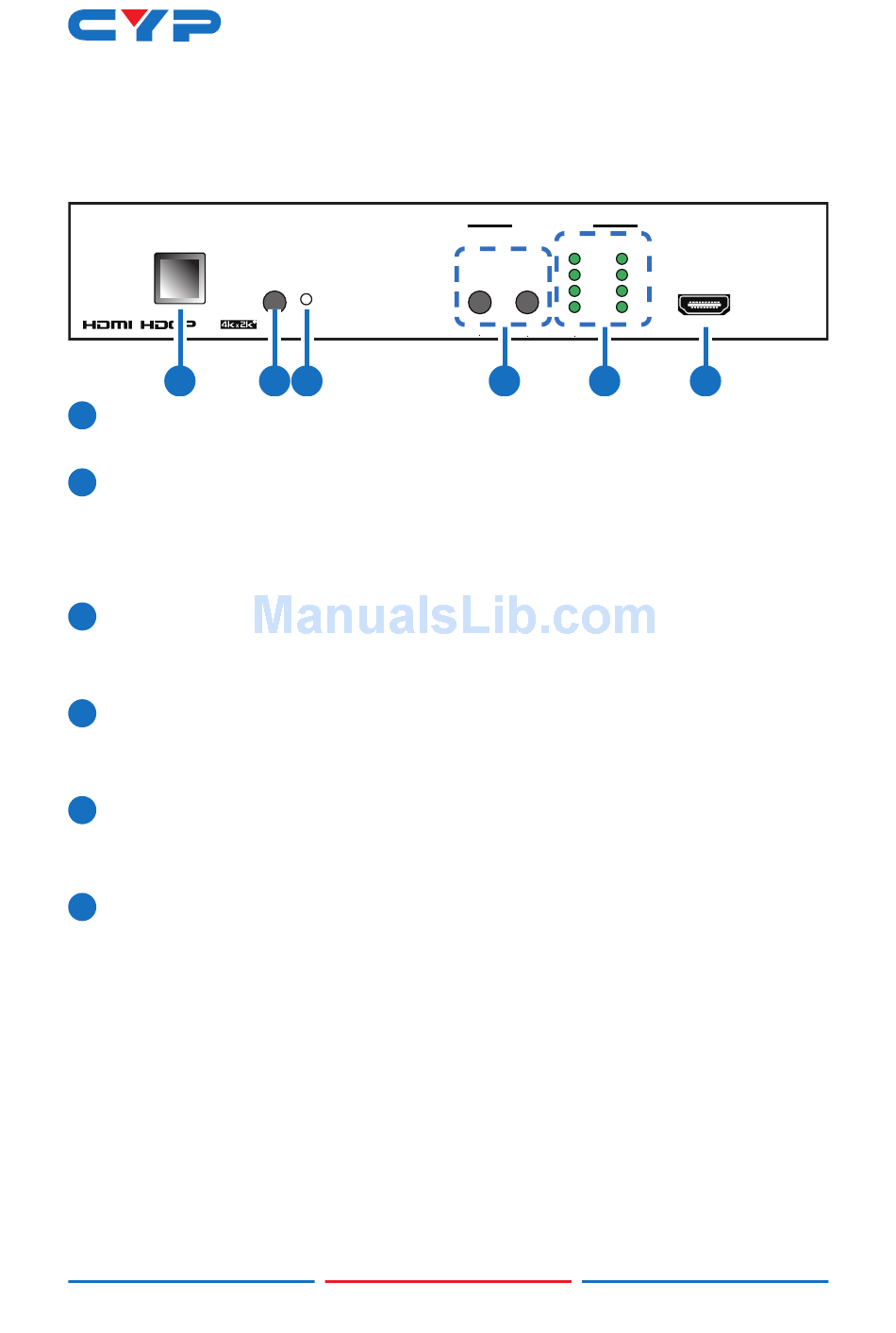

6.1 Front Panel

2.2
1
1
IR window: Accepts IR signals from the included IR remote for
control of this unit only.
2
POWER: Press this button to power on the unit or place it into stand-
by mode.
Note: Ethernet and RS-232 remain active while the unit is in stand-
by mode.
3
Power indicator: The LED will illuminate RED to indicate the unit is
receiving power but is in stand-by mode. It will illuminate GREEN to
indicate that the unit has been turned on.
4
HDMI out indicator "A & B": The correspondence LED will illuminate
GREEN when a stable connection with an output device is
detected.
5 HDMI In indicator "1&2&3&4": The correspondence LED will
illuminate GREEN when a stable connection with an input device is
detected.
6
HDMI In: Connect to HDMI source equipment such as a media
player, game console or set-top box. DVI source equipment may
be connected by using an HDMI to DVI adapter.
3
POWER
+
2 3
HDMI IN / OUT
A B
1 1
A B
2 2
3 3
4 4
4 5
HDMI IN
1
6
