SIDE-POWER
Thruster Systems
Installation and user manual
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
Tel: +47 69 30 00 60
Fax: +47 69 30 00 70

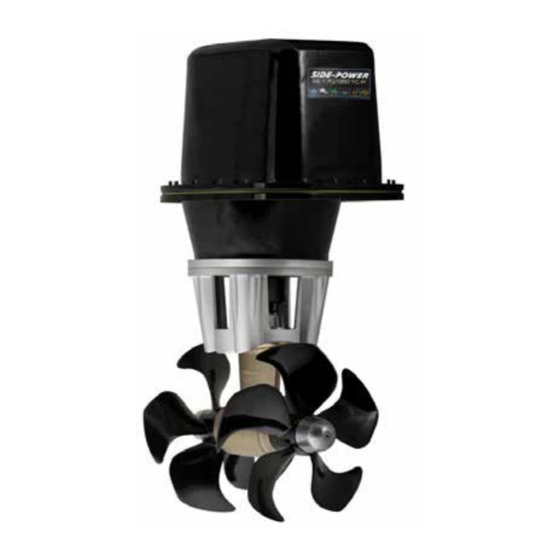

SE170/250TC IP
Ignition Protected
thruster assembly
w w w . s i d e - p o w e r . c o m
s i d e p o w e r @ s l e i p n e r. n o
© Sleipner Motor AS 2015
Advertisement
Table of Contents
Related Manuals for Side-Power SE170/250TC-IP
Summary of Contents for Side-Power SE170/250TC-IP
- Page 1 SE170/250TC IP Ignition Protected SIDE-POWER thruster assembly Thruster Systems Installation and user manual SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 w w w . s i d e - p o w e r . c o m Fax: +47 69 30 00 70 s i d e p o w e r @ s l e i p n e r.
-
Page 2: Table Of Contents
Contents Technical specifications ............. 2 DECLARATION OF CONFORMITY Planning & important precautions..........3 Stern thruster installation considerations........3 We, Sleipner Motor AS Bolt on installation ..............4 P.O. Box 519 Mould on installation ..............5 N-1612 Fredrikstad, Norway Gearhouse and motorbracket ............ 6 declare that this product with accompanying Oil tank &... -
Page 3: Planning & Important Precautions
Planning and important precautions Prior to installation, it is important that the installer reads this guide to ensure necessary acquaintance with this product. The electromotor assembly must be handled carefully. Do not lift it by the internal connections or put it down on the driveshaft. Beware to keep installation within adviced measurements. -
Page 4: Bolt On Installation
SEALANT Fig. 2 Fig. 1 WASHERS LOCKNUT OR DOUBLE NUTS SEALANT Bolt on installation of the stern tunnel 1. Make sure that there are enough space both inside and out- If a bow thruster is also installed, we strongly advice to side the transom of the boat. -
Page 5: Mould On Installation
Fig. 1 Fig. 2 Grind off the bolt flange and Bond multiple layers both in- the gelcoat both inside and out- side and outside side in the areas shown. Boat transom Boat transom Boat transom Boat transom Stern tunnel Stern tunnel Mould on installation of the stern tunnel 1. -
Page 6: Gearhouse And Motorbracket
55 TCi 00 TCi BOATS CENTRELINE Fig. 1 Fig. 2 TUNNELS CENTRELINE Fig. 3 Ø 11,00mm 7/16" Ø 46,00mm 1,81" 40,0mm 1,57" Bolt tightening force 33Nm (24 lb/ft) Fig. 4 g. 2 40 TCi BOATS 85 TCi Bolt tightening forces: CENTRELINE Bolt tightening force 33Nm (24 lb/ft) -
Page 7: Oil Tank & Propellers
Locktite Fitting propellers 1. Push the propeller onto the shaft, carefully rotate the propeller until the drive pin aligns and moves into the slot/grove in the propeller hub. There should be almost no gap (approximately 1mm) between the propeller hub and the gear house. 2. -
Page 8: Electromotor Ip Assembly
e (4x): Fig. 2 Fig. 1 e (2x): SP95Ti IP lb/ft) Key in driveshaft Fig. 2 4 lb/ft) Driveshaft from SP 200 TCi gearhouse SP 240 TCi SP 285 TCi 88mm Set screw For safety the motor of the Sidepower SP200TCi / SP240TCi / SP285TCi must be fastened in all installation positions with the included motor-support. -
Page 9: Electrical Installation
Counter Nut Washer Cable terminal Washer Counter Nut SP 75 Ti Washer SP 95 Ti Battery SP 125 Ti 12V or 24V Battery 12V or 24V Table for s election of m ain cable, Fig. 1 Fig. 2 battery, fus e and m ain-s witch up to 7m total &... -
Page 10: Control Panel And Control-Leads
Pin configuration in contacts SIDEPOWER SIDEPOWER THRUSTER THRUSTER SLEIPNER SLEIPNER Control panel and control-leads Control panel and control-leads • You can install as many panels as you wish by using optional Y-connectors. If two or more panels are operated at the same time in •... -
Page 11: "Visual" Wiring Diagram
"Visual" wiring diagram SP75Ti / SP95Ti ignition protected thruster assembly SE170/250TC Ignition Protected thruster assembly 1.2.1 - 2007 version 1.3 - 2015... -
Page 12: Technical Wiring Diagram
Technical wiring diagram 4 pin On Motor connector Fused blue red (+) inside 1A (sig -) blue (sig +) Electronic interface box 6 1232i 6 1230i white black (-) grey (sig +) grey (sig -) black brown Battery Fuse main Thermal switch switch... -
Page 13: Checklist
Checklist Propeller is fastened correctly to the shaft. Propeller turns freely in tunnel. Lower-unit is filled with gearoil. Oil-drain screw is tightened and the copper seal is present. The zinc-anode holding screw is tightened well with thread glue. ... -
Page 14: Important User Precautions
Important user precautions • Ensure that you know the location of the main battery switch that disconnects the thruster from all power sources (batteries) so that the thruster can be turned off in case of a malfunction. • Always turn the main power switch off before touching any part of the thruster, as an incidental start while touching moving parts can cause serious injuries. -
Page 15: How To Use Sidepower Thrusters
To turn panel ON Turn boat to port Bow+Stern Thruster To turn panel OFF Turn boat to starboard How to use Sidepower thrusters How to use Sidepower thrusters How to use a bowthruster How to use a bowthruster 1. Turn main power switch for the bowthruster on. (Always turn off the main power switch when not onboard.) 1. -
Page 16: Maintenance
Power & control cables Ignition protected casing Motorbracket for holding motor and gearhouse together on the tunnel. Flexible coupling secures the electromo- tor if propeller is jammed. Changeable from inside the boat. 5-blade skew Q-PROP propeller for ultimate performance. Prefilled &sealed gearleg. Changeable zincanode protects gear- house from corrosion in seawater. -
Page 17: Troubleshooting
Trouble shooting Before seeking assistance at the help desk of your Sidepower dealer / distributor please perform these tests and make notes of all mea- surements to ensure that they have as much information as possible to work on. NB! All check points and solutions must be carried out after consulting the relevant information elsewhere in this manual to under-stand how the system is intended to work. -
Page 18: Warranty Statement
Warranty statement 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 19: Parts List
SE 170/250 TC SE170/250TC Ignition Protected thruster assembly version 1.3 - 2015... -
Page 20: Service Centres
Worldwide sales and service www.side-power.com SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 Fax:+47 69 30 00 70 www.side-power.com sidepower@sleipner.no...
