SIDE-POWER
Thruster Systems
Installation and user's manual
EN
Installasjons og brukermanual
N
SLEIPNER MOTOR AS
Arne Svendsensgate 6-8
1610 Fredrikstad
Norway
www.side-power.com

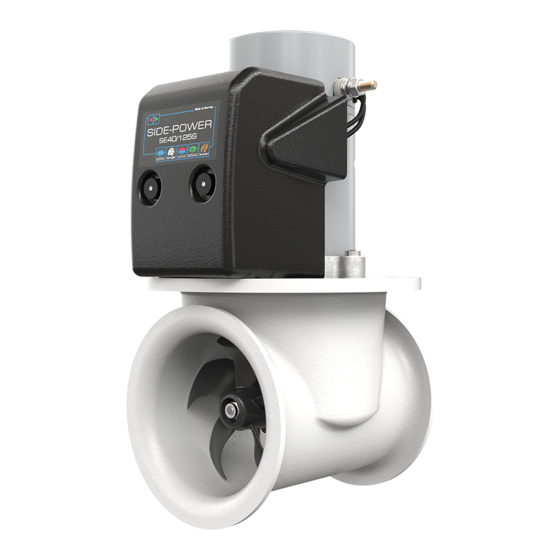

SE30/125S2
SE40/125S2
Document id:
Revision:
5408
2
© Sleipner Motor AS 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE30/125S2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Side-Power SE30/125S2

  • Page 1 SE30/125S2 SE40/125S2 SIDE-POWER Thruster Systems Installation and user's manual Installasjons og brukermanual SLEIPNER MOTOR AS Arne Svendsensgate 6-8 1610 Fredrikstad Norway Document id: 5408 www.side-power.com Revision: © Sleipner Motor AS 2018...
