Xterra EGR200 ROWER Owner's Manual
  1. Manuals
  2. Brands
  3. Xterra Manuals
  4. Fitness Equipment
  5. EGR200 ROWER
  6. Owner's manual

Xterra EGR200 ROWER Owner's Manual

Hide thumbs

Advertisement

Quick Links

FITNESS

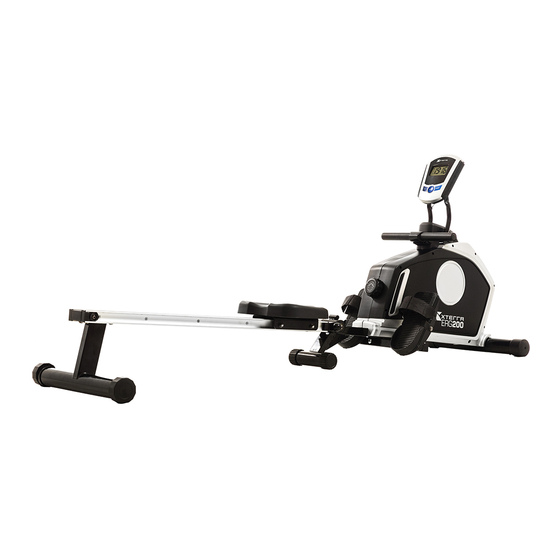

EGR200 ROWER
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ROWER

Advertisement

loading

Related Manuals for Xterra EGR200 ROWER

Summary of Contents for Xterra EGR200 ROWER

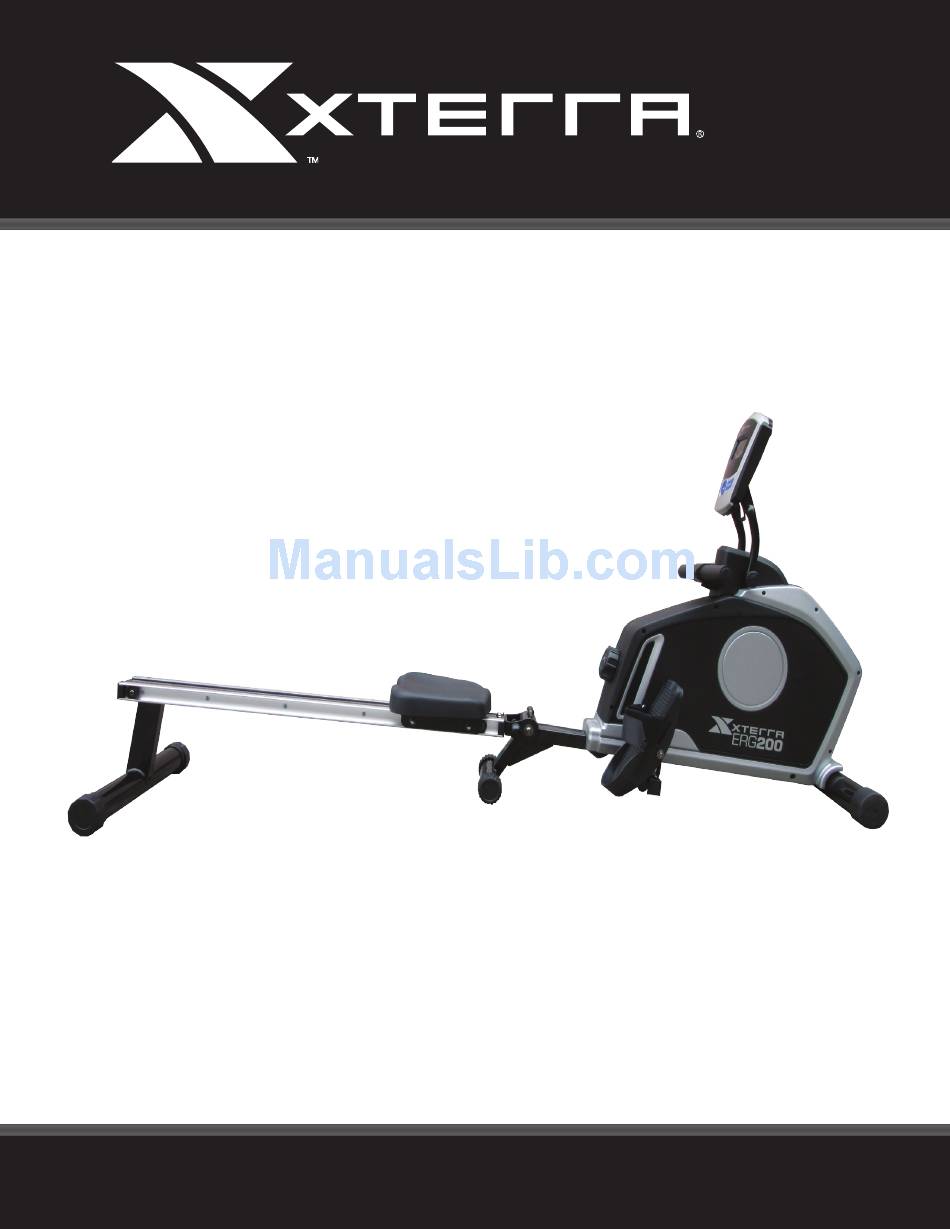

  • Page 1 FITNESS EGR200 ROWER OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ROWER...

  • Page 2: Table Of Contents

    XTERRA Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come. If you have questions, or if parts are missing or damaged, or you require customer service, call (870) 333-5500.

  • Page 3: Product Registration

    Manufacture’s One-Year Limited Warranty Your Xterra Rower Machine is warranted for one year from the date of purchase against defects in material when used for the purpose intended, under normal conditions and provided it receives proper care. Any part found defective or missing will be sent at no cost when returned in accordance with the terms of this warranty.

  • Page 4: Important Safety Instructions

    Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING - To reduce the risk of burns, fire electric shock, or injury to persons: 1.

  • Page 5: Before You Begin

    Before you begin Thank you for selecting our revolutionary Xterra ERG200 Fitness Rower. A rower is an effective exercise for increasing cardiovascular fitness, building endurance, and toning the body. Our fitness rower provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

  • Page 6: Erg200 Assembly Instructions

    ERG200 Assembly Pack Checklist Part No. Description Q’TY Main Frame Front Stabilizer Monitor Rear Stabilizer Seat Left Pedal Right Pedal Pedal Support Tube Sliding Rail Hardware Bag Manual ERG200 Rower...
  • Page 7 ERG200 Assembly Pack Checklist Part No Description Q’ty Allen Bolt M8*75 End Caps Curved Washer Φ8*Φ20 Spring Washer Φ8 Allen Screw M6*12 Washer Φ6*Φ17 Axle for Pedal Carriage Bolt M8*45 Domed Nut M8 Plastic Washer Allen Screw M8*20 Allen Screw M8*16 Washer Φ8*Φ17 Box Wrench Allen Key 4mm...
  • Page 8 ERG200 Assembly Instructions Stabilizers, Console Mast & Console Hardware Step 1 2 Allen Bolts (#2) 2 Spring Washers (#7) 2 Curved Washers (#6) 1. Attach the front stabilizer (3) to the main frame (1). Secure using two allen bolts (2), two curve washers (6) and two spring washers (7).
  • Page 9 Attaching Pedals Hardware Step 2 2 Carriage Bolt (#19) Left Pedal (#14L) Right Pedals (#14R) 2 Axle for Pedal (15) 2 Allen Bolt (#12) 2 Washers (13) 1. Attach the pedal support tube (17) to the bottom of main frame (1).
  • Page 10 Attaching Sliding Rail Frame Hardware Step 3 10 Allen Bolt (#4) 10 Washers (#25) 4 Allen Bolt (#23) 1. Insert the sliding rail (26) to the u type connect tube (58). Secure using four sets of allen bolt (24) and washer (25) on the bottom , two sets of allen bolt (24) and washer (25) on the top.
  • Page 11 Folding Rower Hardware Step 4 1. Pull out the lock pin (55) and lift up the sliding rail to unfold the rower. ERG200 Rower...

  • Page 12: Operation Of Your Console

    Operation of Your Console ERG200 Console Key Functions BUTTONS: MODE: Press to select the desired function between: Scan, Time, Count, Calories and Total Count. SET: Press to set the values of time, count and calories RESET: Press to reset your function value to zero. ERG200 Rower...

  • Page 13: Program Operation

    Functions TIME: Display your elapsed workout time up to 99:59 COUNT: Accumulates total working strides during your workout from 0 up to 9999. CALORIE: Displays the cumulative calories burned at any given time during your workout up to 999 kcal. This data is a rough guide for comparison of different exercise session which can- not be used as medical treatment ) TOTAL COUNT: Dislplays the total cumulative number of strides NOTE:...

  • Page 14: Trouble Shooting

    Trouble Shooting Problem Cause Solution Battery not Installed Install Battery Monitor does not display Ensure the computer wires Computer Wires not con- are connected properly at nected the upright and computer Ensure the computer wires Sensor wire not connected are connected properly at the upright and the computer No speed or distance Sensor wire not working...

  • Page 15: Manufacturer's Limited Warranty

    Effective MAY 25, 2016 - ROWER LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use Rower parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’...
  • Page 16 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611 www.xterrafitness.com ©2016 All RIghts Reserved. ERG200 Owner’s Manual...
