FITNESS

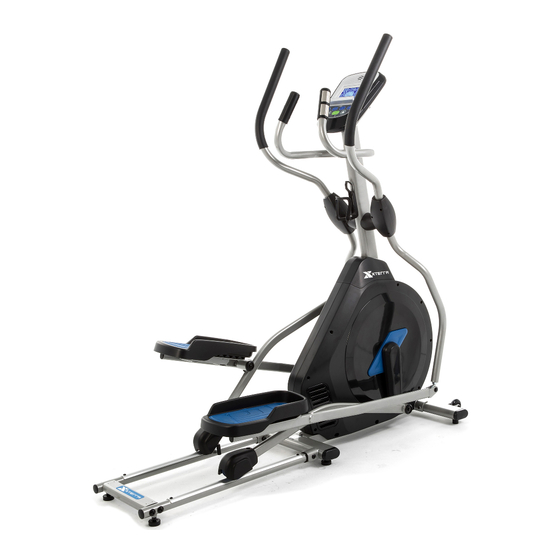

FS380 ELLIPTICAL
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS380 ELLIPTICAL and is the answer not in the manual?

Questions and answers

Related Manuals for Xterra FS380 ELLIPTICAL

Summary of Contents for Xterra FS380 ELLIPTICAL

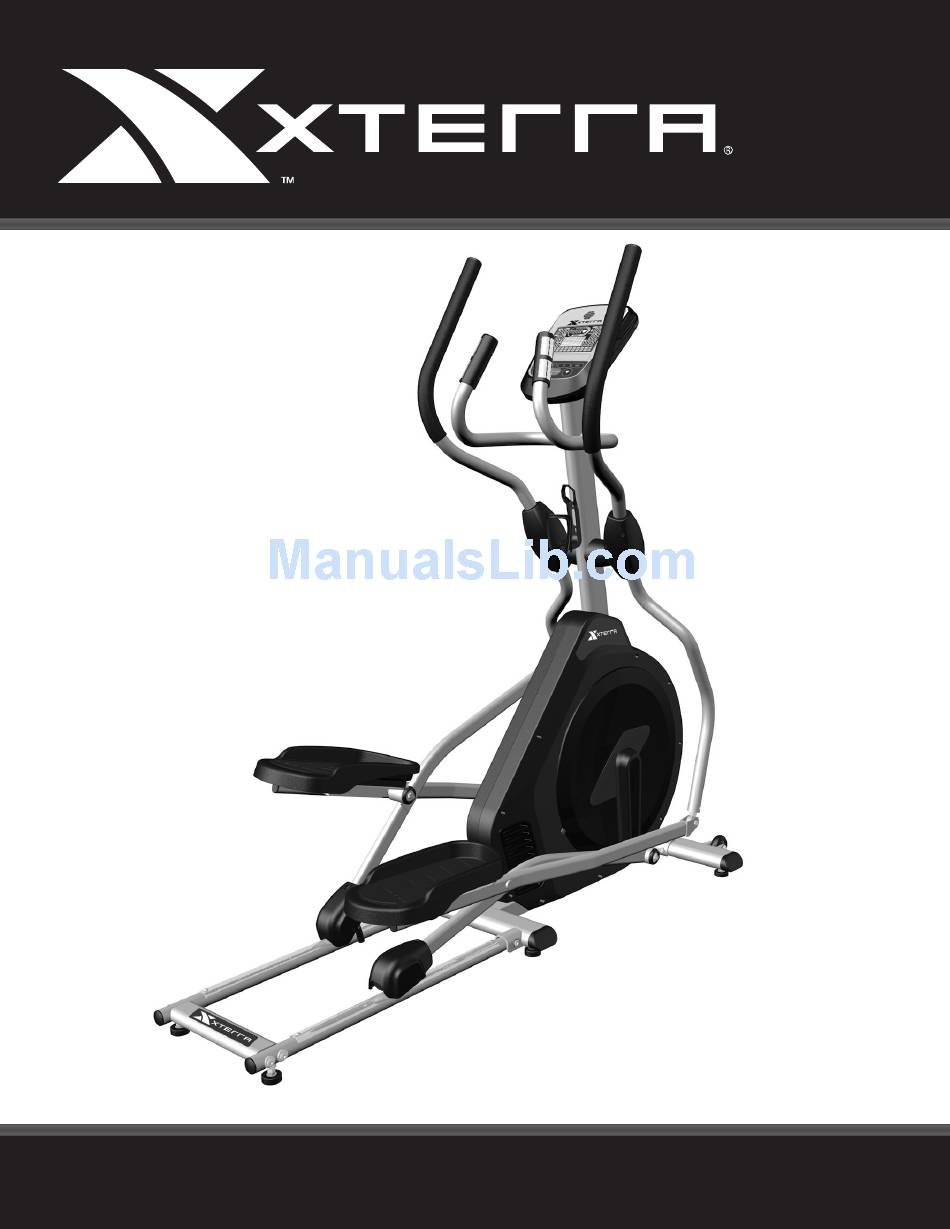

  • Page 1 FITNESS FS380 ELLIPTICAL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL...

  • Page 3: Table Of Contents

    Table Of Contents Product Registration Important Safety Instructions Important Electrical Instructions Important Operation Instructions FS380 Assembly Instructions Operation of Your Console General Maintenance Manufacturer’s Limited Warranty WARNING THIS PRODUCT MAY CONTAIN A CHEMICAL KNOW TO THE STATE OF CALIFORNIA TO CANCER, BIRTH DEFECTS, OR OTHER REPRODUCTIVE HARM. ATTENTION THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THIS APPLICATION.

  • Page 4: Product Registration

    XTERRA Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come. If you have questions, or if parts are missing or damaged, or you require customer service, call (870)336-4286.

  • Page 5: Important Safety Instructions

    User Weight Limit: 300 lbs. Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! FS380 Elliptical...

  • Page 6: Important Electrical Instructions

    These distractions may cause you to lose balance, resulting in serious injury. • Always hold on to a handlebar while making control changes. Transportation The elliptical is equipped with transport wheels, which are engaged when the rear of the elliptical is lifted. FS380 Elliptical...

  • Page 7: Fs380 Assembly Instructions

    #105. 3/8" × 19 × 1.5T #112. 5/16" × 23 × 1.5T Flat Washer (4 pcs) Flat Washer (2 pcs) Curved Washer (2 pcs) #113. 3/8" × 23 × 2.0T #114. Ø10 × 2T Curved Washer (6 pcs) Spring Washer (2 pcs) FS380 Elliptical...
  • Page 8 #76. 5/16" × 3/4" Curved Washer (6 pcs) Hex Head Bolt (6 pcs) Hardware Step 4 (not shown at actual size) #86. 3.5 × 12mm #84. M5 × 15mm Sheet Metal Screw (6 pcs) Phillips Head Screw (4 pcs) FS380 Elliptical...

  • Page 9: Assembly Tools

    FS380 Assembly Pack Checklist Assembly Tools #122. Combination M6 Allen Wrench & Phillips Head Screw Driver (1 pcs) #120. Phillips Head Screw Driver (1 pcs) #118. 12/14m/m_Wrench (1 pcs) #119. 13/14m/m_Wrench (1 pcs) FS380 Elliptical...
  • Page 10 FS380 Assembly Instructions Assembly Instructions Console Mast & Front Stabilizer Rear Rail, Console Mast & Console FS380 Elliptical...
  • Page 11 ) , Place console on the fixed tablets of Console Mast ; then screw up with 4 Phillips Head Screw (83) by Phillips Head Screw Driver (120) (Note : Make sure the wires are inserted into the riser. Do not pinch the wire.) FS380 Elliptical...
  • Page 12 Connecting Arm (L) by (119) and (118). Fixed inside of the fish eye fixed tablets of Lower Handle Arm (R) (8) into Lower Handle Bar (R) (11). Bar (L) . Same way to screw up Connecting Arm (R) (8) into Lower Handle Bar (R) (11) FS380 Elliptical...
  • Page 13 Right Lower Handle Bars (10 & 11) with 6 Hex Head Bolts (76) and 6 Bars (10 & 11) with 6pcs of 5/16" × UNC18 × 3/4"_Hex Head Bolts(76) and 6pcs of Ø8 × 23 × Curved Washers (112) by using the Wrench (118). 1.5T_Curved Washer(112) by using the 12.14m/m_Wrench (118). FS380 Elliptical...
  • Page 14 Driver (120). Install them the way for the right side on handle bar covers (71) and (72). 3. Knocked 4 Ø40 × Ø80_Oval End Cap(45) into Main Frame 4 corner by plastic hammer. 3. Hammer 4 Oval End Cap (45) into Main Frame 4 corner by plastic hammer. FS380 Elliptical...

  • Page 15: Operation Of Your Console

    LOOP (Lap): 0~99 (30 Bars -1 Loop) DISTANCE: 0.0~99.99 km/miles Heart Rate : 0, 40~240 WATT: 0~999 W Target Heart Rate: 50%, 60%, 70%, 80%, 90% Target LEVEL: Profiles: 8x8 segments RPM: 0~999 String Display: Alphabet x12 CALORIES: 0~9999 FS380 Elliptical...

  • Page 16: Console Operation

    H.R.C or User Define program (fig. 7 ~ fig. 15) and press “SET” button to enter. Fig. 7 Fig. 8 Fig. 9 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15 Fig. 13 Fig. 14 Fig. 15 FS380 Elliptical...
  • Page 17 (d). During the workout, pressing UP/DOWN button changes the resistance load. (e). Since there is only 8x8 format for the Profile, the profile rolls from left to right after start as the workout goes on. Fig. 20 Fig. 20 FS380 Elliptical...
  • Page 18 (e). Since there is only 8x8 format for the Profile, the profile rolls from left to right after start as the (e). Since there is only 8x8 format for the Profile, the profile rolls from left to right after start as the workout workout goes on. goes on. Fig. 23 Fig. 23 Fig. 23 FS380 Elliptical...
  • Page 19 30 seconds. and the console stops automactically after 30 seconds. every second and the console stops automactically after 30 seconds. Fig. 25 Fig. 26 Fig. 27 Fig. 25 Fig. 26 Fig. 27 FS380 Elliptical...
  • Page 20 ”INPUT HEART”to remind the user to input H. R. signal (Fig. 40). Fig. 32 Fig. 33 Fig. 34 Fig. 32 Fig. 33 Fig. 34 Fig. 35 Fig. 36 Fig. 37 Fig. 35 Fig. 36 Fig. 37 Fig. 38 Fig. 39 Fig. 40 Fig. 38 Fig. 39 Fig. 40 FS380 Elliptical...
  • Page 21 45. During the test, if “STOP” is pressed and quit, LCD will display “FAILURE” as shown “FAILURE” as shown in fig. 46. in fig. 46. in fig. 46. in fig. 46. Fig. 44 Fig. 45 Fig. 46 Fig. 44 Fig. 45 Fig. 46 Fig. 44 Fig. 45 Fig. 46 FS380 Elliptical...

  • Page 22: Heart Rate

    80% or 60%, respectively, of your MHR on a schedule approved by your physician. Consult your physician before participating in any exercise program. FS380 Elliptical...
  • Page 23 In this condition, your pace will feel difficult. Again, this will show up in your RPE and you will train at the proper level for that day. FS380 Elliptical...

  • Page 24: General Maintenance

    Be aware that even with the tightest mechanical tolerances there still could be a slight amount of play between some parts. This inherent play can result in slight noises during use such as clicks and small thumps. Please expect that the elliptical will not be completely silent. FS380 Elliptical...
  • Page 25 User Notes: FS380 Elliptical...

  • Page 26: Manufacturer's Limited Warranty

    Effective February 14, 2018- ELLIPTICAL LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use elliptical parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’...
  • Page 27 FS380 Elliptical...
  • Page 28 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611 www.xterrafitness.com FS380 Elliptical ©2018 All Rights Reserved. FS380 Owner’s Manual...
