Summary of Contents for Xterra FB350

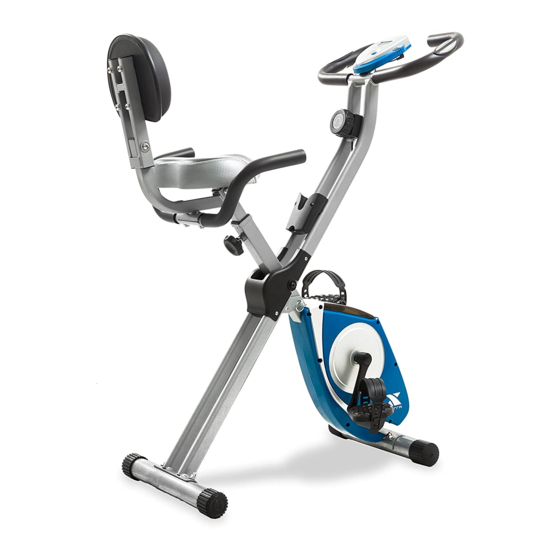

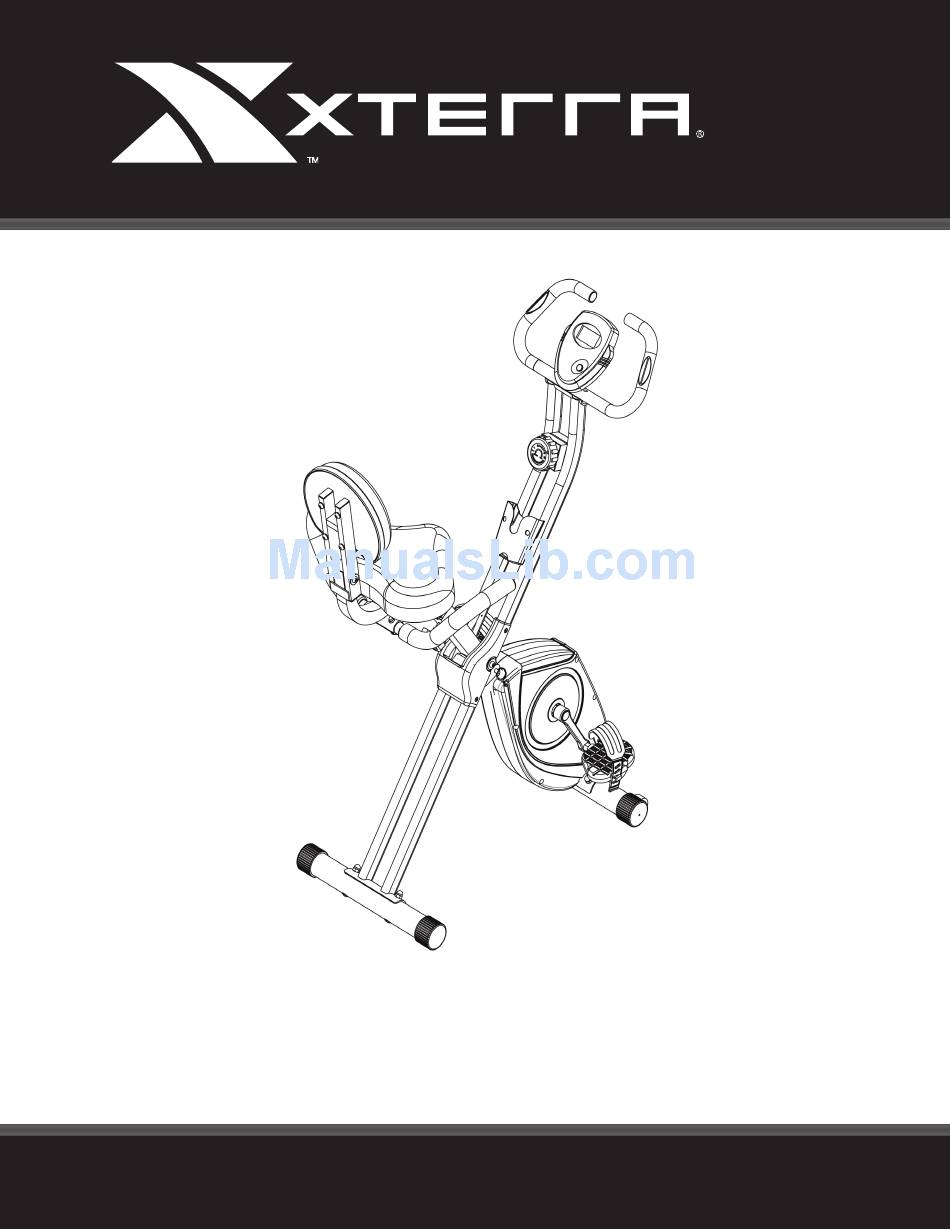

- Page 1 FITNESS FB350 Folding Bike OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW FOLDING BIKE...
-
Page 3: Table Of Contents
Congratulations On Your New Folding Bike and Welcome to the XTERRA Fitness Family! Thank you for your purchase of this quality Folding Bike from XTERRA Fitness. Your new Folding Bike has been manufactured by one of the leading fitness manufacturers in the world. -
Page 4: Product Registration
Manufacture’s One-Year Limited Warranty Your XTERRA Folding Bike is warranted for one year from the date of purchase against defects in material when used for the purpose intended, under normal conditions and provided it receives proper care. Any part found defective or missing will be sent at no cost when returned in accordance with the terms of this warranty. -
Page 5: Important Safety Instructions
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! CAUTION!! Please be careful when unpacking the carton. FB350 Folding Bike... -
Page 6: Before You Begin
Bike provides an impressive selection of features designed to make your workouts at home more effective and enjoyable. For your benefit, read this manual carefully before you use the FB350 Fitness Folding Bike. To help us assist you, note the product model number and serial number before contacting us. Before reading further, please familiarize yourself with the parts that are labeled in the drawing below. -
Page 7: Fb350 Assembly Instructions
FB350 Assembly Pack Checklist Part No. Description Q’TY Main Frame Seat Post Front Handlebar Set Front Stabilizer Rear Stabilizer Seat Computer Pedal (L/R) 74/75 Back Cushion Support Tube Set Rear Handlebar Back Cushion Remote Control Holder Hardware Bag Manual FB350 Folding Bike... - Page 8 FB350 Assembly Pack Checklist Part No Description Q’ty Club Knob Nylon Nut M8 Curved Washer φ8.3xφ22 Carriage Bolt M8x50L Allen Screw M8x40L Flat Washer φ8.3xφ25 Spring Washer Allen Screw M8x45L Allen Key Hex Head Wrench Note: Above parts are all needed to assemble this machine. Before you start to assemble, please check the hardware packing to make sure they are included.
- Page 9 FB350 Assembly Instructions Front Stabilizer and Rear Stabilizer Hardware Step 1 Pre-assembled on Main Frame: 1 Lock pin (#11) Pre-assembled on Front & Rear Stabilizer: 4 Curved washers (#13) 4 Domed nuts (#14) 1. Pull out the lock pin (11) from the main frame (01) and adjust main frame (01) to the correct position then insert lock pin (11) to tighten the main frame (01).
- Page 10 (15). The right pedal is on the right hand side of the cycle as you sit on it. 2. Note that the right pedal (09R) should be threaded on clockwise and the left pedal (09L) on counter-clockwise. FB350 Folding Bike...
- Page 11 (07).Attach the seat (07) to the seat post tube (03), tighten with 3 flat washers (16) and 3 nylon nuts (17). 2. Insert the seat support tube (03) to the main frame (01), fasten with a club knob (10). FB350 Folding Bike...
- Page 12 (75), tighten using 4 spring washers (84) and 4 allen screws (80). 3. Attach the rear handlebar (76) to the back cushion adjust- ment set (74), tighten using 2 curved washers (13) and 2 allen screws (81). FB350 Folding Bike...
- Page 13 Handlebar Hardware Step 5 Pre-assembled on Main Frame: 2 Allen Screws (#12) 1. Screw off 2 allen screws (12) from main frame (01). Attach handlebar (04) onto the main frame (01), tighten using 2 allen screws (12). FB350 Folding Bike...
- Page 14 Console 1. Insert the computer (08) to the handlebar (04), connect the upper sensor wire (19) with the computer (08). 2. Plug the hand pulse wire (18) into the hole on the back of the computer (08). FB350 Folding Bike...
- Page 15 Remote-Control Holder Hardware Step 7 Pre-assembled on Main Frame: 2 Allen Screws (#82) 1. Remove 2 screws (82) from the main frame, attach remote- control holder (89) onto the main frame, and tighten using 2 screws (82). FB350 Folding Bike...
-
Page 16: Operation Of Your Console
Operation of Your Console FB350 Console Key Functions FUNCTIONAL BUTTON: MODE – Push down to select functions. – Push down to reset time, distance, calories, ODO, and pulse for 4 seconds. FB350 Folding Bike... -
Page 17: Program Operation
3. The monitor will be auto-powered on when starting to exercise push button w/signal in. 4. The monitor will automatically start calculating when you start to exercise and will stop cal- culating when you stop exercising for 4 seconds FB350 Folding Bike... - Page 18 • Should a part become defective, replace it immediately. Do not allow use of the equipment until it has been repaired. Cleaning A damp cloth is sufficient to clean most surfaces of this unit. Be careful not to drip water on the monitor. A mild liquid soap may be added if needed. FB350 Folding Bike...
-
Page 19: Manufacturer's Limited Warranty
Effective August 4, 2016 - Folding Bike LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use Folding Bike parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’... - Page 20 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611 www.xterrafitness.com FB350 Folding Bike ©2016 All RIghts Reserved. FB350 Owner’s Manual...
