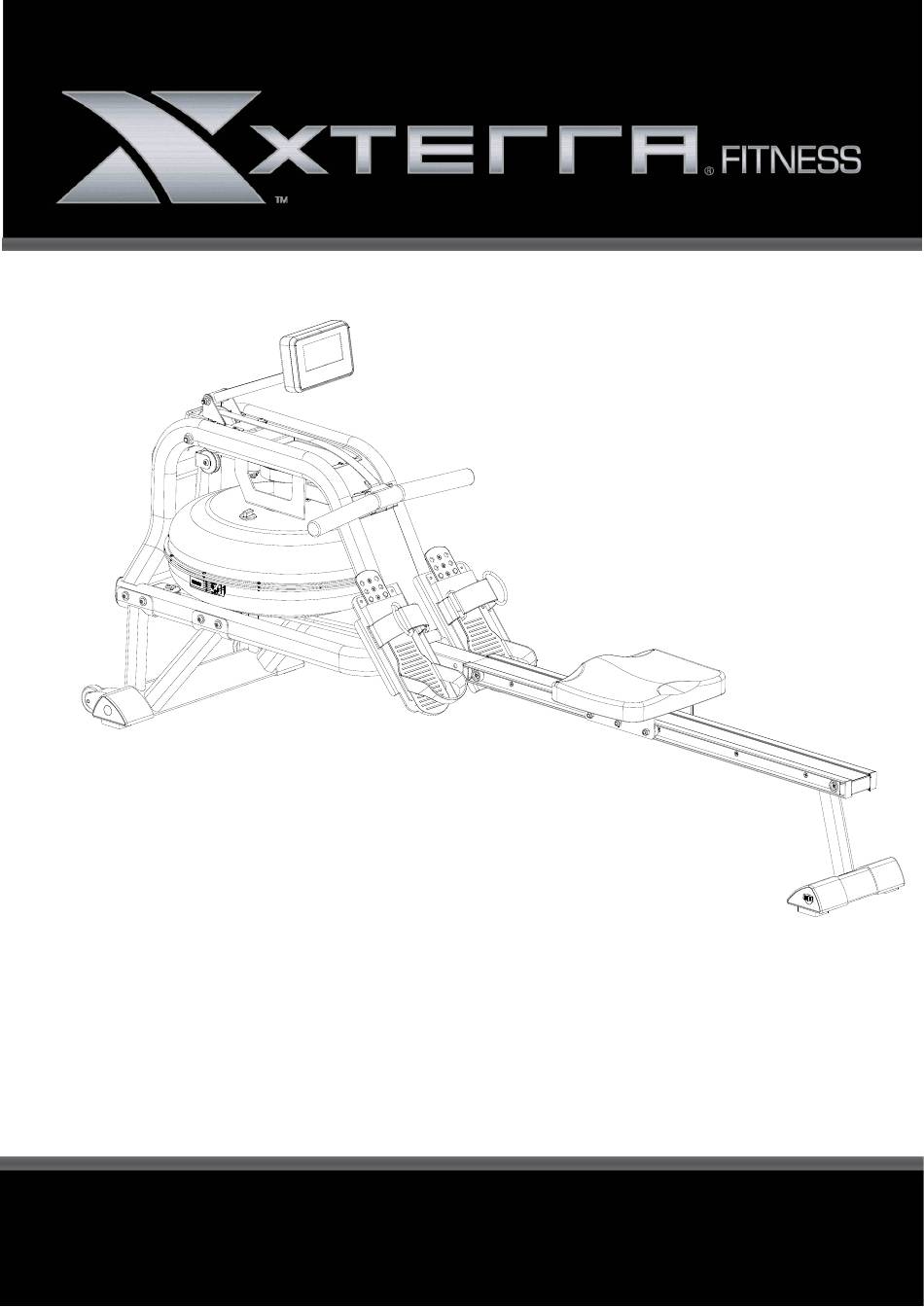

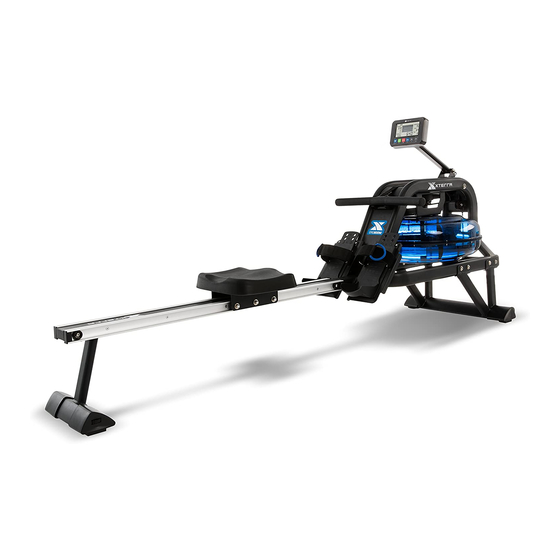

ERG600W ROWER
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ROWER

Advertisement

loading
Need help?

Need help?

Do you have a question about the ERG600W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xterra ERG600W

Summary of Contents for Xterra ERG600W

  • Page 1 ERG600W ROWER OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ROWER  ...

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Instructions ERG600W Assembly Instructions Operation of Your Console Trouble Shooting Part List ATTENTION THIS ROWER IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.

  • Page 3: Important Safety Instructions

    Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING - To reduce the risk of burns, fire electric shock, or injury to persons: 1.
  • Page 4 For your benefit, read this manual carefully before you use the ERG600W Fitness Rower. To help us assist you, note the product model number and serial number before contacting us. Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

  • Page 5: Erg600W Assembly Instructions

    ERG600W Assembly Pack Checklist NO.1 NO.2 NO.4 NO.25 NO.26 NO.46 NO.3 NO.35 NO.82 NO.83 water-purification NO.77 NO.76 NO.36 tablet 3   ...
  • Page 6 ERG600W Assembly Pack Checklist PART NO. DESCRIPTION Q’TY Main Frame Front Stabilizer Rear Stabilizer Slide Rail Left End Cap Right End Cap Meter Rail Endcap L Rail Endcap R Stopper Seat Funnel Pumping Siphon Water-purification tablet User manual Hardware parts Note: Above parts are all needed to assemble this machine.

  • Page 7: Stopper

    ERG600W Assembly Pack Checklist S t o p p e r 2pcs #58 M8*15 4pcs #60 M8*18 14pcs #66 M8*15 4pcs #68 M4*12 2pcs #71 OD20*ID8.5*1.5 16pcs S5 1pc #75 S13-17 1pc e n d c a p L #82 Rail R a i l e n d c a p R #87 OD16*ID8.5*1.5 2pcs...
  • Page 8 ERG600W Assembly Instructions Rear Stabilizer #66 M8*15 4pcs #71 OD20*ID8.5*1.5 4pcs #75 S13-17 NOTE: We recommend having 2 people to assemble the product. 1. Turn over the Slide Rail (No. 3) as above. Attach the Rear Stabilizer (No.4) to the Slide Rail with 4 Washers (No.71) and 4 Outer Hex Screws (No.66).
  • Page 9 Front Stabilizer Endcaps #68 M4*12 2pcs S13-17 1. Attach L & R End Caps (No.25 & 26) to Front Stabilizer (No.2). Then tighten with 2 Cross Screws (No.68) using the Spanner (No.75). 7   ...
  • Page 10 Attaching the Front Stabilizer #60 M8*18 8pcs #71 OD20*ID8.5*1.5 8pcs 1. Turn the Main Frame (No.1) upright. Attach the Front Stabilizer (No.2) to Main Frame (No.1) using 8 Washers (No.71) and 8 Screws (No.60). Tighten with Allen Wrench (No.74). 2. You can put 3~4 screws into the holes first, and start tightening by hand. After all the screws are put in, then tighten with the tool.
  • Page 11 Seat and Rail S t o p p e r 2pcs # 5 8 M 8 * 1 5 4 p c s # 6 0 M 8 * 1 8 2 p c s # 8 7 O D 1 6 * I D 8 . 5 * 1 . 5 2 p c s # 7 4 R a i l e n d c a p L 1 p c...
  • Page 12 Console # 6 0 M 8 * 1 8 4 p c s # 7 1 O D 2 0 * I D 8 . 5 * 1 . 5 4 p c s # 7 4 1. Attach Console(No.46) to Main Frame (No.1) using 4 Washers (No.71) and 4 Screws (No.60).
  • Page 13 How to Fill and Empty the Tank 1. Remove the Fill Plug (No.33) from the Upper Tank Cover (No.12). 2. To fill tank with water, refer to Fig. A. Insert the Funnel (No.77) into the tank, then use a cup or the Siphon Pump (No.76) and a bucket to fill the tank.
  • Page 14 Adjustment Guide There are 3 hooks (A, B, C) for the bungee cord, located on the inside of the Frame (No.1) under the water tank. If you hook the Bungee Cord (No.39) on to B or C, it increases the assisted return of the mesh belt.
  • Page 15 Adjustment Guide and Storage The pedal strap is adjustable and can be personalized to fit the user’s foot size. To adjust the pedal strap, remove the Velcro end of the strap from the mesh side by pulling it upward and over to the side. Once removed, you may increase the opening of the pedal strap by pulling the mesh end up and to the side.
  • Page 16 Adjustment Guide Adjusting the Balance Adjust the End Caps on the Rear Stabilizer (No.4) of the machine if the machine is unbalanced during use. CAUTION! Moving parts, such as the seat, can crush and cut. Keep hands clear of the Slide Rail during use.

  • Page 17: Operation Of Your Console

    Operation of Your Console ERG600W Console Our computerized display console on the Water Rower allows the user to tailor a personalized workout by monitoring their progress. During a workout, the display console will alternately and repeatedly display the Time, Time/500M, SPM, Distance, Strokes, Total Strokes, Calories Burned and Pulse (all of the above).
  • Page 18 Functions TIME: Set a target time by pressing the UP and/or DOWN buttons (1min ~ 99 min), in 1 minute increments. TIME / 500M: Your average time to reach 500 meters is automatically displayed. SPM: Strokes per minute. DISTANCE: Preset a target value by pressing the UP and/or DOWN buttons (0 ~ 99900meters), 100 meters increments.
  • Page 19 Operation of Your Console 1. Install 2 AA batteries (included) and computer will beep for 2 seconds (Fig.1). Then, the computer will enter into the CLOCK & CALENDAR MODE (Fig.2). 2. The CLOCK will flash. Press UP / DOWN to set the hour. Press ENTER to confirm. Press UP / DOWN to set the minutes.
  • Page 20 Operation of Your Console 1. MANUAL (Fig.4): There are 2 options in MANUAL mode. A. The computer can be set to countdown a different value. When you select MANUAL, the value of TIME will start to flash. Press UP to set the value of TIME to countdown. Press ENTER to confirm it. If you do not want to set the value of time to COUNTDOWN, press ENTER to go to the next function.
  • Page 21 A. Press START button to start and STOP will disappear. USER and PC will display in the matrix (Fig.6). The computer will stop when either user or computer has reached the race distance that was set. Then the matrix displays “PC WIN” or “USER WIN” (Fig.7). B.

  • Page 22: Trouble Shooting

    Trouble Shooting Problem Cause Solution Battery not Installed Install Battery Monitor does not display Ensure the computer wires are Computer Wires not connected connected properly at the upright and computer Ensure the computer wires are connected Sensor wire not connected properly at the upright and the computer No speed or distance...

  • Page 23: Part List

    Part List PART NO. DESCRIPTION Main frame Front Stabilizer Slide Rail Rear Stabilizer Support for computer Support Plate Tank Plate Plate for bushing Handlebar Seat carriage Impeller Upper tank Lower tank Mesh belt wheel Decorate cover Belt wheel Handlebar seat Roller Roller shaft Guide roller...
  • Page 24 PART NO. DESCRIPTION Sensor stand R Bushing Pin Ø6.0*40 Meter Sensor Wire Sensor Holder Magnet Ø10*5 Spacer for mesh belt wheel Short spacer Screw M10*185 Washer OD25*ID10.5*2.0 Screw M8*30 Screw M6*15 Nylon lock nut M8 Nylon lock nut M10 Flat screw M8*15 Screw M10*55 Screw M8*18 Screw M3*20...
