Top Cover (Inside)

a Manual Pocket
Store printer manuals in this pocket.
Ethernet Port
b
Connect an Ethernet cable to this port.
c USB Port
Connect a USB cable to this port. The printer is compatible with Hi-Speed USB connections.
Carrying Handles
d
When carrying the printer, have three people hold it by these handles on the back at both ends.
Grasp these parts on the left and right sides also when moving the printer with the stand attached.
Power Supply Connector
e
Connect the power cord to this connector.

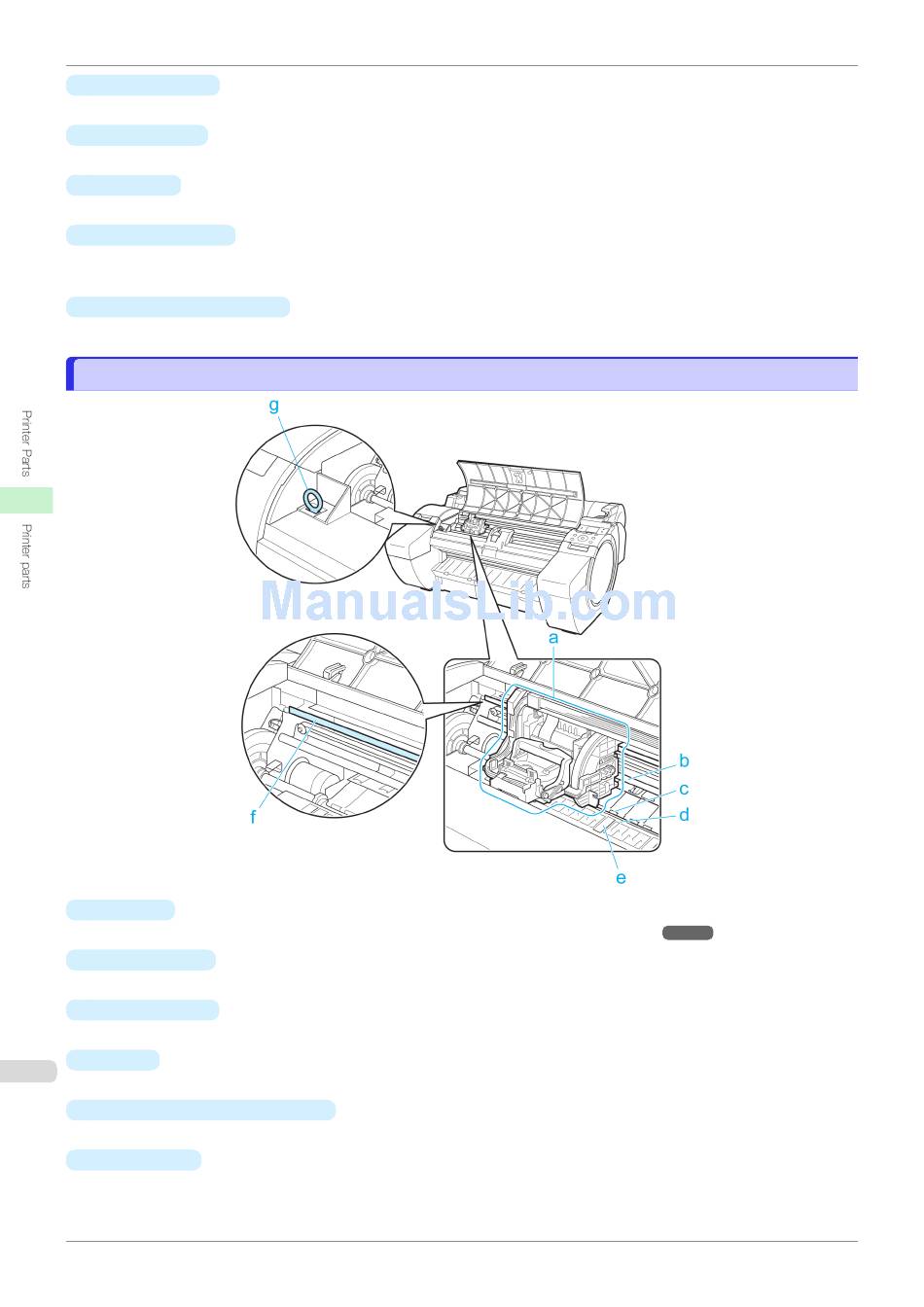

Top Cover (Inside)

Top Cover (Inside)
Carriage
a
Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.")
Carriage Shaft
b
The Carriage slides along this shaft.
c Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
Platen
d
438
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
e Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
Linear Scale
f
The linear scale serves a key role in detecting the Carriage position. Be careful not to touch this part when
cleaning inside the Top Cover or clearing paper jams.
