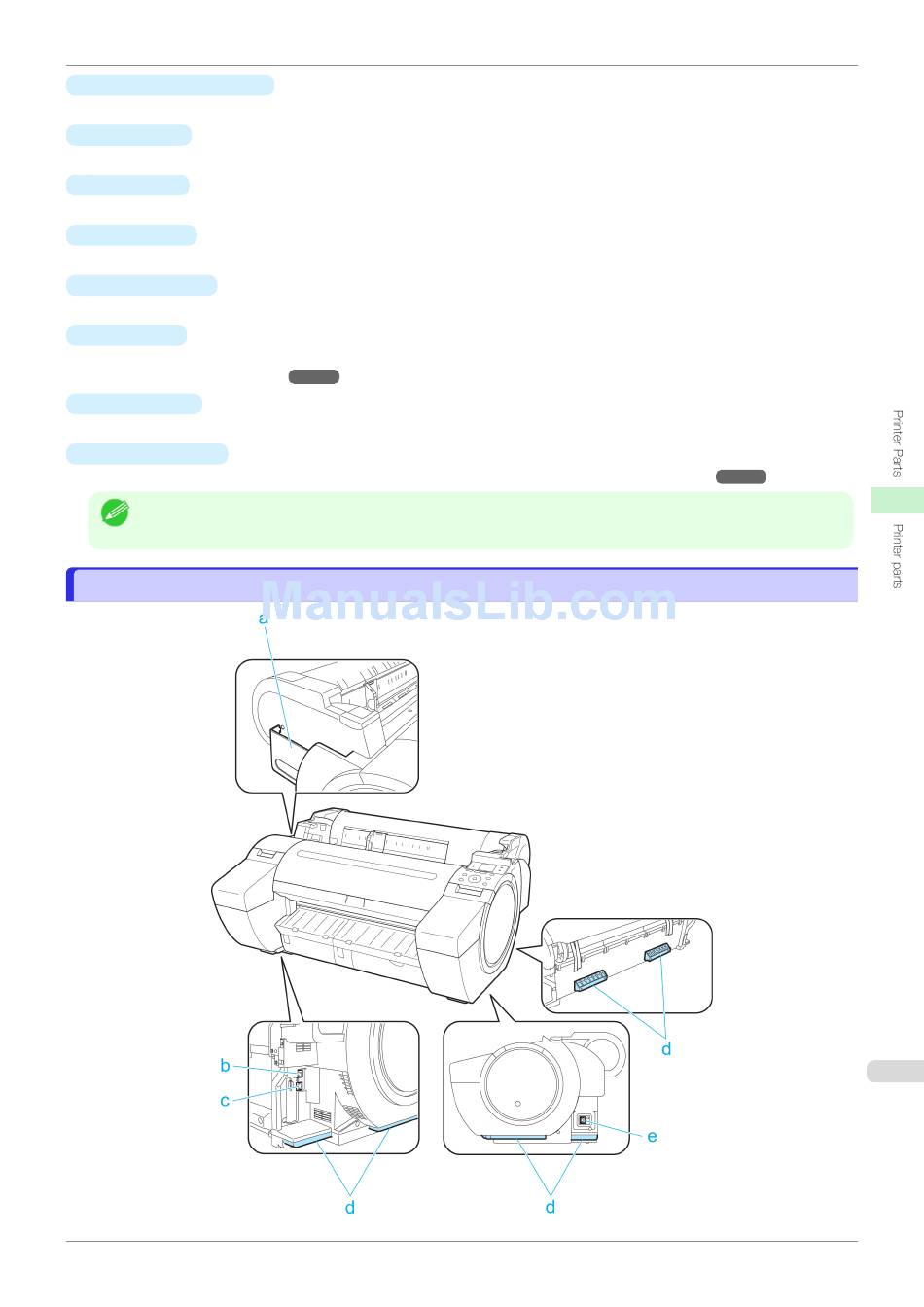

i Maintenance Cartridge
Absorbs ink used for maintenance purposes such as head cleaning. (Replace the cartridge when it is full.)
Cutter Unit
j
A round-bladed cutter for automatic roll cutting.
k Cutter Rail
The Cutter Unit passes over this rail to cut paper.
Output Tray
l
All printed documents are ejected from this slot.
Ejection Guide
m
Supports output paper.
Top Cover
n
Open this cover to install the Printhead and remove any jammed paper from inside the printer, as needed.
(See "Top Cover (Inside).")
Width Guide
o
When loading the sheets , move the guide to match the paper size.
Stand (Optional)
p
A stand that holds the printer. Equipped with casters to facilitate moving it. (See "Stand.")
•
The Stand is normally offered as an optional accessory, but it may be provided as a standard accessory in some
sales regions.
Note

Side

Side

User's Guide
P.438
➔
Side
P.446
➔
