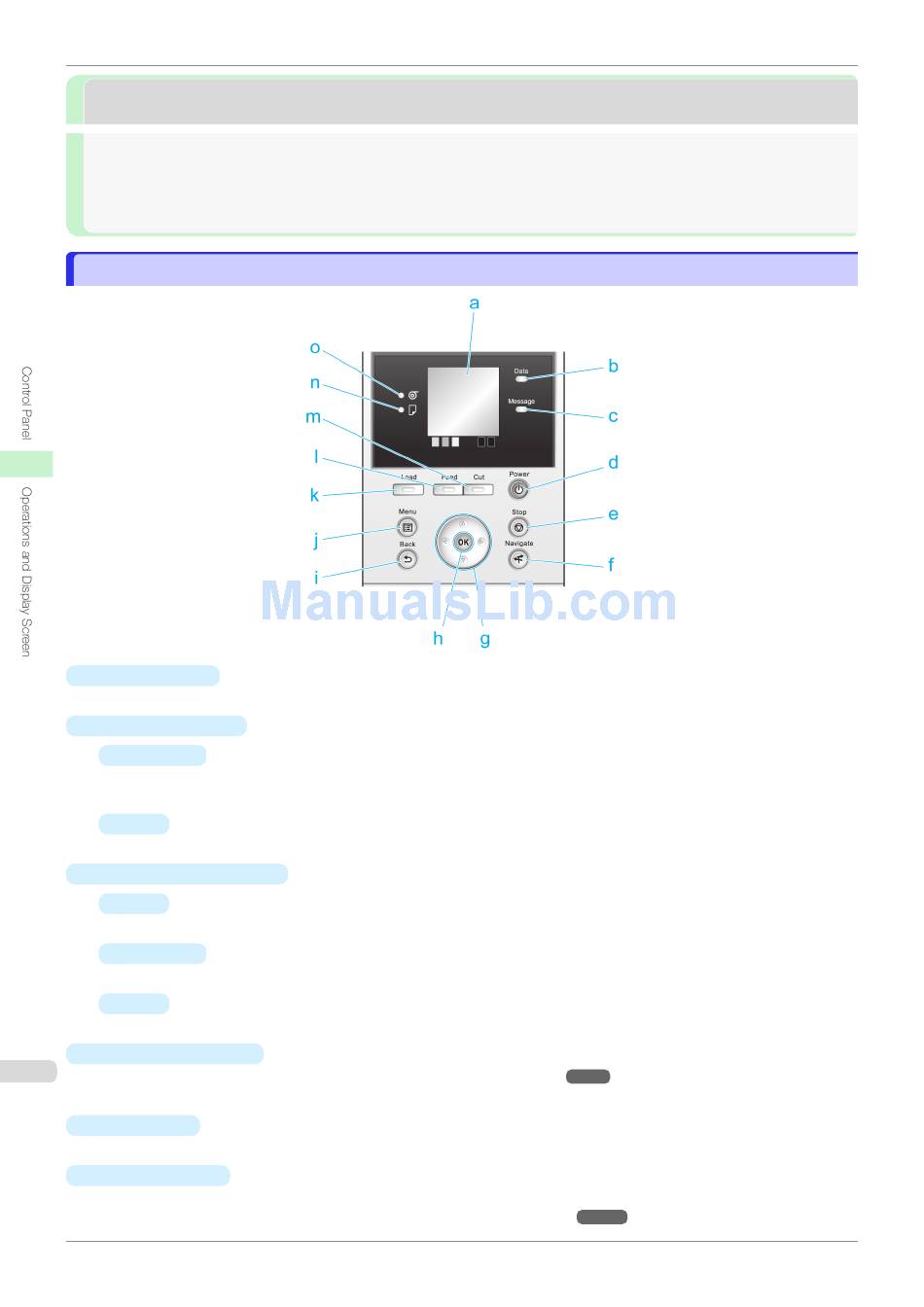

Control Panel
Control Panel
Display Screen
a
Shows printer menus, as well as the printer status and messages.
Data Lamp (green)
b
Flashing
•
During printing, the Data lamp flashes when the printer is receiving or processing print jobs. Otherwise,
this lamp flashes when the print job is paused or the printer is updating the firmware.
Off
•
There are no active print jobs when the Data lamp is off.
Message Lamp (orange)
c
On
•
A warning message is displayed.
Flashing
•
An error message is displayed.
Off
•
The printer is off or is operating normally.
d Power button (green)
400
Turns the printer on and off. (See "Turning the Printer On and Off.")
The Power button is lit when the printer is on or in Sleep mode.
Stop button
e
Cancels print jobs in progress and ends the ink drying period.
Navigate button
f
Enables you to check instructions for loading and removing paper or replacing ink tanks or printheads, as well
as other operations. (See "How to View Instructions with Navigate.")
