Ink Tank Cover (Inside)

a Angle Adjustment Lever
Use this lever to fine-tune the printer to correct misalignment of printed lines.
Printhead
b
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
c Printhead Fixer Lever
Locks the Printhead Fixer Cover.
Printhead Fixer Cover
d
Holds the Printhead in place.

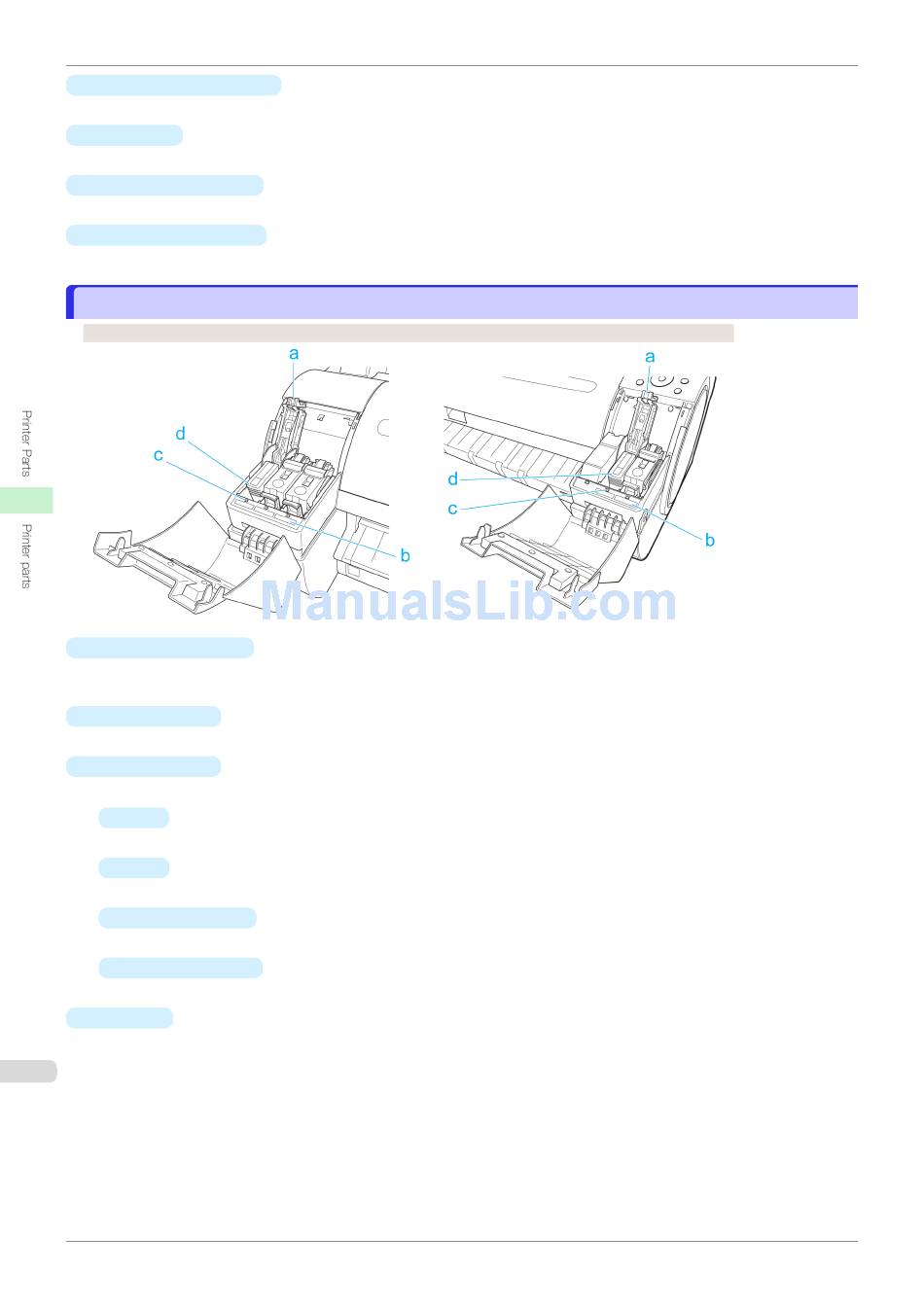

Ink Tank Cover (Inside)

Ink Tank Cover (Inside)
Ink Tank Lock Lever
a
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink
Tank.
Ink Color Label
b
Load an Ink Tank that matches the color and name on this label.
Ink Lamp (Red)
c
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
On
•
The Ink Tank is installed correctly.
• Off
No Ink Tank is installed, or the ink level detection function has been released.
Flashing Slowly
•
Not much ink is left.
Flashing Rapidly
•
There is no ink left.
Ink Tank
d
Cartridges of ink in various colors.
440
Left Side Right Side
iPF685
User's Guide
