Attaching the Roll Holder to Rolls

Attaching the Roll Holder to Rolls
When printing on rolls, attach the Roll Holder to the roll.
Rolls have a two- or three-inch paper core. Use the correct attachment for the paper core. The printer comes
equipped with the 2-Inch Paper Core Attachment installed.

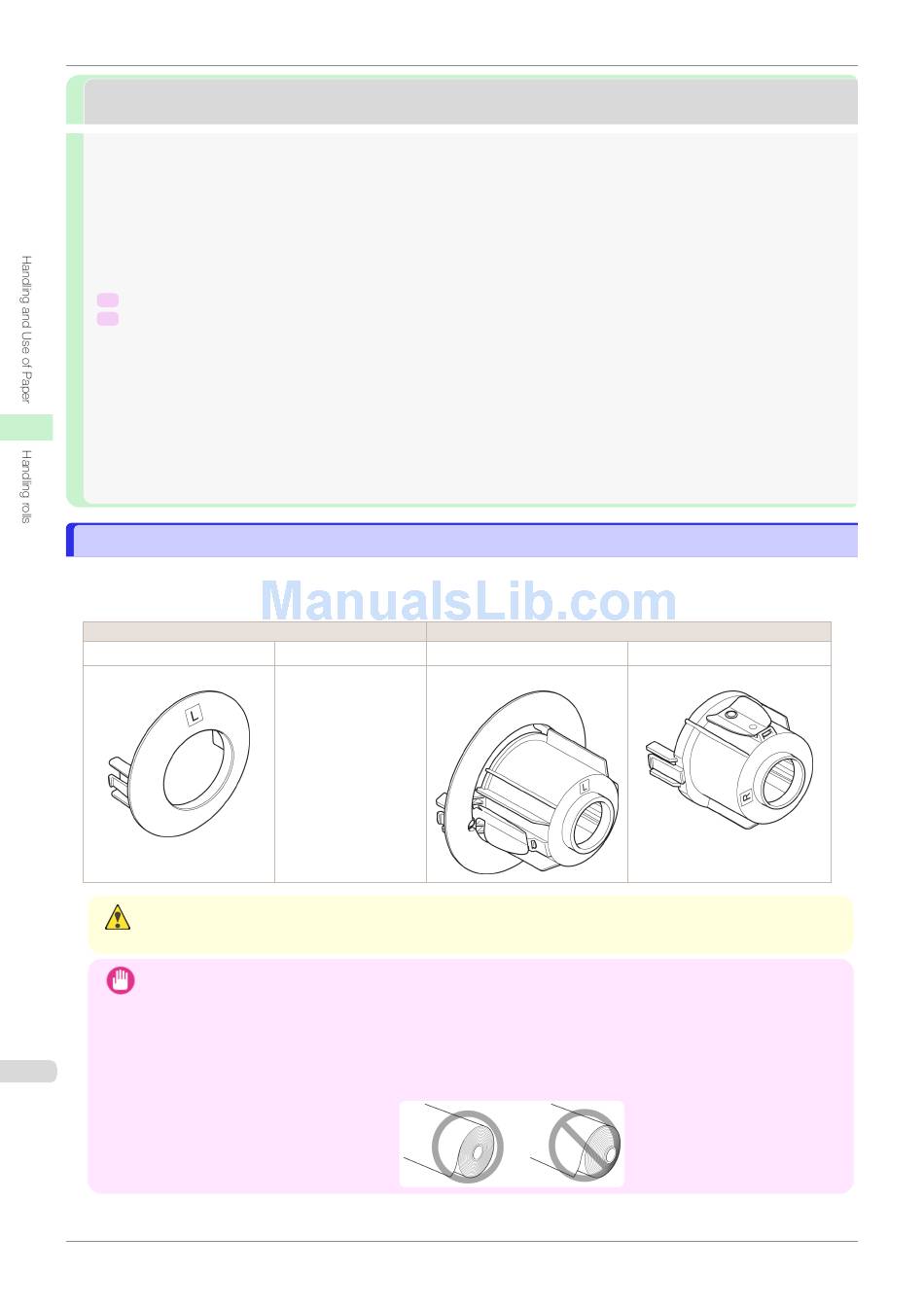

Using Rolls with a 2-Inch Paper Core
Holder Stopper (Left Side)
2-Inch Paper Core Attachment
•
Set the roll on a table or other flat surface so that it does not roll or fall. Rolls are heavy, and dropping a roll may
cause injury.
Caution
•
When handling the roll, be careful not to soil the printing surface. This may affect the printing quality. We recom-
mend wearing clean cloth gloves when handling rolls to protect the printing surface.
Important
•
Use scissors or a cutting tool to cut the edge of the roll paper if it is uneven, dirty, or has tape residue. Otherwise,
it may cause feeding problems and affect the printing quality. Be careful not to cut through any barcodes printed
on the roll.
338
•
Align the edges of the paper on both ends of the roll. Misalignment may cause feeding problems.
Roll Holder (Right Side) Holder Stopper (Left Side)
No Attachment Needed 3-Inch Paper Core Attachment L
Using Rolls with a 3-Inch Paper Core
Roll Holder (Right Side)
3-Inch Paper Core Attachment R
