Installation

Unit: mm

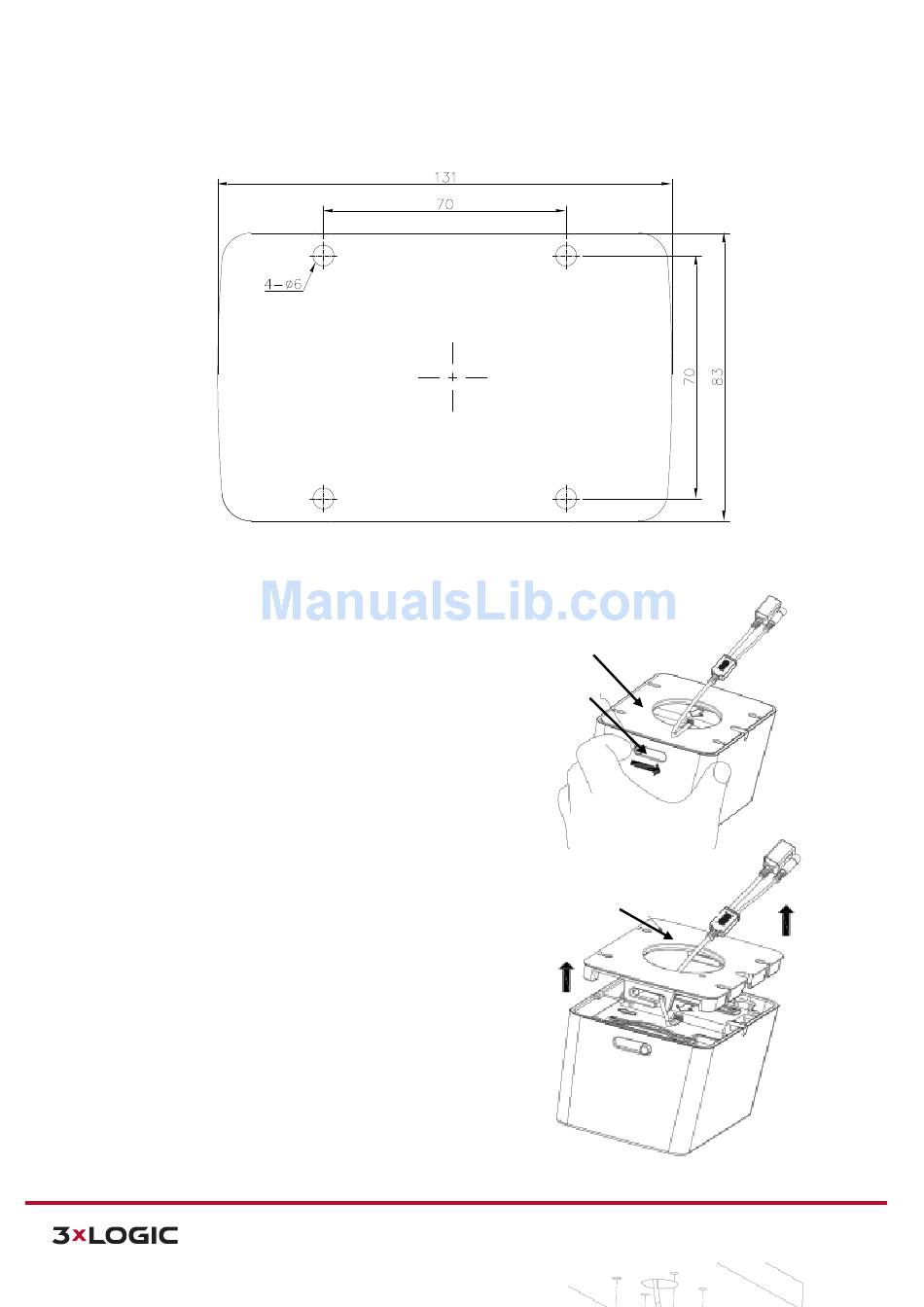

CAUTION: Installation template's image size scale in this installation guide is not 1:1. The correct-size
template design paper can be found inside the package separately.

4.1 Installation without Bracket

Steps:
1. Push the slides on both sides of the device to the
other ends to detach the mount cover from the
body.
2. Separate the mount cover from the body like the
image on the left
3. Drill the holes on the ceiling based on the
installation template, insert the plastic anchors into
the four holes, and align the plastic anchors with
the holes on the mount cover. Then, attach the
mount cover by using the M4x30 screws included in
the package. Tighten the screws for the firm
attachment.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
User Manual | VISIX Time of Flight People Tracking Camera
Mount Cover
Slide
Mount Cover
