6.2 View Video on the Webpage

Type the proper IP address to view the live streaming images through a web browser.
The default username and password is admin / 12345.

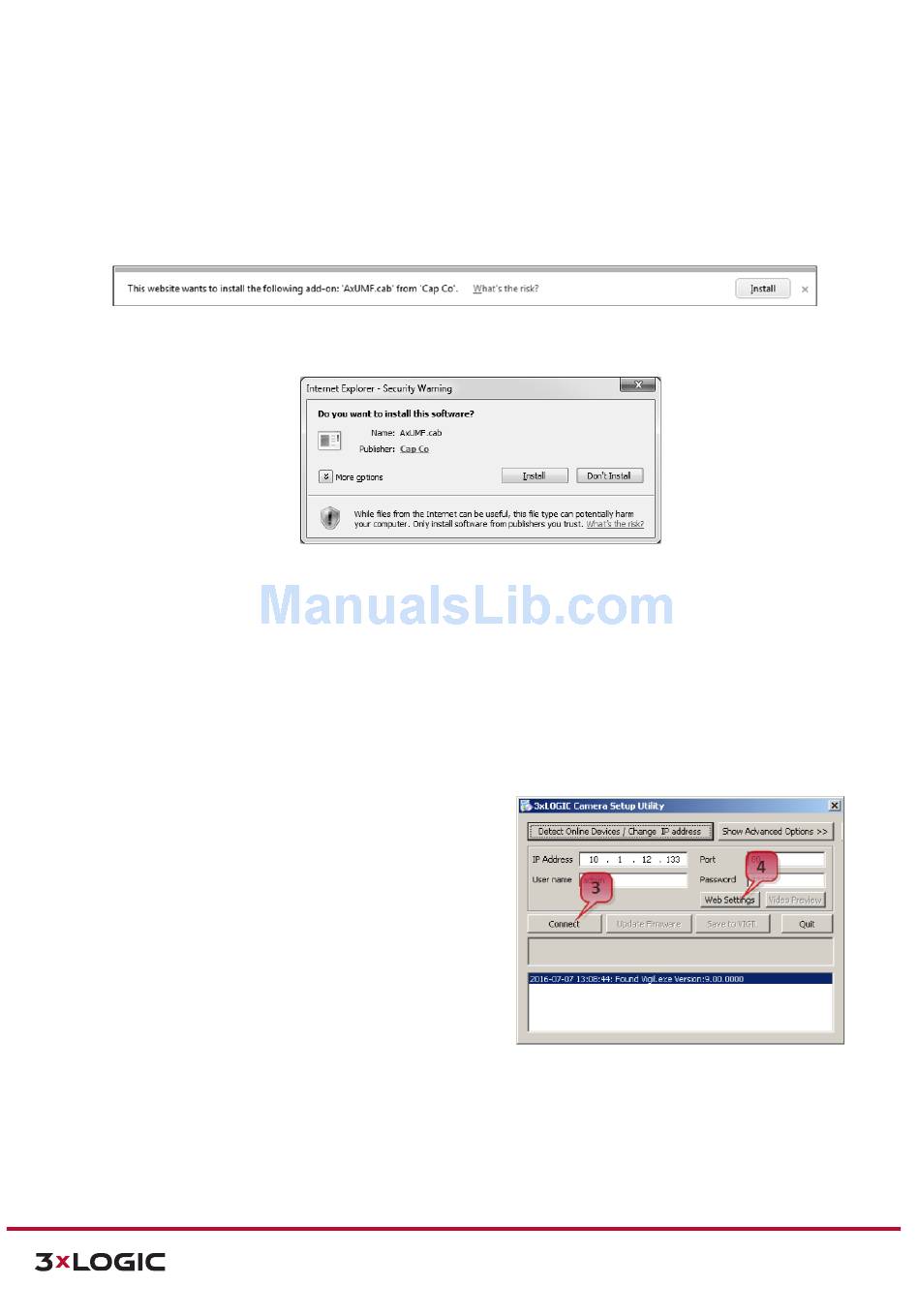

6.2.1 ACTIVEX INSTALLATION

Steps:
1. When the browser asks to install the AxUMF software, click Install to proceed.
2. When the Setup installation pop-up window appears, click Install to proceed with rest of
installations.
NOTE: Depending on system OS and Internet Explorer version, installation experience may differ from one
another. Figures described above are from Windows 7, Internet Explorer 9 environment.

6.3 View Video Using 3xLOGIC Camera (VSXIP) Setup Utility

To access a video preview via the 3xLOGIC Camera Setup Utility, launch the utility and follow the below
instructions.
1. From the utility main window, click the Detect Online Devices/Change IP Address button.
2. Select the VX-VTOF-1 from the list of devices and
click Next.
3. When the utility returns to the main interface,
click the Connect button.
4. Allow sufficient time for the connection to
initialize then click the Web Settings button.
Your default browser will open with a Live video
preview from the camera.
CAUTION: Whether directly accessing the streaming video by entering the IP address into a browser or
taking steps through the 3xLOGIC Camera Setup Utility, ActiveX is required to be installed for Microsoft®
Internet Explorer to access complete configuration privileges.
