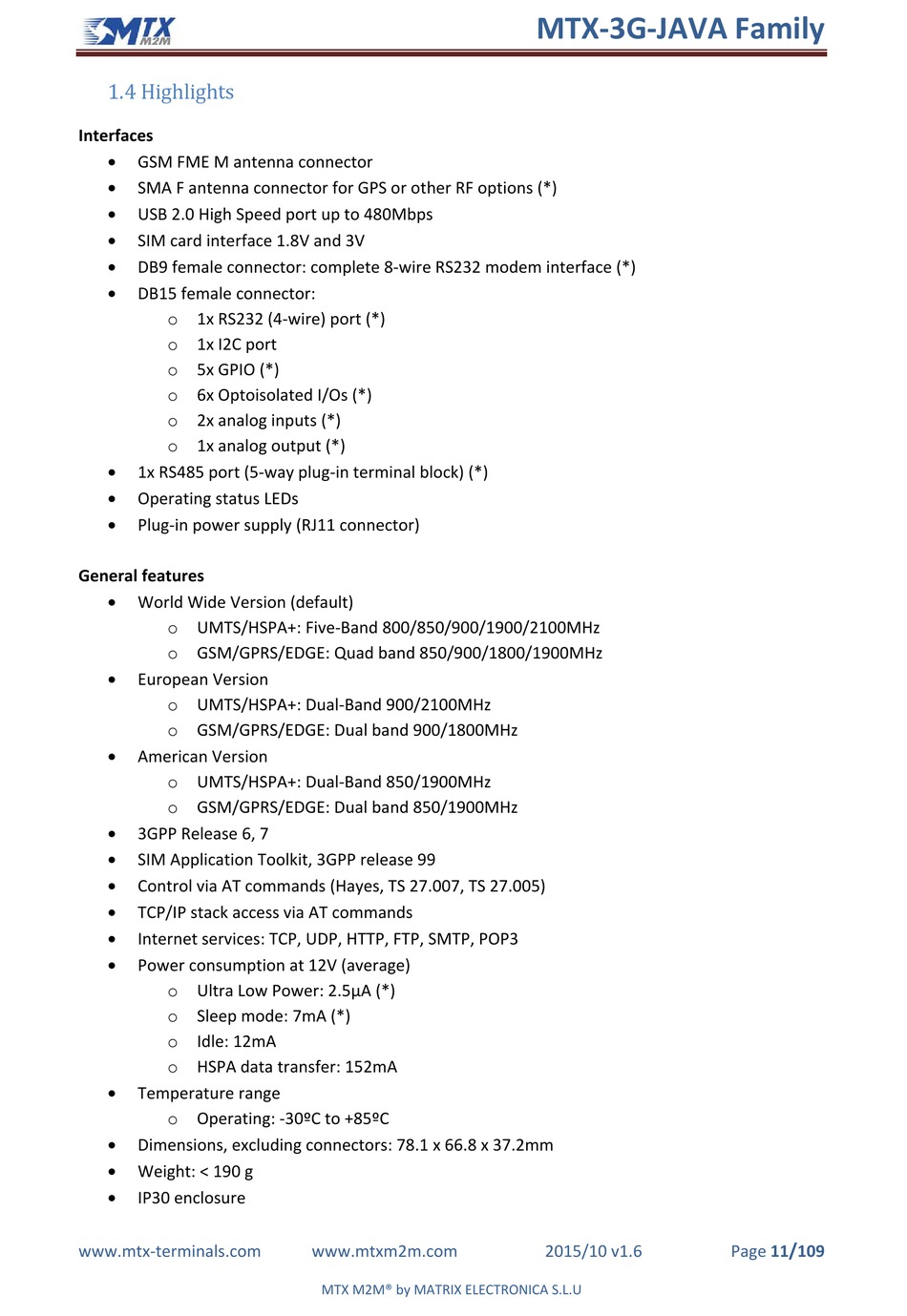

1.4 Highlights

Interfaces

GSM FME M antenna connector

SMA F antenna connector for GPS or other RF options (*)

USB 2.0 High Speed port up to 480Mbps

SIM card interface 1.8V and 3V

DB9 female connector: complete 8‐wire RS232 modem interface (*)

DB15 female connector:
o 1x RS232 (4‐wire) port (*)
o 1x I2C port
o 5x GPIO (*)
o 6x Optoisolated I/Os (*)
o 2x analog inputs (*)
o 1x analog output (*)

1x RS485 port (5‐way plug‐in terminal block) (*)

Operating status LEDs

Plug‐in power supply (RJ11 connector)
General features

World Wide Version (default)
o UMTS/HSPA+: Five‐Band 800/850/900/1900/2100MHz
o GSM/GPRS/EDGE: Quad band 850/900/1800/1900MHz

European Version
o UMTS/HSPA+: Dual‐Band 900/2100MHz
o GSM/GPRS/EDGE: Dual band 900/1800MHz

American Version
o UMTS/HSPA+: Dual‐Band 850/1900MHz
o GSM/GPRS/EDGE: Dual band 850/1900MHz

3GPP Release 6, 7

SIM Application Toolkit, 3GPP release 99

Control via AT commands (Hayes, TS 27.007, TS 27.005)

TCP/IP stack access via AT commands

Internet services: TCP, UDP, HTTP, FTP, SMTP, POP3

Power consumption at 12V (average)
o Ultra Low Power: 2.5µA (*)
o Sleep mode: 7mA (*)
o Idle: 12mA
o HSPA data transfer: 152mA

Temperature range
o Operating: ‐30ºC to +85ºC

Dimensions, excluding connectors: 78.1 x 66.8 x 37.2mm

Weight: < 190 g

IP30 enclosure
