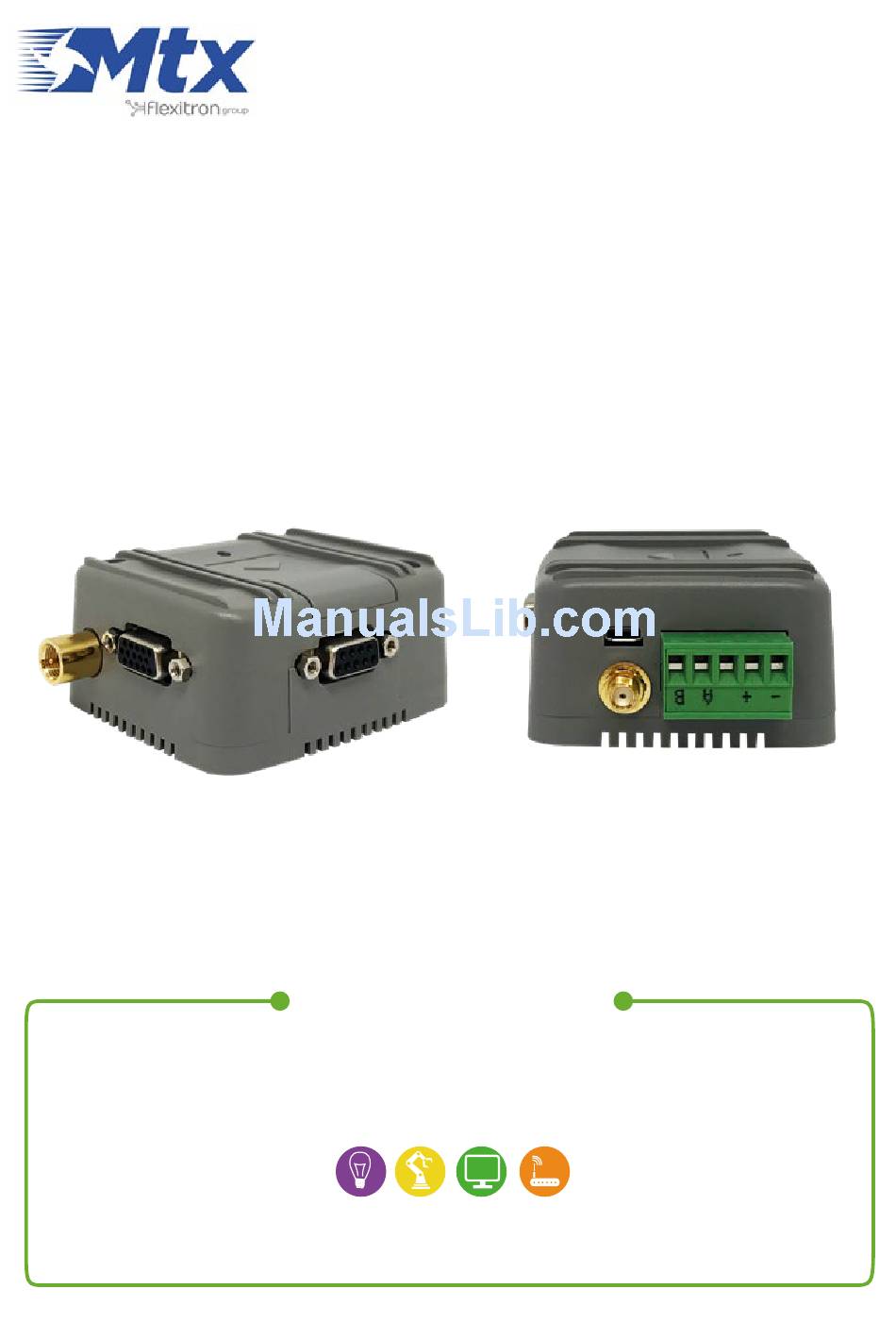

Page 1 #WeAreConnectivity SMART SOLUTIONS FOR A CHANGING WORLD MTX-xG-JAVA-IoT HA RD WARE USER GUIDE www.mtxm2m.com...
Page 2: Table Of Contents
6. Product Label ............................14 7. Main Features and Services ........................15 7.1 Key features at a glance.......................15 The MTX-4G-Java is a LTE bands mobile station with the characteristics shown in the table below. 7.2 Operating modes ..........................21 7.3 Power consumption ........................23 7.4 RF antenna interface description ....................25...
Page 3 5. RS485 bus ..............................65 6. DIP switches ..............................66 7. Relays .................................67 8. Analog audio interface ..........................68 9. GSM/GPRS/UMTS ANtenna Connector ....................71 10. SIM Card Reader ............................72 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 4 MODEM INSTALLATION ......................95 1. Where to Install the Modem ........................95 1.1 Environmental conditions ......................95 1.2 Signal strength ..........................95 1.3 Connections of components to MTX-Java-IoT device ..............95 1.4 Network and subscription ......................95 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U.
Page 5 DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT ........111 ABBREVIATIONS ........................112 AT COMMAND SUMMARY ...................... 118 ACCESSORIES ......................... 127 SALES CONTACT ........................128 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 6: General Notes
This technical description contains important information for the startup and use of the MTX-Java-IoT modem. Read it carefully before you start working with the MTX-Java-IoT device. The warranty will be void should damage occur due to non-compliance with these instructions for use. We cannot accept any responsibility for consequential loss.
Page 7: Revision Information
REVISION INFORMATION REVISION DATE AUTHOR CHANGES 2016/01 Initial release 2017/05 Approvals-RED 2017/07 Added LTE versions MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 8: Introduction
The MTX-Java-IoT devices can also be controlled via AT commands and standard interfaces such us USB 2.0 High Speed or RS232 with Linux and Windows® drivers. The MTX-Java-IoT family is RoHS & WEEE compliant and it is manufactured following the ISO 9001 & IS0 14001 Quality certifications.
Page 9: Ordering Information
2. Ordering Information MTX - xG - JAVA - IoT - Variant - Options - Wireless Wireless Modules 3G module: 3G/2G BT: Bluetooth 2.1 4G module: 4G/3G/2G BLE: Bluetooth low energy WC868: wavecard 25mW 868MHz WC868-LR: wavecard 500mW 868MHz WC915: wavecard 25mW 915MHz...
Page 10: Features By Model
(*1) (*1) Very Low Power (V) (*1) (*1) (*1) (*1) Internal wireless module (*1) (*1) (*1) (*1) * Optional (*1): option. See incompatibility table MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 11: Compatibility Table
-S (SuperCap) -V (Very Low Power) Wireless module (*1) (*1) (*1) GPS module Compatible Non-compatible (*1): all serial ports not available at the same time MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 12: Highlights
5-way plug-in: 200VAC/6A relay 2x RJ11 connectors* Temperature range: -30º to +85ºC Dimensions: 78.1x66.8x37.2mm * Depending on model, see features by model table Weight: <190gr MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 13 Multiplexer according 3GPP TS 27.010 JSR177 (CRYPTO), JSR280 (XML) Accessible periphery for Java applications RLS monitoring and informal network scan Memory space for Java applications MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 14: Product Label
6. Year/week of fabrication 7. Barcode (code 128) (IMEI) 8. CE logo 9. RoHS symbol 10. WEEE symbol 11. Pb-free symbol 12. PTCRB certification logo MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 15: Main Features And Services
7. Main Features and Services The MTX-Java-IoT performs a set of telecom services (TS) according to GSM standard phase 2+, ETSI and ITU-T. The services and functions of the MTX-3G-Java are implemented by issuing customized applications embedded on the device, by AT commands issued internally or over the USB, RS232 or RS485 interface.
Page 16 Storage: SIM card plus SMS locations in mobile equipment Software AT commands Hayes, 3GPP TS 27.007, 27.005, Gemalto M2M AT commands for RIL compatibility MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 17: The Mtx-4G-Java Is A Lte Bands Mobile Station With The Characteristics Shown In The Table Below
RIL for Pocket PC and Smartphone SIM Application Toolkit SAT Release 99 Firmware update Firmware update from host application over USB The MTX-4G-Java is a LTE bands mobile station with the characteristics shown in the table below. FEATURE IMPLEMENTATION General Frequency bands...
Page 18 Storage: SIM card plus SMS locations in mobile equipment Software AT commands Hayes, 3GPP TS 27.007, 27.005, Gemalto M2M AT commands for RIL compatibility MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 19 SAT letter classes b, c, e; with BIP Firmware update Generic update from host application over ASC0 or USB modem The following characteristics are common to MTX-3G-Java and MTX-4G-Java. Interfaces (depending on models) Supports a USB 2.0 High Speed (480Mbit/s) device interface, Full...
Page 20 Orderly shutdown and reset by AT command Hardware Reset Emergency reset by hardware signal TURN_OFF Special Features Antenna SAIC/DARP Rx Diversity (receiver type 3i – 64-QAM)/MIMO MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 21: Operating Modes
7.2 Operating modes The table below briefly summarizes the MTX-3G-Java operating modes referred to in the next chapters. LIMITS FUNCTION Normal GSM/GPRS/UMTS/ Power saving automatically activated when no calls operation HSPA SLEEP are in progress, the USB connection is suspended by the host or not present, and there is no active communication via ASC0.
Page 22 The table below briefly summarizes the MTX-4G-Java operating modes referred to in the next chapters. LIMITS FUNCTION Normal GSM/GPRS/LTE Power saving set automatically when no call is in operation SLEEP progress and the USB connection is suspended by host or not present and no active communication via ASC0.
Page 23: Power Consumption
ROPR=4 (max. reduction) 97mA GSM850/900; PCL=5; 4Tx/1Rx ROPR=0 (no reduction) 136mA GPRS Data transfer ROPR=4 (max. reduction) GSM1800/1900; PCL=0; 1Tx/4Rx 52mA ROPR=0 (no reduction) MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 24 HSPA Data transfer Band II @ 23dBm 150mA HSPA Data transfer Band V/VI @ 23dBm 150mA HSPA Data transfer Band VIII @ 23dBm 152mA MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 25: Rf Antenna Interface Description
21 (max 25) UMTS 2100 Band I 21 (max 25) GPRS Coding Schemes Class 12, CS1 to CS4 EGPRS Class 12, MCS1 to MCS9 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 26 GSM 850/E-GSM 900 GSM 1800/GSM 1900 GPRS, 4 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 EDGE, 4 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 27 Load, (ROPR GSM 1800/GSM 1900 = 2) EDGE, 1 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 GPRS, 2 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 28 GSM 850/E-GSM 900 GSM 1800/GSM 1900 GPRS, 3 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 EDGE, 3 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 29 GSM 850/E-GSM 900 22.2 GSM 1800/GSM 1900 21.2 GPRS, 4 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 EDGE, 4 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 30 Static Receiver Input Sensitivity @ GSM 900 -102 -109 GSM 1800 -102 -108 RF Power @ ARP GSM 900 32.5 with 50Ω Load GSM 1800 29.5 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 31 50Ω Load, (ROPR = 1) GSM 1800 29.5 EDGE, 1 TX GSM 900 GSM 1800 GPRS, 2 TX GSM 900 32.5 GSM 1800 29.5 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 32 27.5 EDGE, 2 TX GSM 900 GSM 1800 GPRS, 3 TX GSM 900 29.5 GSM 1800 26.5 EDGE, 3 TX GSM 900 GSM 1800 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 33 24.5 EDGE, 3 TX GSM 900 GSM 1800 GPRS, 4 TX GSM 900 26.5 GSM 1800 23.5 EDGE, 4 TX GSM 900 GSM 1800 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 34: Sim Card
GSM 900 GSM 1800 7.5 SIM card The MTX-Java-IoT supports an external SIM card through the integrated SIM holder. Both 3V and 1.8V SIM technology is supported. Older 5V SIM technology is not supported. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U.
Page 35: Precautions
8. Precautions MTX-Java-IoT as a standalone item is designed for indoor use only. For outdoor use it must be integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified in Technical Data. MTX-Java-IoT | 2018/2 MTX ©...
Page 36: Block Diagram
9. Block Diagram 9.1 Models with Power Relay 220VAC/6A The MTX-Java-IoT modems containing a 220VAC/6A Power relay have the following block diagram: LED signaling UMTS/GSM GPS Antenna Antenna SMA F FME M SIM Card Reader Mini USB USB 2.0 High Speed...
Page 37: Models With Rj11 Connector And/Or Analog Audio
9.2 Models with RJ11 connector and/or analog audio The MTX-Java-IoT modems with RJ11 connectors and/or analog audio have the following block diagram: LED signaling UMTS/GSM GPS Antenna Antenna SMA F FME M SIM Card Reader RJ11 Audio Mini USB USB 2.0...
Page 38: Models With 5-Way Terminal Block
9.3 Models with 5-way terminal block The general MTX-Java-IoT modem’s block diagram is shown in the following figure: LED signaling UMTS/GSM GPS Antenna Antenna SMA F FME M SIM Card Reader Mini USB USB 2.0 High Speed Cinterio Cellular M2M module...
Page 39: Hardware Revisions
10. Hardware Revisions HARDWAREREVISION STARTING PRODUCTION DATE CHANGES 1.03 2016/02 Initial version MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 40: Mechanical Description
DIP switches and battery jumper Tri-color LED indicator FME antenna (3G) SMA antenna (4G) DB15 Mounting holes Micro USB Optional GPS (3G) 5-way plug-in 5.00mm pitch terminal block MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 41: Models With Rj11 Connector
The pictures below show the mechanical design of the unit along with the positions of the different connectors and mounting holes. The modem case is made of durable PC/ABS plastic. Mounting holes Mini USB Power supply Audio connector MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 42: Dimensions (Mm)
Box 15 units: 37cm x 32cm x 4cm, 1.211Kg Box 150 units (contains 10 boxes of 15 units): 38cm x 33cm x 48cm, 20Kg MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 43: Electrical And Environmental Characteristics
Supply voltage -0.3 CHARACTERISTICS Symbol Parameter Conditions Unit Supply voltage Supply current η Efficiency VIN=24V, IOUT=1.5A Switching frequency *See section Introduction 7.3 (Power Consumption) MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 44: Rs232 Interface
Receiver positive-going input threshold voltage Receiver negative-going input threshold voltage Receiver input hysteresis (VIT+ - VIT-) Input voltage Receiver input resistance kΩ ±3 to ±25V MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 45: Rs485 Interface
-0.065 -0.01 input threshold voltage Receiver negative-going =8mA -0.2 -0.1 input threshold voltage Receiver input hysteresis (VIT+ - VIT-) Receiver differential input capacitance =0.4sin(4Eπt)+0.5V MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 46: Counter Input
ABSOLUTE MAXIMUM RATINGS (TCMD4000 OPTOCOUPLER) Symbol Parameter Conditions Unit Input Reverse voltage Forward current Forward surge current Power dissipation diss Output Collector-emitter voltage Emitter-collector voltage Collector current MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 47 =10V, I Coupler Collector-emitter =50V, I =5mA CEsat saturation voltage =10mA, V =5V, Cut-off frequency =100Ω Coupling capacitance f=1MHz Current transfer ratio =2V, I =1mA MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 48: Analog Input/Output
Initial trimming, 25ºC ±0.1 Input Offset Error Voltage mode (0-50V) ±50 Gain Error ±0.1 PSRR Power Supply Reject. Ratio CMRR Common Mode Reject. Ratio MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 49: 1-Wire (By Request)
1675 Ω Output Low At 4mA load 1.8 Power relay CHARACTERISTICS Parameter Conditions Unit 6/30 Contact rating 6/250 Contact resistance At 1A 6VDC mΩ MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 50: Latch Relay
Switching voltage Resistive load, at 70ºC, 1s Electrical endurance cycles on 9s off, 0.5A 125VAC Mechanical endurance cycles Insulation resistance At 500VDC 1000 MΩ MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 51: Operating Temperatures
Note that within the specified operating temperature ranges the unit temperature may vary to a great extent depending on the operating mode, used frequency band, radio output power and current supply voltage. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 52: Storage Conditions
IEC TR 60271-3-1:1S1 Sinusoidal vibration: IEC TR 60271-3-1:1M2 Displacement Acceleration m/s2 Frequency range 2-9 9-200 Shocks: IEC 60068-2-27 Ea Shock spectrum semi-sinusoidal Duration Acceleration m/s2 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 53: Interface Description
• 5-way plug-in 5.00mm pitch terminal block (power supply, RS485 bus and relay) • SIM card reader • FME male coaxial jack (antenna connector) • SMA female coaxial jack (GPS/GNSS antenna connector) or other RF options MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 54: Power Supply Connector
The power supply has to be a single voltage source capable of providing a peak during an active transmission. The uplink burst causes strong ripples (drop) on the power lines. By default, the MTX-Java-IoT will automatically switch on when power supply is applied between PIN 2 and PIN 1.
Page 55: Models With Rj11 Connector
12V DC power supply. The power supply has to be a single voltage source capable of providing a current peak during an active transmission. The uplink burst causes strong ripples (drop) on the power lines. MTX-Java-IoT devices are shipped to automatically switch on only with supply between PIN 1 and PIN 6. SIGNAL...
Page 56: All Other Models (5-Way Plug-In 5.00Mm Pitch Terminal Block)
The power supply has to be a single voltage source capable of providing a peak during an active transmission. The uplink burst causes strong ripples (drop) on the power lines. By default, the MTX-Java-IoT will automatically switch on when power supply is applied between PIN 2 and PIN 1.
Page 57: Micro Usb Connector
This is because MTX-Java-IoT is designed as a self-powered device compliant with the “Universal Serial Bus Specification Revision 2.0”. The MTX-Java-IoT cannot be powered by a USB port. Only modems that have a mounted an internal Li-Po battery (B) can operate with USB power voltage.
Page 58: Db9 Connector: 8-Wire Rs232
Interface Description 7 (DIP Switches) to learn how to configure DIP switches in order to select the port of your choice. The MTX-Java-IoT modem is designed to be used as a DCE (data circuit-terminating equipment). Based on the conventions for DCE-DTE connections, it communicates with the customer application (DTE- data terminating equipment) using the following signals: •...
Page 59 CSD and fax services only available on the first logical channel • The DTR0 signal will only be polled once per second from the internal firmware of MTX-Java-IoT • The default configuration is 8 data bits, no parity and 1 stop bit. The setting can be changed using the AT command AT+ICF and, if required, AT^STPB •...
Page 60: Db15 Hd Connector: I/O Expansion Port
CTS 1 Output RS232_1 signal: Clear to send Input Counter input VEXT Output Output voltage reference (4V) IN 2 Input Opto-isolated input 2 (active low) MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 61 Opto-isolated output 4 (open collector) ADC 2 Input Analog to Digital converter input 2 Ground connection ADC 1 Input Analog to Digital converter input 1 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 62: Rs232
Interface Description 7 (DIP Switches) to learn how to configure DIP switches in order to select the port of your choice. The MTX-Java-IoT modem is designed to be used as a DCE (data circuit-terminating equipment). Based on the conventions for DCE-DTE connections, it communicates with the customer application (DTE- data terminating equipment) using the following signals: •...
Page 63: Analog Inputs
The A/D converter uses the successive approximation conversion technique. The maximum A/D conversion rate is 5 samples per second. To know how to read the analog inputs values please read the MTX-Java-IoT Family Software Manual. 4.4 Optoisolated I/O The STD and DB15 models have two optoisolated inputs and two optoisolated outputs, located in the DB15 HD expansion port.
Page 64: Counter Input
The electrical equivalent circuits of the counter input is shown in following figure: Internal coprocessor 100K COUNT_IN BC846B 56VDC 100K To know how to use this counter please read the MTX-Java-IoT Family Software Manual. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 65: Rs485 Bus
Automatic restart after shutdown enable Auto on Input 0-VIN signal (n/a in MTX-65i-RS485 FW2.00 (Auto-on) and MTX-65i-RS485-LC) Input 6.5-40VDC Positive power input Input Negative power (ground) MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 66: Dip Switches
6. DIP switches The MTX-Java-IoT modems include 8 DIP microswitches allowing the user to configure some functionalities of the device. These switches are located close to the SIM card holder, so you can access them through the same removable panel of the SIM card holder.
Page 67: Relays
7. Relays Those MTX-Java-IoT models ordered with Relay option (L for Latch Relay or R for Power Relay) include an internal relay whose contacts are available in the device connectors. Power Relay Devices including a Power Relay have a 5-way plug-in 5.0mm pitch terminal block where the relay contacts (Common, Normally Close and Normally Open) are available, shared with the Power Supply.
Page 68: Analog Audio Interface
8. Analog audio interface Those MTX-Java-IoT models ordered with Audio option (A) have a 6-way 4-pole RJ connector, as shown below, allowing a telephone handset to be plugged into the modem and giving access to the microphone and earpiece signals. The connector may also be used to drive other analog audio sub-systems or devices.
Page 69 When shipped from the factory, all audio parameters of MTX-65i are set to interface 1 and audio mode 1. This is the default configuration optimized for the Votronic HH-SI-30.3/V1.1/0 handset and used for type approving the MTX Terminals reference configuration.
Page 70 12 sec, is attenuated by the noise reduction 2. Signal for -5dBm0 (due to attenuation of uplink filter at 1kHz) MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 71: Gsm/Gprs/Umts Antenna Connector
RF signal The external antenna must be matched properly to achieve the best performance regarding radiated power, DC-power consumption, modulation accuracy and harmonic suppression. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 72: Sim Card Reader
10. SIM Card Reader The MTX-Java-IoT modem is fitted with a SIM card reader designed for 1.8V and 3V SIM cards. It is the flip-up type which is lockable in the horizontal position and is accessed through a removable panel as shown below.
Page 73: Internal Li-Po Battery
11. Internal Li-Po Battery MTX-Java-IoT modems ordered with Battery (B) option mount an internal 3.7V 1650mAh Li-Po battery. The units are shipped with the battery disconnected. To connect it please open the removable panel of the device enclosure and locate the battery jumper near the SIM card holder and the DIP switches, just like the picture below: Please set the jumper position like the following picture to connecto or disconnect the battery.
Page 74 30 minutes. Please note that the minimum battery level module switches off automatically, when the battery voltage is around 3.65V (please remember to check using the AT^SBV command). MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 75 Note: there are two internal LEDs that provide information about the battery status: • A red LED will illuminate when the battery is charging • A green LED will illuminate when external power is applied MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 76: Real Time Clock
“time stamp” messages. This RTC is supplied by a separate voltage regulator which is also active when the MTX-Java-IoT is in power down mode and the power supply VIN is available. An alarm function is provided that allows the MTX-Java-IoT to wake up in Airplane mode without logging onto the GSM/UMTS network.
Page 77: Gps
It is possible to connect active or passive GPS antennas. In either case they must have 50 Ohm impedance. 13.2 GPS application interface The MTX-Java-IoT has an internal GPS receiver which offers the full performance of GPS technology. The GPS receiver continuously tracks all satellites in view, thus providing accurate satellite positioning data.
Page 78 Active antenna or LNA -150 Sensitivity Passive antenna -145 Hot (average at -140dBm) <2 Time-to-First-Fix Warm (average at -140dBm) <35 (TTFF) Cold (average at -140dBm) <46 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 79: Internal Modules
14. Internal Modules MTX-Java-IoT modems can be shipped with up to two internal RF cards installed which allows for use with almost all protocols that exist nowadays, such as Bluetooth, WiFi, ISM, ZigBee, etc. The RF card is connected to the internal coprocessor. This means that models mounting an RF card, there will be only one serial port (DB9, DB15 HD, RS485,…) available to be used.
Page 80: Firmware Updates
15. Firmware Updates It is possible and sometimes necessary to update the MTX-Java-IoT firmware. Updates must be carried out by an approved technician. Please contact gsmsupport@matrix.es for details regarding Service/ Programming. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U.
Page 81: Operation
This feature allows an application to be switched on all the time and also allows it to restart itself. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 82: Power Modes
2. Power Modes The MTX-Java-IoT devices ordered with Ultra Low Power (U) or Low Power (L) options can enter into two reduced consumption power modes depending the option: Ultra Low Power or Low Power. 2.1 Ultra Low Power mode In this mode, all the board devices are disconnected from the power supply, except a little portion of digital logic and a RTC that allows the modem to exit from this mode and go back into the normal mode.
Page 83: Status Leds
• Medium blink: 500ms ON, 500ms OFF • Slow blink: 1000ms ON, 1000ms OFF • Pulse: 100ms ON, 900ms OFF To learn how to use these LEDs please read the MTX-Java-IoT Family Software Manual. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U.
Page 84: At Command Interpreter
Please note that URCs are normally indicated only on this interface, no matter whether the Modem interface or the Application interface was used to send the AT commands to activate their presentation. This URC management scheme is the default configuration recommended for a typical MTX-Java-IoT application.
Page 85: Embedded Applications
EMBEDDED APPLICATIONS The MTX-Java-IoT can embed an internal application written in popular Java language. Java technology and several peripheral interfaces on the modem allow you to easily integrate your application. This way, the customer application can be reduced because all the resources (Microcontroller, Flash & RAM memory and all kind of I/O and bus peripheral) can be used by the customer.
Page 86 • Firmware: FOTA (OMA compliant) Ask gsmsupport@matrix.es for application notes and a free SDK (Software Development Kit); we will provide Matrix FTP server to download it. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 87: Mtx-Tunnel Software Application
If you are not a Java expert and you do not have experts on hand in your company, we have a readily compiled Java code which fits into 99% of M2M applications: MTX-Tunnel. This is optional and must be ordered separately.
Page 88 • Telemetry (GPIOs and GPS) • Serial RS232/485 – HTTP Tunnel • Serial RS232/485 – SMS Tunnel • Timing synchronization • ModBus • RF Gateway MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 89: Safety And Product Care
SAR measurement test report and declaration • You are responsible for observing your country’s safety standards, and where applicable, the relevant wiring rules MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 90: General Precautions
2. General Precautions The MTX-Java-IoT modem as a standalone item is designed for indoor use only. For outdoor use it must be integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified in “Technical Data.”...
Page 91: Sim Card Precautions
SIM card protected by a PIN code. This will ensure that the SIM card cannot be used by an unauthorized person MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 92: Antenna Precautions
• The modem and antenna may be damaged if either come into contact with ground potentials other than the one in your application. Beware: ground potentials are not always what they appear to be MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 93: Radio Frequency (Rf) Exposure And Sar
20cm from the body. In all other configurations the user is responsible for meeting the local SAR regulations. Users of the MTX-Java-IoT wireless modem device are responsible for ensuring that they meet the SAR regulatory requirements of the countries in which they intend to operate the device and that their documentation contains the relevant SAR declaration, certification information and user guidance as appropriate.
Page 94: Personal Medical Devices
Wireless modem devices may affect the operation of cardiac pacemakers, hearing aids and certain other implanted equipment. If a minimum distance of 15 cm (6 inches) is maintained between the MTX- Java-IoT modem radiating antenna and a pacemaker, the risk of interference is limited. If the user’s application is likely to be situated in the vicinity of personnel, a suitable warning should be contained in the equipment manual to this effect.
Page 95: Modem Installation
MODEM INSTALLATION This chapter gives you advice and helpful hints on how to integrate the MTX-3G-Java Terminal into your application from a hardware perspective. 1. Where to Install the Modem There are several conditions which need to be taken into consideration when designing your application as they might affect the modem and its function.
Page 96: How To Install The Modem
• Where access is restricted, it may be easier to connect all the cables to the modem prior to securing it in the application • Securely attach the MTX-3G-Java Terminal modem to the host application using two 3mm diameter pan-head screws MTX-Java-IoT | 2018/2 MTX ©...
Page 97: Antenna
70V/m and at 1m it will have reduced to 7V/m. In general, CE-marked products for residential / commercial areas and the light industry can withstand a minimum of 3V/m. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 98: The Antenna Cable
Hand-over can briefly interfere with communication and may cause a delay, or at worst, disruption MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 99: Conformity Assessment
CONFORMITY ASSESSMENT 1. RED Declaration of Conformity Unique identification of this DoC: MTX-3G-Java-IoT RED DoC MATRIX ELECTRÓNICA S.L., C/ Alejandro Sanchez 109, 28019 Madrid, Spain declare under our sole responsibility that the MTX-3G-Java-IoT family product MTX-3G-Java-IoT-STD-N (EHS6) 199801393 MTX-3G-Java-IoT-STD-G (EHS8)
Page 100: Fcc Compliant
2. FCC Compliant MTX-Java-IoT and any variants contain FCC ID: QIPEHS6. The FCC Equipment Authorization Certification for the EHS6 Module is listed under the FCC identifier QIPEHS6. Industry Canada Certification Number: 7830A-EHS6 granted to Gemalto M2M GmbH. The reference application of the EHS6 Module registered under the above identifier is certified to be in accordance with the following Rules and Regulations of the Federal Communications Commission (FCC).
Page 101 Solving for G; the maximum antenna gain is: BAND DISTANCE MAX. GAIN (dBi) 850MHz 20cm 1.7669 850MHz 50cm 9.7257 1900MHz 20cm 7.1227 1900MHz 50cm 15.0815 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 102: Declaración De Conformidad
DECLARACIÓN DE CONFORMIDAD 1. Declaración de conformidad RED Identificación única de esta Declaración de Conformidad: MTX-3G-Java-IoT RED DoC Nosotros MATRIX ELECTRÓNICA S.L., C/ Alejandro Sanchez 109, 28019 Madrid, España declaramos bajo nuestra responsabilidad que la familia de productos MTX-3G-Java-IoT MTX-3G-Java-IoT-STD-N (EHS6)
Page 103: Conformidad Fcc
2. Conformidad FCC MTX-Java-IoT y todas sus variantes contienen el FCC ID: QIPEHS6. El Certificado de Autorización de Equipo de la FCC para el módulo EHS6 está listado con el identificador FCC QIPEHS6. Número de Certificación de Industria en Canadá: 7830A-EHS6 asignado a Gemalto M2M GmbH.
Page 104 Despejando G; la máxima ganancia de antena es: BANDA DISTANCIA GANANCIA MÁX. (dBi) 850MHz 20cm 17669 850MHz 50cm 97257 1900MHz 20cm 71227 1900MHz 50cm 150815 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 105: Regulatory And Type Approval Information
INFORMATION 1. Directives and Standards The MTX-Java-IoT modem has been designed to comply with the directives and standards listed below. It is the responsibility of the application manufacturer to ensure compliance of the final product with all provisions of the applicable directives and standards, as well as with the technical specifications provided in this document.
Page 106 Assessment of electronic and electrical equipment related to EN 62311:2008 human exposure restrictions for electromagnetic fields (0 Hz - 300 GHz). IEC/EN 60950- 1:2006+A11:2009+ Safety of information technology equipment. A1:2010+A12:2011 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 107 Please see next table for an overview of toxic or hazardous substances or elements that might be contained in product parts in concentrations above the limits defined by SJ/T 11363-2006. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 108: Sar Requirements Specific To Portable Mobiles
In this context, the term “fixed location” means that the device is physically secured at one location and cannot be easily moved to another location. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 109: Selv Requirements
3. SELV Requirements The power supply connected to the MTX-Java-IoT modem shall be in compliance with the SELV requirements defined in EN 60950-1. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 110: Rohs Statement
ROHS STATEMENT The MTX-Java-IoT modem is compliant with the 2002/95/EC (RoHS 1) and 2011/65/EC (RoHS 2) directives of the European Parliament and of the Council of 27 January 2003 (and revised on 8 June 2011) on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
Page 111: Disposal Of Old Electrical And Electronic Equipment
For more detailed information about the recycling of this product, please contact your local city office, household waste disposal service or the retail store where you purchased this product. MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 112: Abbreviations
Coding Scheme Circuit Switched Data Clear to Send Digital-to-Analog Converter Digital Audio Interface dBm0 Digital level, 3.14dBm0 corresponds to full scale, see ITU G.711, A-law MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 113 EIRP Equivalent Isotropic Radiated Power Electromagnetic Compatibility Effective Radiated Power Electrostatic Discharge European Telecommunication Standard ETSI European Telecommunications Standards Institute Federal Communications Commission (U.S.) MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 114 Light Emitting Diode Li-Ion/Li+ Lithium-Ion Li battery Rechargeable Lithium Ion or Lithium Polymer battery Link Power Management Moisture barrier bag Mbps Mbits per second MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 115 Personal Communications Network, also referred to as DCS 1800 Personal Communication System, also referred to as GSM 1900 Pull Down resistor (appr. 100k) Protocol Data Unit Phase Locked Loop Point-to-point protocol MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 116 Real Time Clock Request to Send Receive Direction Specific Absorption Rate Surface Acoustic Wave SELV Safety Extra Low Voltage Subscriber Identification Module Surface Mount Device MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 117 Universal Serial Bus USIM UMTS Subscriber Identification Module USSD Unstructured Supplementary Service Data VSWR Voltage Standing Wave Ratio WCDMA Wideband Code Division Multiple Access MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 118: At Command Summary
(TE) to the terminal adaptor (TA). The command line consists of a string of alphanumeric characters. It is sent to the MTX-Java-IoT to instruct it to perform the commands specified by the characters.
Page 119 Quality of Service Profile (Minimum acceptable) AT+CGQREQ Quality of Service Profile (Requested) AT+CGREG Packet Domain Network Registration Status AT+CGSMS Select service for MO SMS messages MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 120 More Messages to Send AT+CMSS Send short messages from storage AT+CMUT Mute control AT+CMUX Multiplex mode AT+CNAP Calling Name Presentation AT+CNMA New Message Acknowledgement to ME/TE MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 121 Service reporting control AT+CRC Incoming Call Indication Format AT+CREG Network Registration Status AT+CRLP Configure RLP Parameters for Outgoing Non-Transparent Data Calls AT+CRSM Restricted SIM Access MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 122 USAT Call Control Notification AT+STKCNF USAT Proactive Session Status AT+STKENV USAT Envelope Command AT+STKPRO USAT Proactive Command URCs AT+STKTR USAT Terminal Response Commands AT+VTD Tone duration MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 123 Internet Profile Storage AT^SISC Internet Service Close AT^SISE Internet Service Error Report AT^SISH Internet Listener Service Disconnect AT^SISI Internet Service Information AT^SISO Internet Service Open MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 124 Set microphone path parameters AT^SNFM Set microphone audio path and power supply AT^SNFO Set audio output (= loudspeaker path) parameter AT^SNFS Select audio hardware set MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 125 Mobile originated call from active memory using index number ATD><str> Mobile originated call from active memory using corresponding field ATDL Redial last number used MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 126 Set number of seconds to wait for connection completion ATS8 Comma Dial Pause Time Result code format mode CONN251 4ECT Result Code Format Restore AT Command Settings from User Defined Profile MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...
Page 127: Accessories
ACCESSORIES The MTX-Java-IoT has a wide range of available accessories, including: • Power supplies • All type of antennas (indoor, outdoor, high gain, etc.) • Cables and DIN adapters The MTX-Java-IoT is shipped without any accessories. Please visit the following web sites to see the full range of accessories: mtxm2m.com /en/modem-router- gateway-accesories.
Page 128: Sales Contact
Fax: 902.99.54.14 MATRIX VALENCIA Matrix Electrónica S.L. Valencia, Spain Phone: 902.19.81.46 Fax: 902.99.54.14 MATRIX SEVILLA Matrix Electrónica S.L. Sevilla, Spain Phone: 902.19.81.46 Fax: 902.99.54.14 MTX-Java-IoT | 2018/2 MTX © by MATRIX ELECTRONICA S.L.U. SUPPORT: iotsupport@mtxm2m.com | SALES: info@mtxm2m.com | mtxm2m.com...

This manual is also suitable for:

Mtx-3g-java-iot

MTX -4G-JAVA-IoT Hardware User's Manual

Quick Links

Related Manuals for MTX MTX-4G-JAVA-IoT

Summary of Contents for MTX MTX-4G-JAVA-IoT

This manual is also suitable for:

Table of Contents
