MTX -3G-JAVA series User Manual page 61

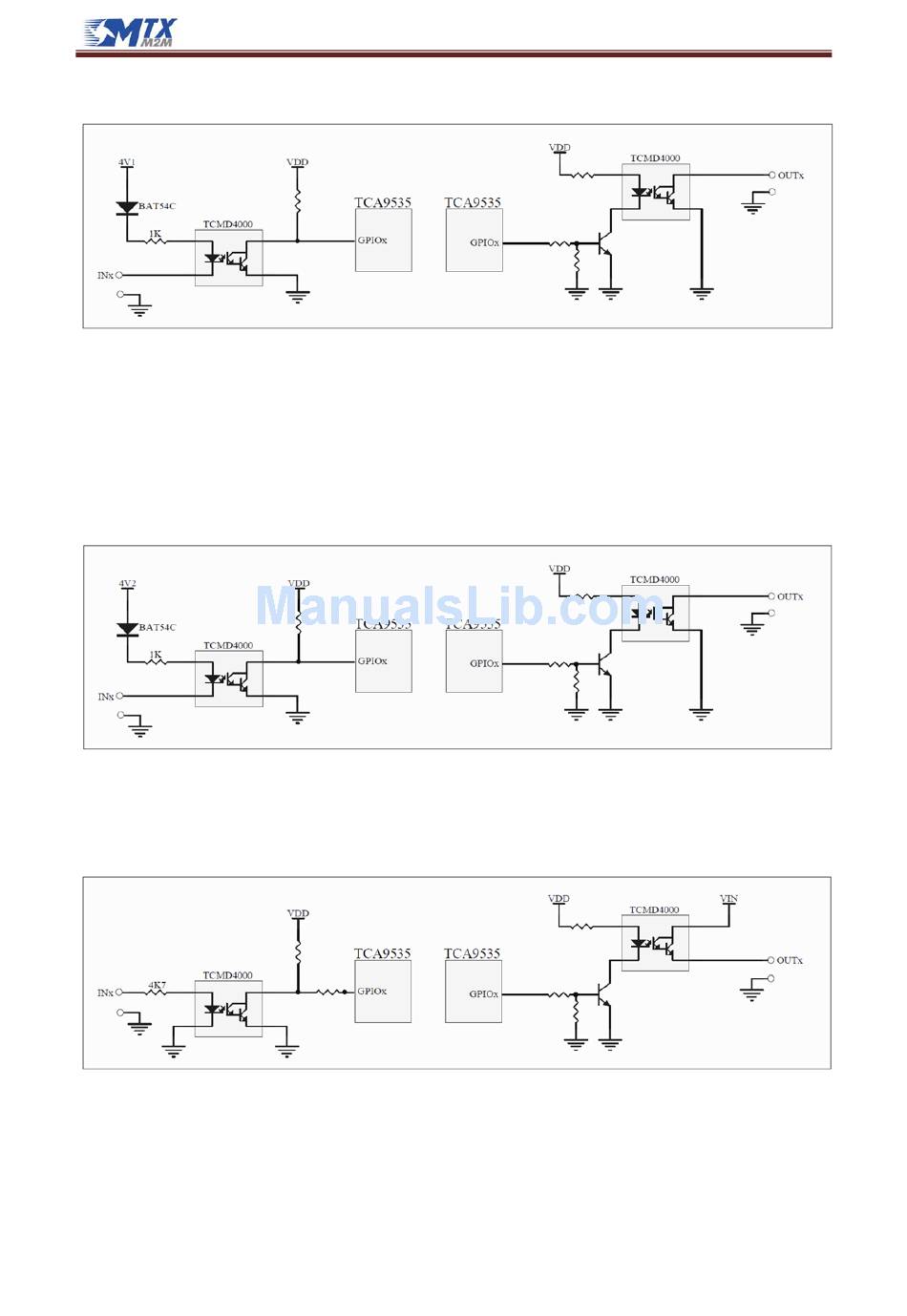

The electrical equivalent circuits for MTX‐3G‐JAVA‐RS485 models are shown in the following figure
INPUT
0V ≤ V ≤ 2.5V → Logic '0'
IN
2.7V ≤ V ≤ 40V → Logic '1'
IN
The electrical equivalent circuits for all other models which have optoisolated input/outputs are
shown in the following figures
INPUT
0V ≤ V ≤ 2.5V → Logic '0'
IN
2.7V ≤ V ≤ 40V → Logic '1'
IN
INPUT
0V ≤ V ≤ 1.1V → Logic '1'
IN
1.5V ≤ V ≤ 40V → Logic '0'
IN
www.mtx‐terminals.com
Optoisolated inputs/outputs equivalent circuit
Optoisolated IN/OUT 2&3 equivalent circuit
Optoisolated IN/OUT 4 equivalent circuit
www.mtxm2m.com
MTX M2M® by MATRIX ELECTRONICA S.L.U
MTX‐3G‐JAVA Family
OUTPUT
Logic '0' → V = HiZ
OUT
Logic '1' → V = 1V (max)
OUT
OUTPUT
Logic '0' → V = HiZ
OUT
Logic '1' → V = 1V (max)
OUT
OUTPUT
Logic '0' → V = HiZ
OUT
Logic '1' → V = VIN‐1V (min)
OUT
2015/10 v1.6
/
Page 61 109
