Kia Rio 2016-up
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Factory clock and push to start provision
• 99-7367B - Painted matte black
• 99-7367HG - Painted gloss black
KIT COMPONENTS

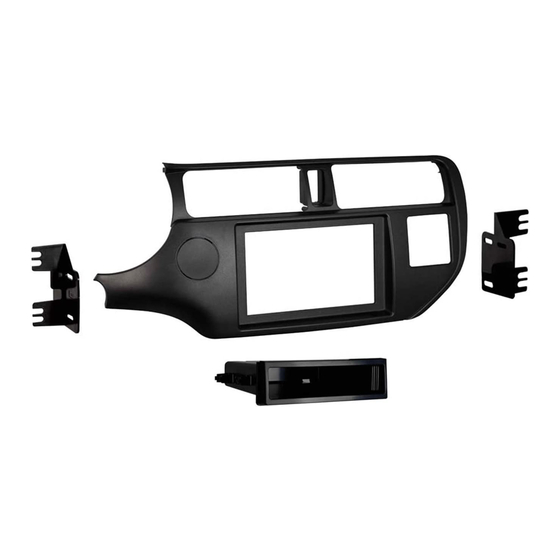

• A) Radio housing trim panel • B) Radio brackets • C) Vent trim ring • D) Pocket • E) Start/Stop switch blank plate
• F) Storage pocket • G) (8) #8 x 3/8" Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7304
Antenna Adapter: • Not required
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
METRA. The World's best kits.
Installation instructions for part 99-7367
99-7367
C
D
™
E
F
G
metraonline.com
Table of Contents
Dash Disassembly .............................................. 2-3
Kit Preparation ........................................................4
Kit Assembly
– ISO DIN radio provision with pocket ....................... 5
– ISO DDIN radio provision ....................................... 6
CAUTION!
All accessories, switches, climate controls panels,
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-7367
Summary of Contents for Metra Electronics 99-7367

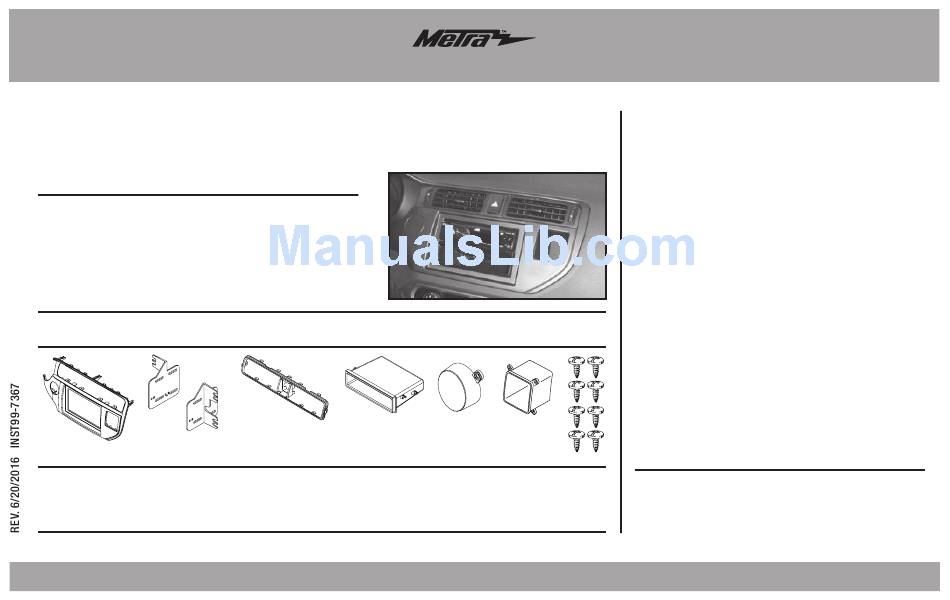

- Page 1 Installation instructions for part 99-7367 Table of Contents Kia Rio 2016-up 99-7367 Dash Disassembly ..........2-3 Kit Preparation ............4 KIT FEATURES Kit Assembly • ISO DIN radio provision with pocket – ISO DIN radio provision with pocket ....... 5 • ISO DDIN radio provision •...
- Page 2 99-7367 Dash Disassembly 1. Unclip and remove the factory radio trim panel including the a/c vents. (Figure A) Note: Remove the (8) retaining clips to be reused in Kit Assembly. 2. Remove (4) Phillips screws securing the radio in the dash.
- Page 3 99-7367 Dash Disassembly 3. Remove (2) Phillips screws securing the start/stop switch if equipped. (Figure B) 4. Remove (4) Phillips screws securing Step 3 Step 5 the storage pocket, or factory clock if equipped. (Figure B) 5. Remove the (6) Phillips screws...
-
Page 4: Kit Preparation
99-7367 Kit Preparation 1. Place the vent trim ring into the radio housing trim panel and mount the vents using the factory screws removed in disassembly. Mount the clock and hazard switch into the radio housing trim panel using screws removed in disassembly. -
Page 5: Kit Assembly
99-7367 Kit Assembly ISO DIN radio provision with pocket 1. Mount the pocket to the radio brackets with the (2) #8 x 3/8” Phillips screws supplied. (Figure A) 2. Remove the metal DIN sleeve and trim ring from the aftermarket radio. - Page 6 99-7367 Kit Assembly ISO DDIN radio provision 1. Mount the radio brackets to the radio with the screws supplied with the radio. (Figure A) 2. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS.
- Page 7 99-7367...
- Page 8 Installation instructions for part 99-7367 IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
- Page 9 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7367 Indice Kia Rio 2016 y mas 99-7367 Desmontaje del tablero ........2-3 Preparación del kit ..........4 CARACTERÍSTICAS DEL KIT Ensamble del kit • Provisión de radio ISO DIN con cavidad – Provisión de radio ISO DIN con cavidad ....5 •...
- Page 10 99-7367 Desmontaje del tablero 1. Desenganche y quite el panel de la moldura del radio de fábrica, incluyendo las rejillas del aire acondicionado. (Figura A) Nota: Quite los (8) ganchos de retención que se volverán a usar en el ensamble del kit.
- Page 11 99-7367 Desmontaje del tablero 3. Quite los (2) tornillos Phillips que sostienen el interruptor de inicio/ paro si se incluye. (Figura B) Paso 3 Paso 5 4. Quite los (4) tornillos Phillips que sujetan la cavidad de almacenamiento o el reloj de fábrica si está...
- Page 12 99-7367 Preparación del kit 1. Coloque el anillo de moldura de las rejillas en el panel de la moldura de la carcasa del radio y monte las rejillas usando los tornillos de fábrica que se quitaron al desarmarlo. Monte el reloj y...
- Page 13 99-7367 Ensamble del kit Provisión de radio ISO DIN con cavidad 1. Monte la cavidad en los soportes del radio con los (2) tornillos Phillips #8 de 3/8” suministrados. (Figura A) 2. Quite la manga de metal DIN y el anillo de moldura del radio de mercado secundario.
- Page 14 99-7367 Ensamble del kit Provisión de radio ISO DDIN 1. Monte los soportes en el radio con los tornillos que vienen con el radio. (Figura A) 2. Localice el arnés de cables de fábrica en el tablero. Metra recomienda el uso de un adaptador adecuado de acoplamiento de Metra o de AXXESS.
- Page 15 99-7367...
- Page 16 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7367 IMPORTANTE Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente como se indica en las instrucciones.
