4
"A"
Mount the factory cupholder to the bottom of the Radio Housing with (2) Phillips screws
previously removed in step #1 ("A") and (2) locating pins ("B").
5
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
3
"B"
"A"
6
Re-connect the battery terminal and test the unit
for proper operation. Mount the head unit/kit
assembly to the sub-dash with (4) Phillips screws
previously removed in step #1.
rev. 250701
KIT FEATURES
Shaft and
DIN unit
provisions
Equalizer
provisions
"B"
KIT COMPONENTS

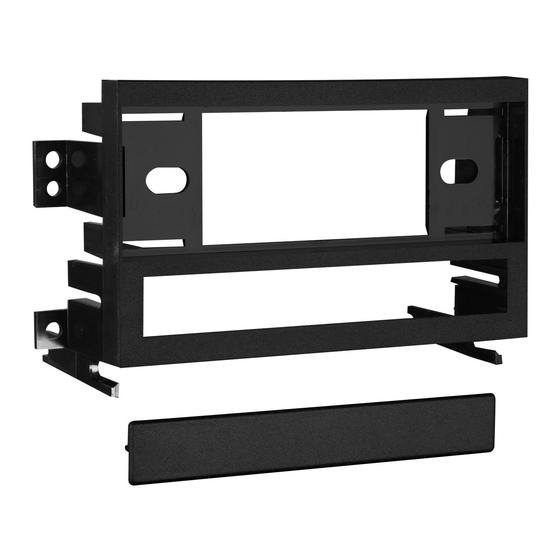

Radio Housing
Snap Spacers
Equalizer
Dummy Plate
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
Adjustable wrench
99-7410
INSTALLATION
INSTRUCTIONS
APPLICATIONS
CAR
NISSAN
200SX 1995-98........................................................1-3
Sentra 1995-99........................................................1-3
Spacer
1-800-221-0932
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
PAGE
www.metraonline.com
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-7410
Summary of Contents for Metra Electronics 99-7410
- Page 1 (Isolate and previously removed in step #1. Cutting tool individually tape off the ends of any unused wires to prevent electrical short circuit). 1-800-221-0932 www.metraonline.com Adjustable wrench © COPYRIGHT 2001 METRA ELECTRONICS CORPORATION rev. 250701...
- Page 2 ALL VEHICLES Fig. A *OPTIONAL Fig. C Fig. B DIN HEAD UNITS: For a surface-mount installation, cut and remove the shaft supports from the Spacer* *OPTIONAL and Radio Housing. Place the Spacer into the Housing. Slide the DIN cage into the kit and secure by bending the metal locking tabs down.
