Metra Electronics 99-7367 Installation Instructions Manual

Kia rio 2016-2017
Hide thumbs Also See for 99-7367:

Advertisement

Available languages

Available languages

Quick Links

Download this manual

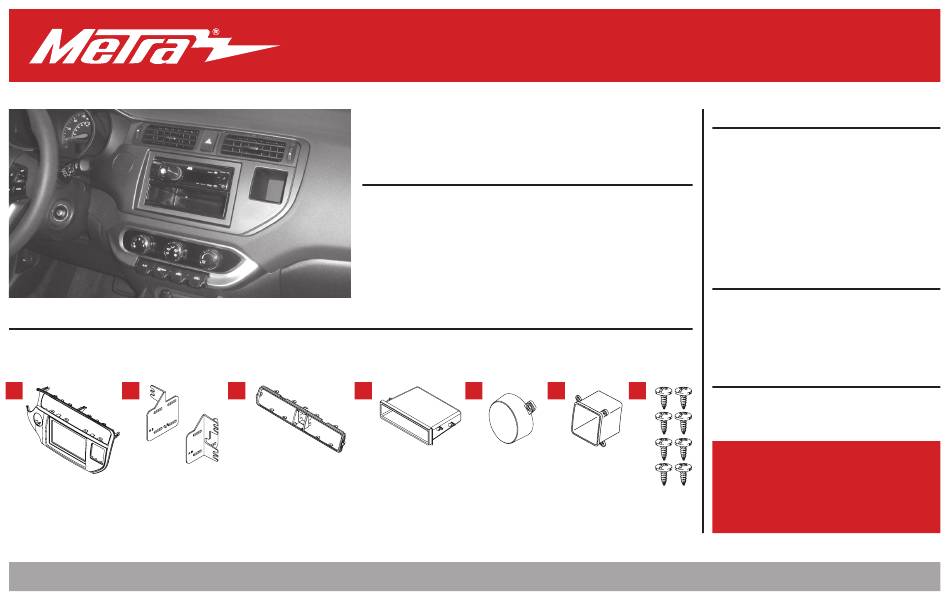

KIT COMPONENTS
• A) Radio housing trim panel • B) Radio brackets • C) Vent trim ring • D) Pocket • E) Start/Stop switch blank plate • F) Storage pocket
• G) (8) #8 x 3/8" Phillips screws
A
B
Metra. The World's Best Kits.
®
Kia Rio
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Factory clock and push to start provision
• 99-7367B - Painted matte black
• 99-7367HG - Painted gloss black
C
D
MetraOnline.com
2016-2017
E
F
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
99-7367
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly
– ISO DIN radio provision with pocket .................5
– ISO DDIN radio provision ....................................6
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-7304
Antenna Adapter: Not required
TOOLS REQUIRED
G
• Panel removal tool • Phillips screwdriver
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 11/21/17 INST99-7367

Advertisement

loading
Need help?

Need help?

Do you have a question about the 99-7367 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 99-7367

Summary of Contents for Metra Electronics 99-7367

  • Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 11/21/17 INST99-7367...
  • Page 2 DASH DISASSEMBLY 1. Unclip and remove the factory radio trim panel including the a/c vents. (Figure A) Note: Remove the (8) retaining clips to be reused in Kit Assembly. 2. Remove (4) Phillips screws securing the radio in the dash. Continued on the next page (Figure A) 1.800.221.0932...
  • Page 3 DASH DISASSEMBLY (CONT) 3. Remove (2) Phillips screws securing the start/stop switch if equipped. (Figure B) 4. Remove (4) Phillips screws securing Step 3 Step 5 the storage pocket, or factory clock if equipped. (Figure B) 5. Remove the (6) Phillips screws securing the a/c vents then unclip and remove them from the radio trim panel.
  • Page 4 KIT PREPARATION 1. Place the vent trim ring into the radio housing trim panel and mount the vents using the factory screws removed in disassembly. Mount the clock and hazard switch into the radio housing trim panel using screws removed in disassembly. (Figure A) Note: If no factory clock is present, a storage pocket and (4) # 8 x 3/8”...
  • Page 5 KIT ASSEMBLY ISO DIN radio provision with pocket 1. Secure the pocket to the radio brackets with the (2) #8 x 3/8” Phillips screws supplied. (Figure A) 2. Remove the metal DIN sleeve and trim ring from the aftermarket radio. 3.
  • Page 6 KIT ASSEMBLY ISO DDIN radio provision 1. Secure the radio brackets to the radio with the screws supplied with the radio. (Figure A) 2. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS.
  • Page 7 REV. 11/21/2017 INST99-7367...
  • Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 11/21/17 INST99-7367...
  • Page 9 Además, no quite el radio de fábrica con la llave en la posición o de encendido ni con el vehículo funcionando. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 11/21/17 INST99-7367...
  • Page 10 DESMONTAJE DEL TABLERO 1. Desenganche y quite el panel de la moldura del radio de fábrica, incluyendo las rejillas del aire acondicionado. (Figura A) Nota: Quite los (8) ganchos de retención que se volverán a usar en el ensamble del kit. 2.
  • Page 11 DESMONTAJE DEL TABLERO (CONT) 3. Quite los (2) tornillos Phillips que sostienen el interruptor de inicio/paro si se incluye. (Figura B) Paso 3 Paso 5 4. Quite los (4) tornillos Phillips que sujetan la cavidad de almacenamiento o el reloj de fábrica si está...
  • Page 12 PREPARACIÓN DEL KIT 1. Coloque el anillo de moldura de las rejillas en el panel de la moldura de la carcasa del radio y monte las rejillas usando los tornillos de fábrica que se quitaron al desarmarlo. Monte el reloj y el interruptor de las luces intermitentes en el panel de la moldura de la carcasa del radio usando los tornillos que se...
  • Page 13 ENSAMBLE DEL KIT Provisión de radio ISO DIN con cavidad 1. Sujete la cavidad en los soportes del radio con los (2) tornillos Phillips #8 de 3/8” suministrados. (Figura A) 2. Quite la manga de metal DIN y el anillo de moldura del radio de mercado secundario.
  • Page 14 ENSAMBLE DEL KIT Provisión de radio ISO DDIN 1. Sujete los soportes de radio en el radio con los tornillos que vienen con el radio. (Figura A) 2. Localice el arnés de cables de fábrica en el tablero. Metra recomienda el uso de un adaptador adecuado de acoplamiento de Metra o de AXXESS.
  • Page 15 REV. 11/21/2017 INST99-7367...
  • Page 16 800-354-6782 para obtener más información y avance hacia un futuro mejor. Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP). Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 11/21/17 INST99-7367...
