INSTALLATION INSTRUCTIONS FOR PART 99-7376B

Hyundai Elantra 2017-up

KIT FEATURES

• ISO DIN radio provision with pocket

• Painted matte black

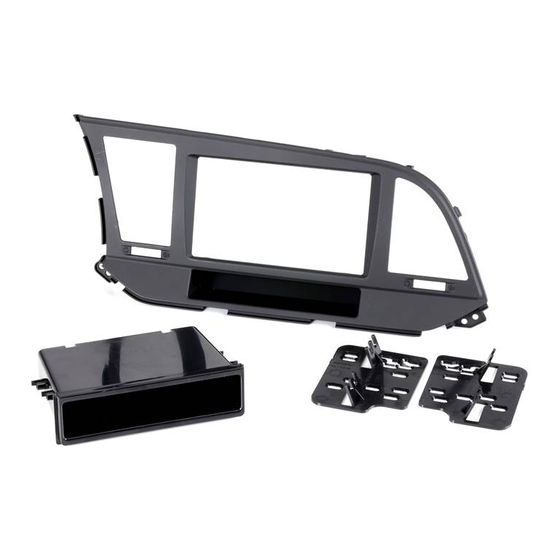

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-7304 (without 7-inch display radio) • 70-7306 (with 7-inch display radio)

Antenna Adapter: N/A (without 7-inch display radio) • 40-KI11 (with 7-inch display radio)

METRA – The World's best kits.

99-7376B

metraonline.com

Dash Disassembly ................................................. 2

Kit Preparation ....................................................... 3

Kit Assembly

– ISO DIN radio provision with pocket ...................... 3

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

CAUTION!

and especially air bag indicator lights must be connected before

cycling the ignition. Also, do not remove the factory radio with

the key in the on position, or while the vehicle is running.

Table of Contents

All accessories, switches, climate controls panels,

Need help?

Do you have a question about the 99-7376B and is the answer not in the manual?

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7376B Table of Contents Hyundai Elantra 2017-up 99-7376B Dash Disassembly ..........2 Kit Preparation ............3 Kit Assembly – ISO DIN radio provision with pocket ...... 3 KIT FEATURES • ISO DIN radio provision with pocket •...
Page 2 99-7376B Dash Disassembly 1. Open the passenger front door, 5. Unclip the trim panel above the then unclip and remove the trim steering column, and then unclip panel from the side of dashboard. and remove the entire panel Remove the (1) Phillips screw surrounding the instrument cluster.
Page 3: Kit Preparation
99-7376B Kit Preparation Kit Assembly 1. Remove the (3) Phillips screws ISO DIN radio provision with pocket securing the A/C vents to the radio 1. Secure the pocket to the radio trim panel and then remove. brackets using the (4) #8 x 3/8”...
Page 4 INSTALLATION INSTRUCTIONS FOR PART 99-7376B IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.

Hyundai elantra 2017-up
