Installation instructions for part 99-7018
Mitsubishi Outlander Sport 2014-up
KIT FEATURES
• ISO DIN radio provision with pocket
• 99-7018B - matte black
99-7018CHG - charcoal gloss
KIT COMPONENTS

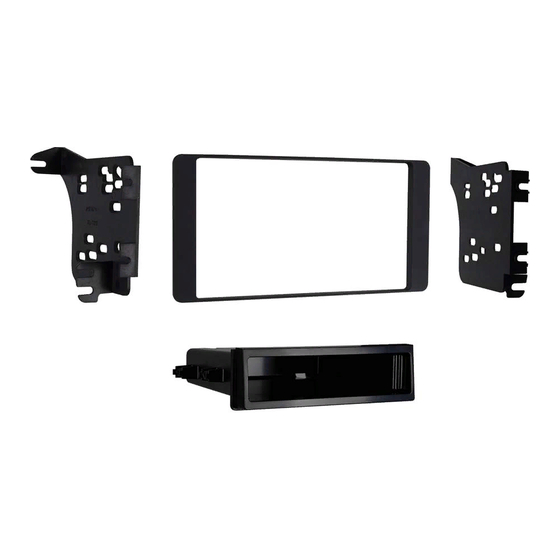

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8" Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7005 – MITO-03 Antenna Adapter: • Not required
