Nissan Multi Kit 1993-2004
KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
KIT COMPONENTS

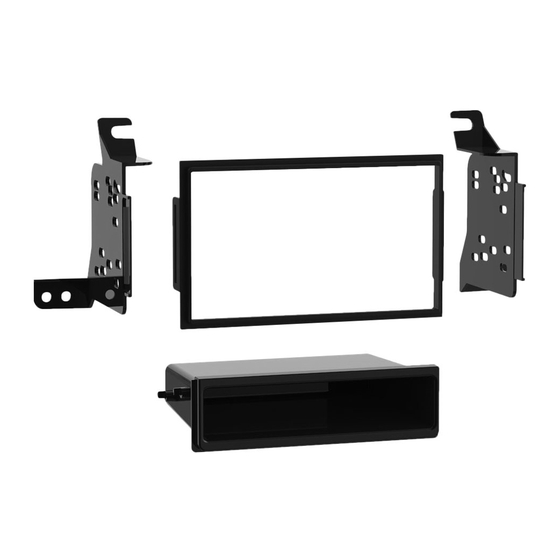

• A) ISO DDIN trim plate • B) ISO DDIN brackets • C) Radio housing • D) ISO DIN trim plate • E) Bracket set #1
• F) Bracket set #2 • G) Bracket set #3 • H) ISO DIN brackets • I) (4) #8 x 1/2 Phillips screws
A
B
METRA. The World's best kits.
Installation instructions for part 99-7431
99-7431
C
D
F
G
APPLICATIONS
See application list inside cover
metraonline.com
™
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
Antenna Adapter:
TOOLS REQUIRED
• Panel removal tool • Cutting tool
• Phillips screwdriver • Socket wrench
E
H
I
CAUTION!
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
• Please visit metraonline.com for harness options
• Please visit metraonline.com for antenna options
All accessories, switches, climate controls panels, and
© COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-7431 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 99-7431

Summary of Contents for Metra Electronics 99-7431

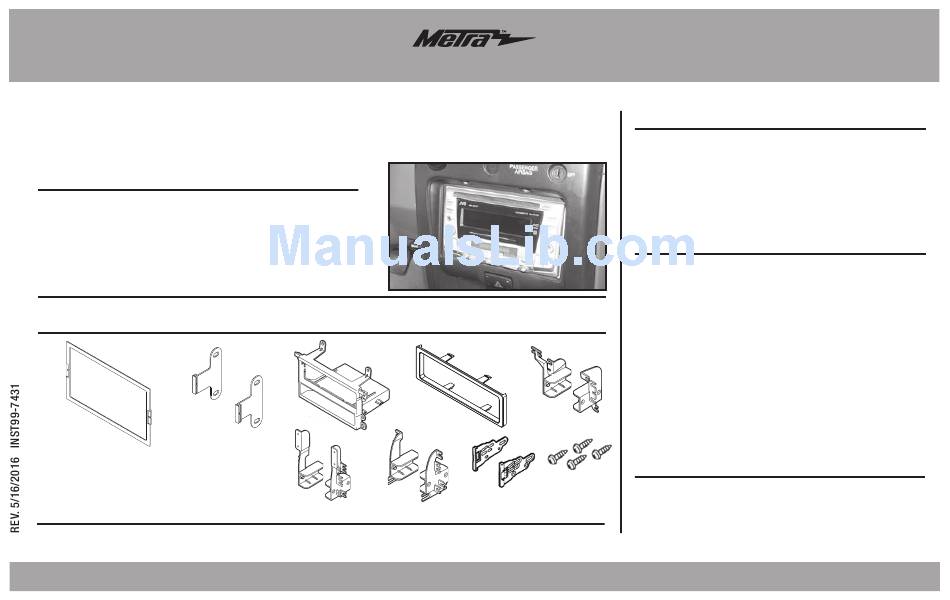

  • Page 1 Installation instructions for part 99-7431 Nissan Multi Kit 1993-2004 WIRING & ANTENNA CONNECTIONS (sold separately) 99-7431 Wiring Harness: • Please visit metraonline.com for harness options Antenna Adapter: KIT FEATURES • Please visit metraonline.com for antenna options • DIN radio provision with pocket •...

  • Page 2: Table Of Contents

    99-7431 Applications Table of Contents INFINITI NISSAN (Cont’d) Dash Disassembly ...... 3-13 Nissan (Cont’d) I-30 1996-1999 Maxima 1995-1999 - Pathfinder (without NAV) Infiniti 2001-2002 ......... 13 1997-2000 Maxima (without wrap - I-30 1996-1999 ......3 around radio) 2000-2003 - Pathfinder SE 2003-2004 .... 13 - QX4 1997-2000 ......

  • Page 3: Dash Disassembly

    99-7431 Dash Disassembly Infiniti I-30 1996-1999 Infinity QX4 1997-2000 Nissan Maxima 1995-1999 Nissan Pathfinder 1996-2000 1. Remove (2) screws from the base of the radio 1. Unclip the gear shifter trim bezel. trim bezel. (Figure A) 2. Remove (1) screw to the left of the ashtray, 2.

  • Page 4: Mercury Villager 1993-1995

    99-7431 Dash Disassembly Mercury Villager 1993-1995 Nissan Quest 1993-1995 1. Remove (1) screw above the climate controls "D" and then unclip the radio trim bezel and remove. (Figure A) "D" 2. Remove (4) Phillips screws securing the factory "D" radio housing and remove the housing and disconnect the wiring.

  • Page 5: Villager 1996-1998

    99-7431 Dash Disassembly Mercury Villager 1996-1998 Nissan Quest 1996-1998 1. Remove (4) plastic screws from the base of the storage compartment, "D" then pop out the (4) anchor clips securing the screws and remove the compartment. (Figure A) "D" 2. Remove (2) Phillips screws from the base of the radio trim bezel and "D"...

  • Page 6: Villager 1999-2002

    99-7431 Dash Disassembly Mercury Villager 1999-2002 Nissan Quest 1999-2003 1. Open the ashtray/cupholder assembly, depress the retaining clips on each side and remove the assembly. (Figure A) 2. Remove (2) Phillips screws from each side of the ashtray/cupholder assembly. 3. Remove (4) plastic rivets from the lower pocket and slide the pocket back.

  • Page 7: Nissan 200Sx 1995-1998

    99-7431 Dash Disassembly Nissan 200SX 1995-1998 Nissan Sentra 1995-1999 "A" 1. Unclip the dummy plate from the center of the switch panel (above the radio opening),then unclip the radio trim bezel and remove. (Figure A) "A" 2. Remove (4) Phillips screws securing the factory "A"...

  • Page 8: 240Sx 1995-1998

    99-7431 Dash Disassembly Nissan 240SX 1995-1998 "C" 1. Unclip the gear shifter trim bezel. 2. Remove (1) screw to the left of the ashtray, then "C" unclip and remove the ashtray assembly. "B" 3. Remove (2) screws exposed. 4. Unclip the clock/vent assembly and remove (2) screws exposed.

  • Page 9: Altima 1998-2001

    99-7431 Dash Disassembly Nissan Altima 1998-2001 "B" 1. Unclip the gear shifter trim bezel and remove (2) Phillips screws exposed. (Figure A) 2. Remove (2) Phillips screws above the radio "B" opening and unclip the radio trim bezel. (Figure A) "B"...

  • Page 10: Frontier 1998-2001

    99-7431 Dash Disassembly Nissan Frontier 1998-2001 Nissan Xterra 2000-2001 1. Remove the ashtray and (2) Phillips screws exposed in the ashtray cavity and then unclip the radio trim bezel and remove. (Figure A) "B" 2. Remove (4) Phillips screws securing the "A"...

  • Page 11: Frontier 2002-2004

    99-7431 Dash Disassembly Nissan Frontier 2002-2004 Nissan Xterra 2002-2004 1. Unclip the gear shifter trim bezel and remove. 2. Remove (2) Phillips screws exposed in the shifter cavity. "B" 3. Remove (2) Phillips screws under the climate control cluster and then "A"...

  • Page 12: Maxima (Without Wrap Around Radio) 2000-2003

    99-7431 Dash Disassembly Nissan Maxima (without wrap around radio) 2000-2003 1. Unclip the vent/radio trim bezel assembly and remove. (Figure A) 2. Remove the ashtray insert, and then (1) Phillips screw exposed. 3. Unclip the ashtray/shifter trim bezel assembly and then remove. (Figure A)

  • Page 13: Nissan (Cont'd) - Pathfinder (Without Nav) 2001-2002

    99-7431 Dash Disassembly Nissan Pathfinder (without NAV) 2001-2002 Nissan Pathfinder SE 2003-2004 "B" 1. Using a panel removal tool, pry out on the top of the vent assembly (w/ clock) and "B" remove. (Figure A) 2. Remove (2) Phillips screws from the top of "B"...

  • Page 14: Kit Preparation

    99-7431 Kit Preparation Altima, Frontier, Pathfinder, Quest, 200SX, Sentra: Villager, Xterra: 1. Cut and remove all the mounting 4. Secure the left bracket to the radio tabs from the radio housing. housing using the (2) Phillips flat 1. Cut and remove all the mounting head screws provided.

  • Page 15: Kit Assembly

    99-7431 Kit Assembly DIN radio provision with pocket ISO DIN radio provision with pocket ISO DDIN radio provision 1. Remove the metal DIN sleeve and 1. Remove the metal DIN sleeve 1. Slide the ISO DDIN brackets into trim ring from the aftermarket radio.

  • Page 16: Final Assembly

    Installation instructions for part 99-7431 Final Assembly IMPORTANT For the Nissan Maxima 1. Locate the factory wiring For the Nissan 240SX 1995-1998: If you are having difficulties with the harness and antenna (without wrap around 1. Mount the completed installation of this product, please call our...
