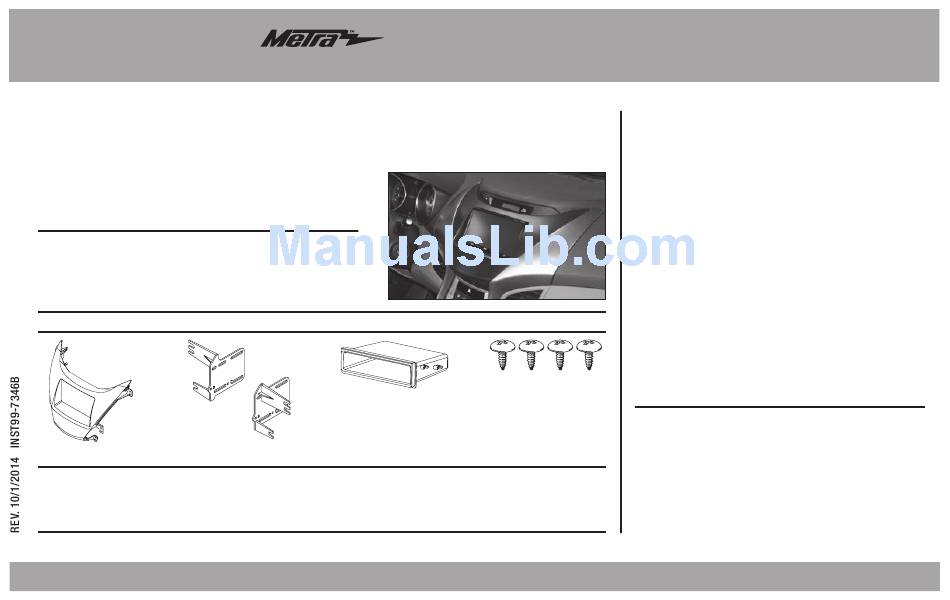

Installation Instructions for 99-7346B
Hyundai Elantra 2011-2013
KIT FEATURES
• Double DIN radio provision
• ISO DIN radio provision with pocket
• Painted black to match factory finish

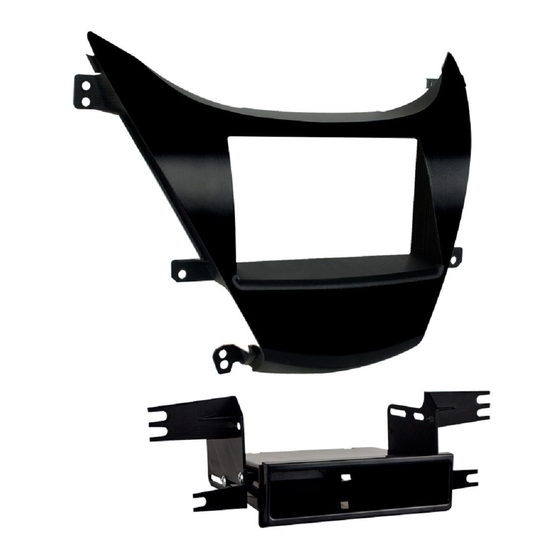

KIT COMPONENTS
• A) Radio trim panel • B) Double DIN brackets • C) Pocket • D) (4) #8 x 3/8" Truss-head Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7304 • HYBL-04
Antenna Adapter: • Not required
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Socket wrench
METRA. The World's best kits.
99-7346B
C
1-800-221-0932
™
Dash Disassembly
– Hyundai Elantra 2011-2013 ................................. 2
Kit Assembly
– Double DIN radio provision ................................... 3
– ISO DIN radio provision with pocket ...................... 3
D
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
© COPYRIGHT 2004-2014 METRA ELECTRONICS CORPORATION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-7346B
Summary of Contents for Metra Electronics 99-7346B
- Page 1 Antenna Adapter: • Not required NOTE: Refer to the instructions included with the TOOLS REQUIRED aftermarket radio. • Panel removal tool • Phillips screwdriver • Socket wrench METRA. The World’s best kits. 1-800-221-0932 metraonline.com ™ © COPYRIGHT 2004-2014 METRA ELECTRONICS CORPORATION...
- Page 2 99-7346B Dash Disassembly 1. Remove trim panels from each side of center console. (Figure A) 2. Remove (4) Phillips screws from radio trim panel. Gently pry radio trim panel from dash. (Figure B) 3. Remove (4) Phillips screws securing radio chassis to sub dash.
-
Page 3: Kit Assembly
Metra recommends using the (Figure B) proper mating adapters from Metra 4. Reassemble dash in reverse order and/or AXXESS. of disassembly using 99-7346B 4. Mount assembly into the sub dash. trim panel instead of factory panel. (Figure B) (Figure B) 5. - Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians METRA. The World’s best kits. 1-800-221-0932 metraonline.com ™ © COPYRIGHT 2004-2014 METRA ELECTRONICS CORPORATION...
- Page 5 Instrucciones de Instalacón para 99-7346B AplicAciones Indice Hyundai Elantra 2011-2013 99-7346B Desmontaje del tablero – Hyundai Elantra 2011-2013 ......... 2 Ensamble del kit – Provisión de unidad central ISO DIN con bolsillo ... 3 cArActerísticAs del kit • Provisión de unidad central ISO DIN con bolsillo –...
- Page 6 99-7346B Desmontaje del tablero 1. Quite los paneles de la moldura desde cada lado de la consola central. (Figura A) 2. Quite los (4) tornillos Phillips del panel de la moldura del radio. Quite con cuidado el panel de la moldura del radio del tablero.
- Page 7 4. Vuelva a armar el tablero al revés 4. Monte el ensamble en el de como lo desarmó, usando el sub tablero. (Figura B) panel de moldura 99-7346B en lugar del panel de fábrica. 5. Vuelva a armar el tablero al revés (Figura B) de como lo desarmó, usando el...
- Page 8 Instrucciones de Instalacón para 99-7346B EL CONOCIMIENTO ES PODER NOWLEDGE IS OWER Mejore sus habilidades de instalación y fabricación Enhance your installation and fabrication skills by inscribiéndose en la escuela de dispositivos electrónicos enrolling in the most recognized and respected mobile electronics school in our industry.
