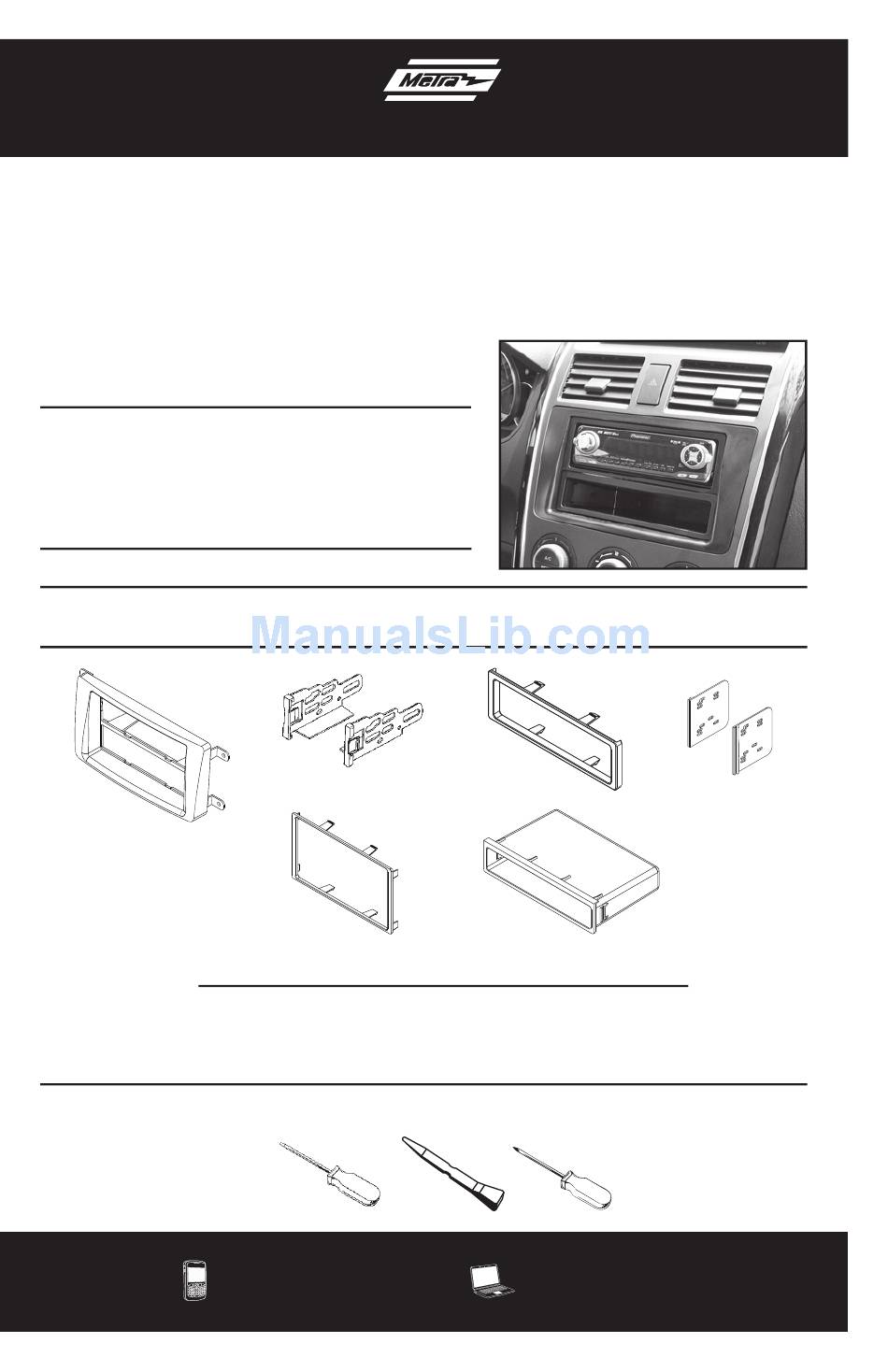

INSTALLATION INSTRUCTIONS FOR PART 99-7516B
KIT FEATURES
• DIN radio provision with pocket
• ISO radio provision with pocket
• Double DIN radio provision
• Stacked ISO units provision
• Painted matte black to match factory
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket
A
WIRING & ANTENNA CONNECTIONS (Sold Separately)
• MZTO-01 - Mazda Amp Integration Harness 2007-Up
• 70-7903T - Mazda service harness 2007-up
Small Flat Blade Screwdriver • Panel Removal Tool • Phillips Screwdriver
APPLICATIONS
Mazda CX9 2007-up
99-7516B
B
E
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
C
F
metraonline.com
D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-7516B
Summary of Contents for Metra Electronics 99-7516B
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7516B APPLICATIONS Mazda CX9 2007-up 99-7516B KIT FEATURES • DIN radio provision with pocket • ISO radio provision with pocket • Double DIN radio provision • Stacked ISO units provision • Painted matte black to match factory KIT COMPONENTS •...
- Page 2 99-7516B Table of Contents Dash Disassembly – Mazda CX9 2007-up Kit Assembly – DIN Head Unit provisions with pocket – ISO DIN head unit provisions with pocket – DDIN/stacked ISO DIN head unit provision Caution Metra recommends disconnecting the negative battery terminal before beginning any installation.
- Page 3 99-7516B Dash Disassembly 1. Unclip and remove both side panels from center radio trim panel. (Figure A) 0FM1ch1 2. Unclip and remove the shifter trim panel. (Figure B) 0FM1ch1 TUNE PUSH POWER PUSH AUDIO LOAD/ INFO 3. Remove (1) Phillips screw from the...
- Page 4 99-7516B Dash Disassembly 4. Remove (2) Phillips screws from the radio trim panel. (Figure D) 5. Unclip and remove the entire radio trim 0FM1ch1 panel including the A/C controls. (Figure D) 6. Remove (4) Phillips screws securing the radio. TUNE...
- Page 5 Kit Assembly 99-7516B DIN head unit provision with pocket 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
- Page 6 Kit Assembly 99-7516B ISO DIN head unit provision with pocket 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
- Page 7 Kit Assembly 99-7516B Double DIN head unit provision/ stacaked ISO DIN head unit provision 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
- Page 8 INSTALLATION INSTRUCTIONS FOR PART 99-7516B METRA. THE WORLD’S BEST KITS.™ metraonline.com 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
