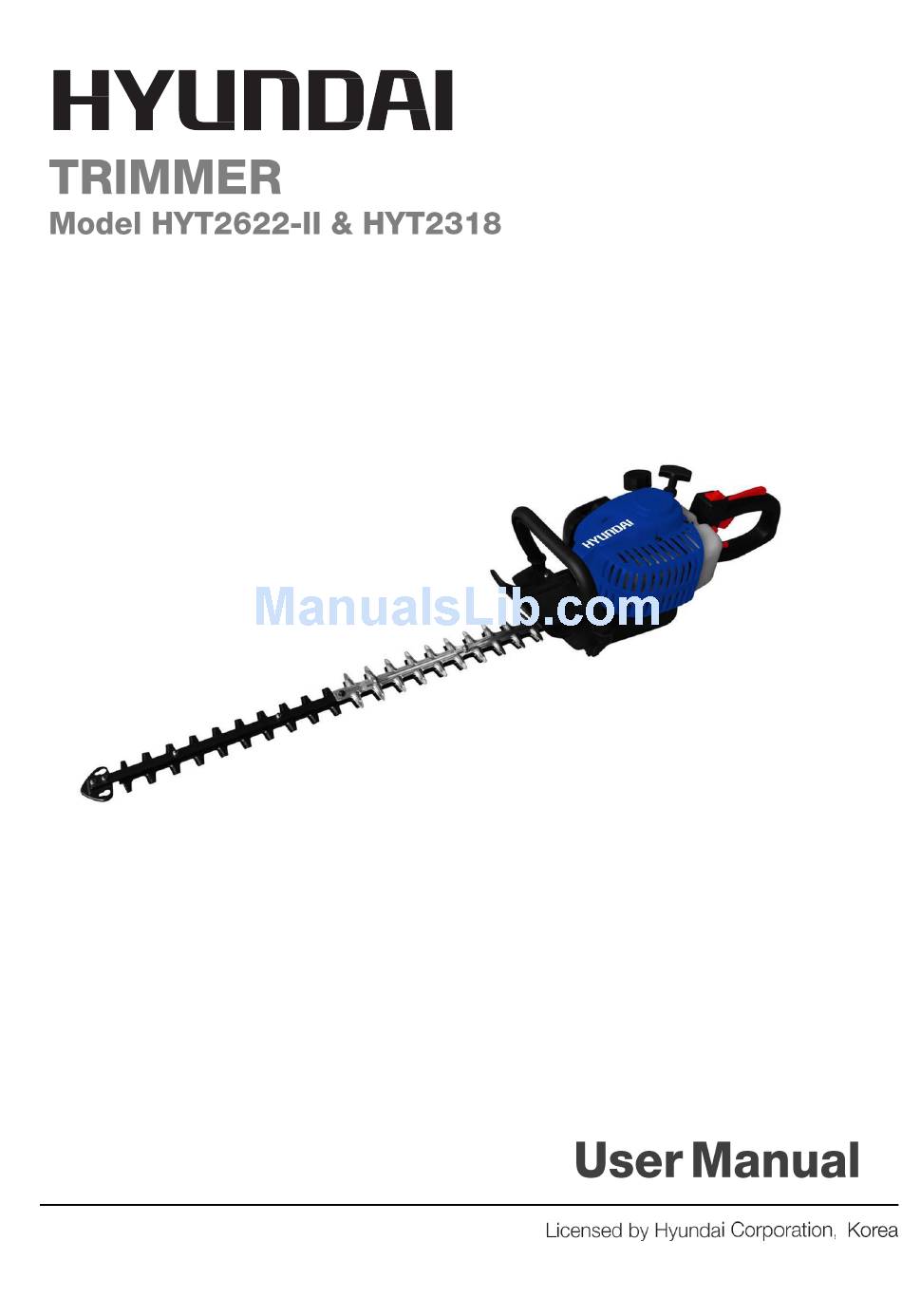

Hyundai HYT2622-II User Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Trimmer
  5. HYT2622-II
  6. User manual

Hyundai HYT2622-II User Manual

Hide thumbs Also See for HYT2622-II:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYT2622-II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai HYT2622-II

Summary of Contents for Hyundai HYT2622-II

  • Page 2: Table Of Contents

    CONTENTS o’s Page N Section Description 1. SAFETY 3 - 6 2. MACHINE PARTS 3. OPERATING PROCEDURES 7 - 12 4. MAINTENANCE 13 -17 5. TROUBLESHOOTING 6. STORAGE 7. SPECIFICATION 8. SPARE PARTS 20 – 25 9. GENPOWER CONTACT DETAILS 10.

  • Page 3: Safety

    1. SAFETY. 1.1. The operator of the machine; 1.1.1. Is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. 1.1.2. Should never leave it in a condition which would allow an untrained or unauthorised person/s to operate this machine.
  • Page 4 1.3. Carbon Monoxide 1.3.1. Carbon monoxide is a colourless and odourless gas, inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2. The symptoms of Carbon monoxide poisoning can include the following; Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
  • Page 5 1.4.7. Dispose of waste fuels correctly. 1.5. Petrol safety. 1.5.1.1. Always fuel and defuel in well-ventilated area. 1.5.1.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.5.1.3.
  • Page 6 1.6.8. Always use certified replacement sourced from the manufacturer. Only use genuine Hyundai spare parts. 1.6.9. Under no circumstances should you ever take the product apart or alter it in any way even if the item is faulty. You may damage or cause further harm by taking the product apart and you will void your warranty in doing so.

  • Page 7: Machine Parts

    2. MACHINE PARTS 3. OPERATING PROCEDURES The hedge trimmer is fitted with a two-stroke engine, so oil and fuel must be mixed, see specification section. DO NOT modify unit in any way. Always remove the HT lead from the spark plug when checking the machine or changing parts Always wear correct PPE, Recommended but not limited to.
  • Page 8 3.1.3. Always mix fuel and oil in a separate clean container. 3.1.4. Start by mixing half of the required fuel with the whole amount of oil, mix (shake) the fuel oil mixture. 3.1.5. Add the remainder of the fuel. 3.1.6. Re-mix the fuel oil mixture. 3.2.
  • Page 9 3.3.2. Check the blade guard. 3.3.2.1. The blade guard (A) it WILL NOT protect against any part of the body coming into contact with the blades (B). 3.3.2.2. Check the blade guard is not worn or damaged. 3.3.2.3. Replace the blade guard if it is damaged. 3.4.
  • Page 10 When the engine is started for the very first time. It may require a number of attempts to start. 3.5.6. Turn the choke lever to the run positon once the engine started. 3.5.7. After starting the engine, press the throttle trigger to release the throttle trigger lockout. Let the engine run for 2 to 3 minutes so that it warms up before subjecting it to any load.
  • Page 11 3.6.9. Vertical cutting. 3.6.9.1. Use an arc cutting style from the bottom upwards, then downwards to use both sides of the blades. 3.6.10. Horizontal cutting. 3.6.10.1. In order to get the best cutting results, slightly tilt the blade (5-10°) towards the cutting direction. 3.6.11.
  • Page 12 3.6.12. Handle adjustment. (This for the HYT2622-II model only) Do not press the throttle trigger during this operation! To reduce fatigue when trimming hedges, the rear handle can be swivelled to 3 positions, left to 90°, or right to 90°.

  • Page 13: Maintenance

    4. MAINTENANCE 4.1. Routine maintenance. 4.1.1. Good maintenance is essential for safe, economical and trouble-free operation. It will also help reduce air pollution. 4.1.2. The purpose of the maintenance and adjustment schedule is to keep the machine in the best operating condition. 4.1.3.
  • Page 14 MAINTENANCE should be carried out at REGULAR Every three Every six INTERVALS in each of the Monthly or Before use months or months indicated months or after a after 25 Every time after 50 or after 100 certain number of hours of hours hours hours...
  • Page 15 4.2. Air filter. The use of petrol or combustible solvents for cleaning can cause re or explosion. Therefore only use soap water or non-combustible solvent. Never operate the machine without the air filter. N.B If using a solvent you must make sure you read the instructions on use and limitations.
  • Page 16 4.3.1.8. Install/reinstall the spark plug carefully by hand. 4.3.1.9. Once the spark plug has been seated, tighten it with a spark plug wrench. 4.3.1.10. Push the spark plug cap onto spark plug. 4.3.2. Cleaning. 4.3.2.1. Keep your machine clean, the outside of the machine can be cleaned using a damp soft cloth with a mild detergent if required, never use water to clean the machine as it may cause damage to internal parts.
  • Page 17 4.3.4.4. When the idle speed is correctly adjusted when the engine runs smoothly in every position. There should also be a clear margin to the speed at which the blades start to move. The blades must also remain stationary when in the fast/idle position. 4.3.5.

  • Page 18: Troubleshooting

    5. TROUBLESHOOTING 5.1. Engine Troubleshooting - N.B. all corrective actions should be carried out by suitably qualified person/s. Problem Check Status Cause Remedy Fuel filter blocked Clean or replace. Fuel line blocked or Clean or replace. Fuel at No fuel at clogged Carburettor Carburettor...

  • Page 19: Specification

    6.1.7. Store the machine in dry and well ventilated surroundings and with the fuel tank empty. 6.1.7.1. Do not store fuel next to the machine. Failure to do so may cause corrosion to the carburettor. 7. SPECIFICATION MODEL HYT2318 HYT2622-II Engine Type 1E32FN 1E34F-2 Engine Size cc 25.4 Fuel tank capacity ml...

  • Page 20: Spare Parts

    8. SPARE PARTS HYT2622-II Page 20 Rev 2...
  • Page 21 HYT2622-II Description Description Front housing Cylinder Screw St4.2x13 Outlet gasket Screw set M4x10 Muffler housing Hex screw set M5x20 Hex screw M5x65 Spark plug Screw ST4.8x19 Chock lever Front handle Air filter seat Hex screw M4x16 chock door Screw set M4x15...
  • Page 22 Description Description Screw ST4.2x16 Up bracket Blade cover Bottom Spring Blade support Hex screw M6x25 Hex screw M5*12*8 Lower bracket Screw M5x20 Gear case cover Feather felt Spring Upper blade Orientation trigger Lower blade Hinge Bushing ￠5.1x8x5.4 Accelerator trigger Blade washer ￠5 Spring Bolt M5x18 Ripple tube...
  • Page 23 HYT2318 Page 23 Rev 2...
  • Page 24 HTR2318 – Base parts Position Description Quantity Position Description Quantity Screw Felt Left handle Washer Throttle Washer Spring Needle bearing hand grip Gear case lid Cable comp Screw Stop button comp Front handle Right handle Screw Screw Front Baffle Washer Washer Safeguard Rubber Damping...
  • Page 25 HTR2318 – Engine parts Position Description Quantity Position Description Quantity Ring, piston Oil seal 12×22×7 Piston Rotor Pin,piston8*25.5 Nut M8*1.25 Ring, snap Starter comp Needle bearing Bolt M5×16 Crank shaft assembly Long fuel pipe Gasket, crankcase Fuel pipe plug PIN B3×10 Fuel filter comp Rear crankcase air deflector...

  • Page 26: Genpower Contact Details

    12. GENPOWER CONTACT DETAILS 12.1. Postal address; Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. 12.2. Telephone and Fax contact numbers; Office +44 (0) 1646 687880 12.3. Email contact; Technical service@genpower.co.uk 12.4. Web site; www.hyundaipowerequipment.co.uk Page 26 Rev 2...

  • Page 27: Declarations Of Conformity

    10. DECLARATIONS of CONFORMITY 10.1. Genpower Ltd confirms that these Hyundai products conform to the following CE Directives; 10.1.1. 2006/42/EC Machinery Directive 10.1.2. 2004/108/EC EMC Directive 10.1.3. 2000/14/EC Noise Emissions Directive 10.1.4. 97/68/EC NRMM Emissions Directive Page 27 Rev 2...
  • Page 28 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
