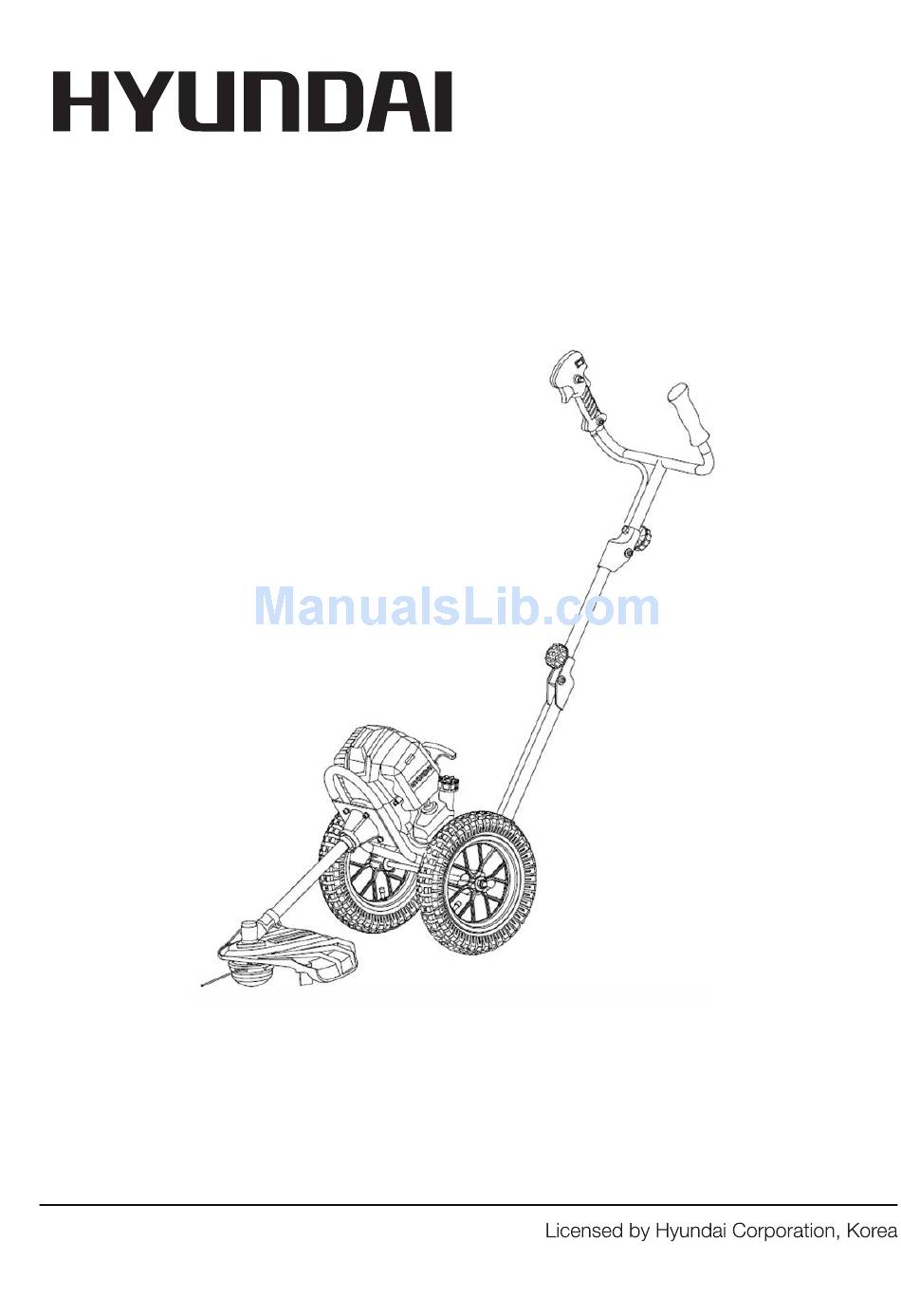

  • Page 1 WHEELED TRIMMER Model HYWT5080 User Manual...
  • Page 2 Page 2 Rev 2...

  • Page 3: Table Of Contents

    TABLE of CONTENTS 1. SAFETY 4 – 8 2. SPECIFICATION 3. COMPONENT LOCATIONS 4. ASSEMBLY 11 – 13 5. FUEL 13 – 14 6. STARTING/STOPPING& USING MACHINE 13 – 17 7. MAINTENANCE 17 – 19 8. STORING THE MACHINE 9. TROUBLESHOOTING 10.

  • Page 4: Safety

    1. SAFETY 1.1 The operator of the machine is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Please note the following safety points. 1.2 The machine should never be left it in a condition which would allow an untrained or unauthorised person/s to operate this machine.
  • Page 5 Carbon monoxide. 1.3.1 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2 The symptoms of carbon monoxide poisoning can include but not limited to the following;...
  • Page 6 1.4.3 Hot work on tanks that have contained fuel is extremely dangerous and should not be carried out. 1.4.4 Keep work area clean and tidy. 1.4.5 Clean up all spills promptly using correct methods i.e. absorbent granules and a lidded bin. 1.4.6 Dispose of waste fuels correctly.
  • Page 7 1.7.2 Noise emissions for this equipment is unavoidable. Carry out noisy work at approved times and for certain periods. Limit the working time to a minimum. For your personal protection and protection of people working nearby it is advisable for them to wear hearing protection. 1.8 Additional safety guidelines.
  • Page 8 other unstable surface. 1.8.1.15 Children must not have access to the machine. 1.8.1.16 Spectators should be kept at a safe distance from the work area, and at least 15 meters. 1.8.1.17 Keep hands and feet away from the nylon cutting head during operation.

  • Page 9: Specification

    2. SPECIFICATION MODEL HYWT5080 Single cylinder, 2 stroke, air-cooled engine, Engine Type 1E43F-B Engine size cc 50.8CC Fuel tank capacity ml 800ml Noise Level DB Rated power kw 1.56kw Rated speed rpm 7500rpm Start Method Recoil Clutch type Centrifugal type Fuel ratio/ Fuel type 40:1 Semi-Synthetic –...

  • Page 10: Component Locations

    3. COMPONENT LOCATIONS 3.1. Engine. 1 – Choke lever 2 – Air filter cover 3 – Primer bulb 4 – Fuel tank 5 – Spark arrester/exhaust 6 – Starter recoil handle 3.2. Machine. 1 – Throttle handle 2 – Upper shaft 3 –...

  • Page 11: Assembly

    4. ASSEMBLY Always stop the machine and allow it to cool before carrying out any work. 4.1 Handle assembly. 4.1.1 Lower handle assembly (1). 4.1.2 Fold out handle assembly (2). 4.1.3 Fold out top handle (3). 4.1.4 Once fully folded out use the 3 supplied knobs (5) 4.2 Shaft assembly.
  • Page 12 4.3 Guard and head assembly. 4.3.1 Align the guard (1) with head of shaft. 4.3.2 Place protection ring (2) over shaft. 4.3.3 Using the three screws (3) through ring and into shaft head then tighten. 4.3.4 Place head spacer (4) over shaft the tighten the Head (5).

  • Page 13: Fuel

    4.1.3. To insert new cord cut two lengths of cord at 255mm push 1 piece into reel as shown below. Then rotate reel 180 degrees and repeat process for second piece of cord. There is no need to remove the head from the machine. 5.

  • Page 14: Starting/Stopping& Using Machine

    5.2.6. Check after refueling if the fuel tank cap is properly closed. 5.2.7. Avoid any spillage of petrol make sure all spillages are cleaned up immediately. 5.2.8. Keep the machine away from children. 6. STARTING/STOPPING & USING THE MACHINE 6.1. Engine - Cold start. 6.1.1.
  • Page 15 6.2. Engine - Warm start. 6.2.1. Fill the machine with fuel as described in section 5. 6.2.2. Turn the power switch (1) to the on position (I). 6.2.3. Set the machine on a firm and flat surface. 6.2.4. Move the choke lever (5) to the lower (open) position.
  • Page 16 6.4.2. Do not run the machine slowly. 6.4.3. Maneuverer the cutting head of the trimmer horizontally from one side to the other. 6.4.4. Keep cutting deck parallel with the ground. Do not tilt the nylon cutting head during operation. 6.4.5. For correct cutting height trim in advance in a test area.

  • Page 17: Maintenance

    6.6.2. The nylon cutting line releases automatically. 6.6.2.1. The knife edge mounted on the shield cuts off excessive line 6.6.3. When trimming near brick/stone walls the nylon line will wear out quicker. 7. MAINTENANCE 7.1. Maintenance schedule. Maintenance cycle Every 3 Every 6 Every 12 Every 24...
  • Page 18 a = Increase maintenance intervals if operating in dusty environments. b = All maintenance operations - except those listed in the operating instructions, must be performed by qualified service personnel 7.2. Cleaning the air filter Never let the engine run without the air filter. A dirty air filter presses on the engine performance, increases fuel consumption and makes it difficult to start.
  • Page 19 7.3.5. Check the spark plug (4) visually for damage and electrode consumption, remove the carbon deposits. 7.3.6. Check the gap with a feeler gauge and turn the electrode on the right distance of 0.6 to 0.7mm. 7.3.7. Check the washer of the spark plug (4) and turn the spark plug with a torque 12-15 Nm.

  • Page 20: Storing The Machine

    8. STORING THE MACHINE If you do not follow these steps, deposit may arise in the carburetor. This will cause starting difficulties and may cause permanent damage 8.1. Perform all the general maintenance that the maintenance section of your ‘User Manual’...

  • Page 21: Troubleshooting

    9. TROUBLESHOOTING If troubleshooting does not solve the problem, contact your dealer or the manufacturer directly. Use only original parts approved by the manufacturer. 9.1 Difficulties in starting. Situation Cause Solution Clean the spark plug. Adjust the Carbon deposit between electrodes Spark plug gap to 0.6 ~ 0.7mm, of the spark plug...

  • Page 22: Disposal Of Machine

    10. DISPOSAL OF MACHINE 10.1. Should it become necessary to dispose of your machine please contact your local Council for the disposal advise of the device, or take unit to your local recycling center. Make sure all oil and fuel is correctly disposed of either beforehand or at amenity center.

  • Page 23: Contact Details

    12. GENPOWER CONTACT DETAILS Postal address; Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW,UK. Telephone contact number; +44 (0) 1646 687880 Email contact; Technical – service@genpower.co.uk Web site; www.hyundaipowerequipment.co.uk Page 23 Rev 2...
