GRASS TRIMMER
Model HYTR33
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYTR33 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HYTR33

Summary of Contents for Hyundai HYTR33

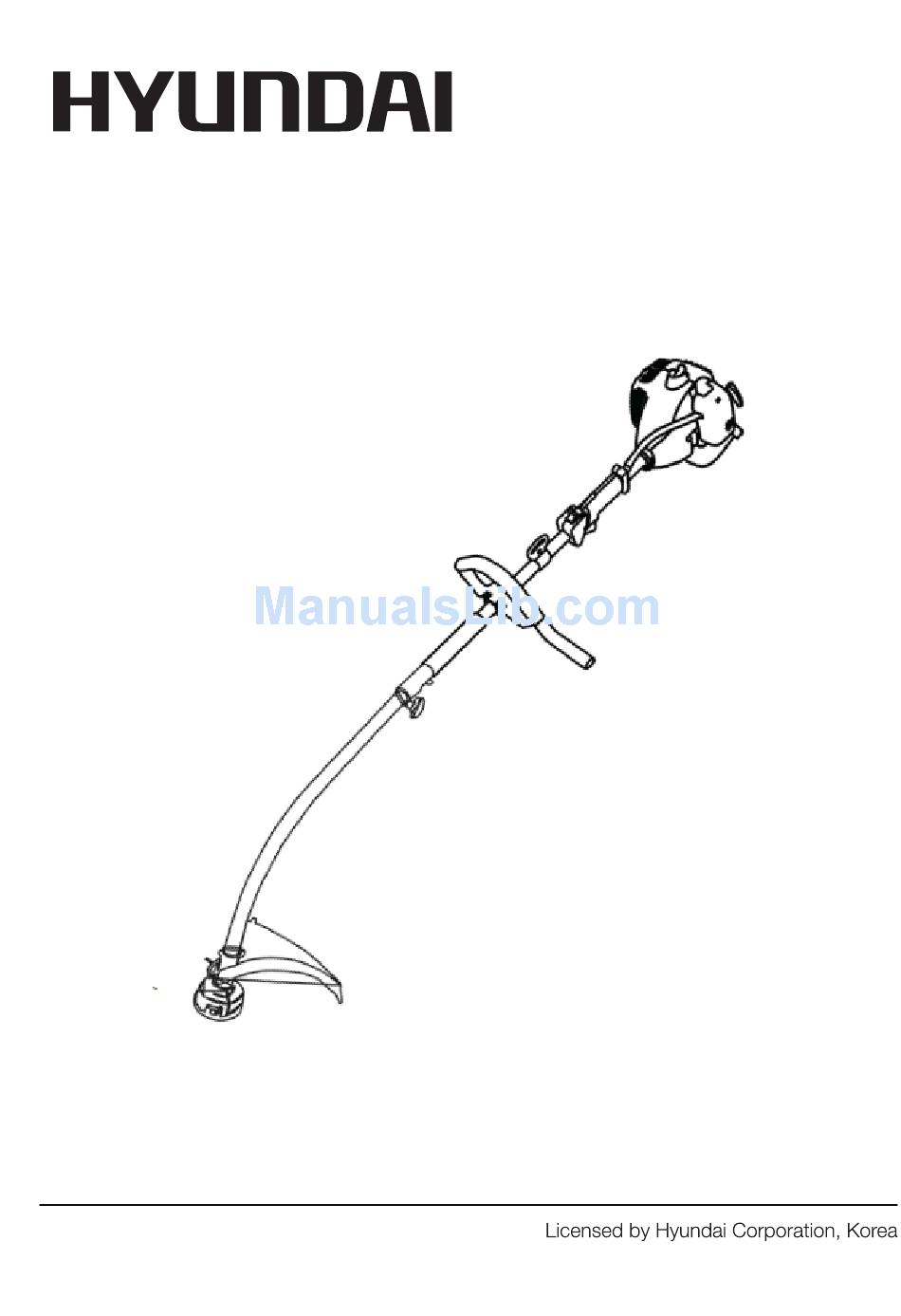

  • Page 1 GRASS TRIMMER Model HYTR33 User Manual...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY 3 - 6 2. MACHINE COMPONENT LOCATIONS 3. ASSEMBLY AND INITIAL OPERATION 6 - 8 4. OPERATION 8 -10 5. INSPECTION AND MAINTENANCE 11 - 12 6. TRANSPORATION AND STORAGE 7. SPECIFICATION 8. TROUBLESHOOTING 9. DECLARATION OF CONFORMITY Page 2 Rev 2...

  • Page 3: Safety

    1. SAFETY. 1.1. The operator of the machine; 1.1.1. Is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. 1.1.2. Should never leave it in a condition which would allow an untrained or unauthorised person/s to operate this machine.
  • Page 4 1.3. Carbon Monoxide 1.3.1. Carbon monoxide is a colourless and odourless gas, inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2. The symptoms of Carbon monoxide poisoning can include the following; Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
  • Page 5 1.4.7. Dispose of waste fuels correctly. 1.5. Petrol safety. 1.5.1.1. Always fuel and defuel in well-ventilated area. 1.5.1.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.5.1.3.
  • Page 6 1.6.8. Always use certified replacement sourced from the manufacturer. Only use genuine Hyundai spare parts. 1.6.9. Under no circumstances should you ever take the product apart or alter it in any way even if the item is faulty. You may damage or cause further harm by taking the product apart and you will void your warranty in doing so.

  • Page 7: Machine Component Locations

    2. MACHINE COMPONENT LOCATIONS 2.1 Power unit. 1 Start handle 2. Air filter 3. Throttle lockout 4. Stop switch 5. Front handle 6. Unit locking screw 7. Throttle lock 8. Throttle trigger 9. Fuel tank 10. Choke lever 11. Primer Bulb 12.

  • Page 8: Operation

    3.2 Grass trimmer. 3.3 Fuel information. 3.3.1 Refuelling: 3.3.1.1 For air-cooled 2-stroke engines, mix unleaded petrol thoroughly with synthetic 2-stroke oil at 40:1 ratio or mineral 2-stroke oil at 25:1 ratio. 3.3.2 TIP - Always prepare 1 litre of the mix at a time because the mix turns unusable after prolonged storage.
  • Page 9 4.1.4 Push the primer bulb 3-5 times. 4.1.5 Push throttle lock and throttle trigger to accelerate. 4.1.6 Push the throttle lock in at this position (cold). 4.1.7 Start the machine by carefully pulling the starter cable. Do this whilst holding the machine against the ground.
  • Page 10 4.2 Spark plug check or replacement. 4.2.1 Pull the spark plug cover off, unscrew the plug using the plug wrench and replace it. 4.2.2 If you are checking the spark plug remember to clean it and check that it is correctly adjusted.

  • Page 11: Inspection And Maintenance

    5.2.3 Never repair cutting attachments this may result in serious injury. 5.2.4 Never attempt maintenance that is not outlined in this manual. All repair work must be carried out by a Hyundai Authorised Service Centre. 5.2.5 Refer to the following table for routine maintenance.

  • Page 12: Transporation And Storage

    5.2 Continued - Maintenance chart. 6. TRANSPORTATION AND STORAGE 6.1 When transporting the machine take the following actions: 6.1.1 Stop the machine and drain the fuel tank before transporting. 6.1.2 If transporting in a vehicle secure the machine to prevent damage whilst the vehicle is in motion.

  • Page 13: Specification

    7. SPECIFICATION Page 13 Rev 2...

  • Page 14: Troubleshooting

    8. TROUBLESHOOTING Page 14 Rev 2...

  • Page 15: Declaration Of Conformity

    9. DECLARATION OF CONFORMITY Genpower Ltd confirms that this Hyundai product conforms to the following CE directives: 2006/42/EC Machinery directive 2004/108/EC EMC directive 2000/14/EC Noise emissions directive 97/68/EC NRMM Emissions directive Page 15 Rev 2...
  • Page 16 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
