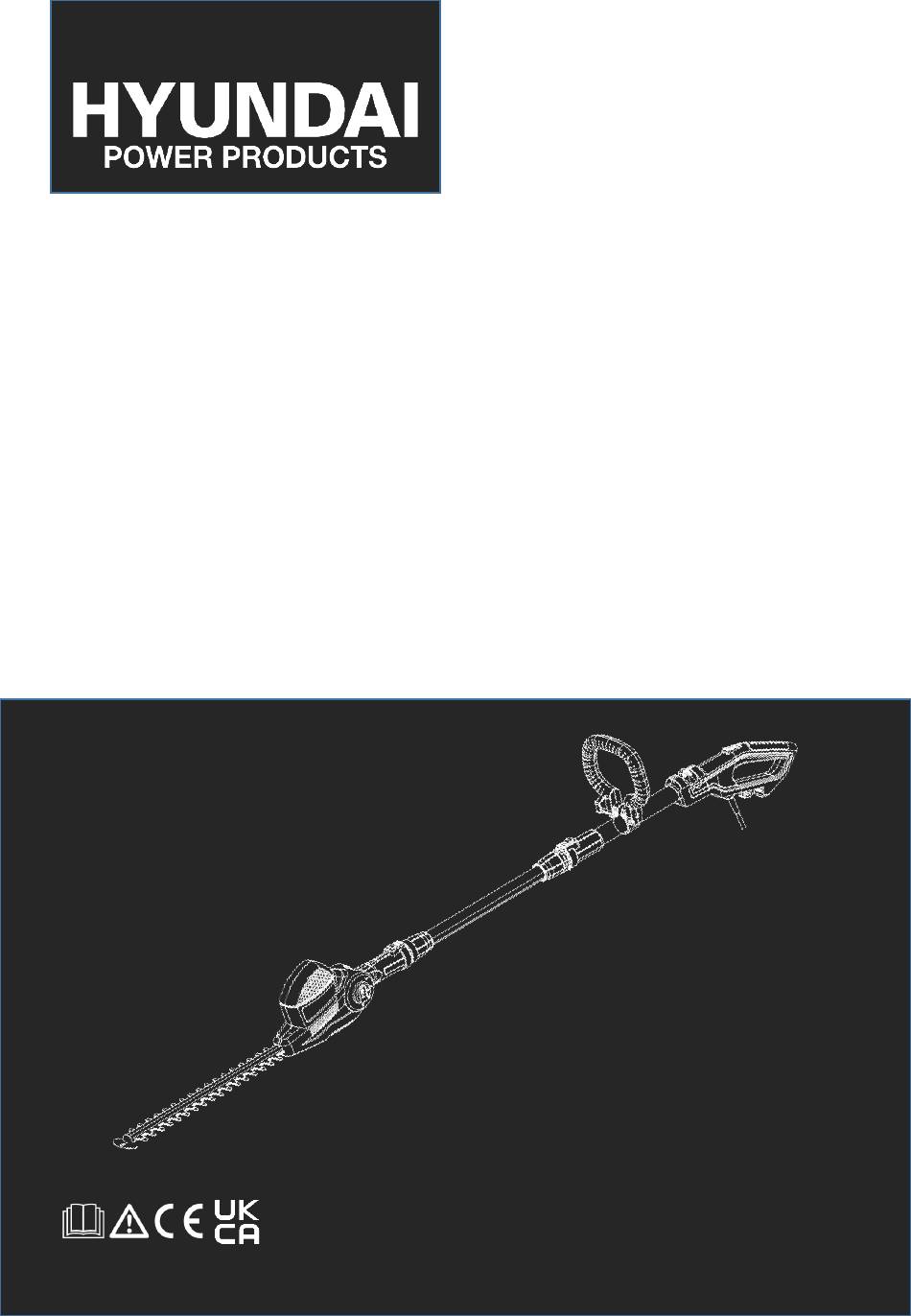

- Page 1 POLE HEDGE TRIMMER HYPHT550E Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Contents Introduction……..……………………………3 Specifications……………………....33 Safety Information…..………………….4-14 Recycling And Disposal..………………...34 Understand Your Machine.…..…………...4 Personal Safety...…….……………………4-5 Declaration Of Conformity…..…………..35 Inspect Your Machine…………………..5 Work Area…….……………………………..6 Notes…………………………………………36 During Use…….……………………………..7 Batteries…….…………………………………8 Useful Information…..……………………..37 Electricity…….……………………………..8-9 Our YouTube Channel…..………………..37 Double Insulated Devices…..……..9 Manual Updates….……………………….37 Vibrations….…………………………..10 Returning Your Product….……………….37 Noise…….……………………………..10 Leaving A Review….……………………...37 Residual Risks…………………....10... -
Page 3: Introduction.........................................3 Specifications
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information...........................4-14 Recycling And Disposal
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Work Area
Safety Information Work Area • You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area. -
Page 7: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Never attempt to make any adjustments, while the machine is running. •... -
Page 8: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. -
Page 9: Double Insulated Devices
Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. •... -
Page 10: Residual Risks
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 11: Intended Use

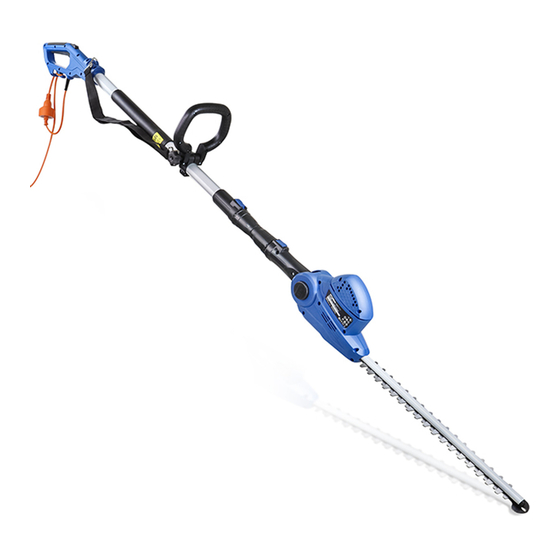

Intended Use The HYPHT550E is an electric pole hedge trimmer from HYUNDAI. The HYPHT550E has a cutting length of 450mm and is powered by a 550W HYUNDAI motor. This machine is a garden tool and precisely a pedestrian controlled pole hedge trimmer The machine is manufactured according to the latest safety requirements. -
Page 12: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 13: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement. - Page 14 Safety Information Symbols On The Machine (Continued) Symbol Description Symbol Description Head protection must be Foot protection must be worn. worn. Protective clothing must Sharp blades can cut be worn. limbs. Face shield must be worn. Keep bystanders at a safe distance away from the work area.
-
Page 15: Unboxing.............................................15 Contact Us
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 16: In The Box
In The Box *Not To Scale Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 17 In The Box Telescopic Pole The cutting head attachment (B) connects to this. You can extend the length of the pole. Cutting Head Attachment Attach this onto the telescopic pole (A). Shoulder Strap This will take the strain to help make the work more comfortable. Cable Tidy For Storage You can use this to wrap the cable around when in storage to keep the cable tidy.
-
Page 18: Features
Features Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 19 Features Telescopic Pole The cutting head attachment (B) connects to this. You can extend the length of the pole. Cutting Head Attachment Attach this onto the telescopic pole (A). Power Cable D-Handle This handle is for extra support. You can fold it down when not in use by using the D-Handle Knob (H).
-
Page 20: Assembly
Assembly Assembly Overview There are 7 steps to the assembly: STEP 1. Attach The Cutting Head STEP 2. Attach The D-Handle STEP 3. Attach The Shoulder Strap STEP 4. Connecting Cable STEP 5. Cable Tidy On Handle STEP 6. Extending The Pole STEP 7. -
Page 21: Attach The D-Handle
Assembly STEP 2 : Attach The D-Handle 1. Attach the D-handle (F) to the support (G). 2. Screw in the D-handle knob (H). 3. You can unscrew the D-handle knob (H) to loosen the D-handle (F) and then you can fold it down against the machine or change the angle of it. You must then tighten the knob (H) once you are happy with the position of the D-handle (F). - Page 22 Assembly STEP 3 : Attach The Shoulder Strap 1. Attach the shoulder strap (C) in both places shown in the image below using the clips on the shoulder strap. Continued on next page www.hyundaipowerproducts.co.uk...
-
Page 23: Attach The Shoulder Strap
Assembly STEP 3 : Attach The Shoulder Strap (Continued) 2. You can use the adjust the length of the shoulder strap to fit you by using the adjuster on the strap. STEP 4 : Connecting Cable 1. Line the plug up with the two holes and push into place. www.hyundaipowerproducts.co.uk... -
Page 24: Cable Holder On Handle
Assembly STEP 5 : Cable Holder On Handle Make sure the machine is disconnected from power before you do this. If the machine is plugged in, you may accidentally press the trigger. This holds the cable in place while in use and prevents strain on the cable. 1. -
Page 25: Extending Pole
Assembly STEP 6 : Extending The Pole YOU MUST disconnect the plug from the power supply first. 1. Pull back the tab (R) and loosen the telescopic handle collar (M) to the unlock position. 2. Slide the telescopic pole (A) to the length you require. 3. -
Page 26: Remove Blade Cover
Assembly Step 7 : Remove Blade Cover 1. Remember to remove the blade cover (S) before use. 2. You can put the blade cover back onto the blade when you are storing or transporting the machine. Be careful of the blades when doing this. www.hyundaipowerproducts.co.uk... -
Page 27: Operation
Operation Adjusting Pivoting Head YOU MUST disconnect the plug from the power supply first. CAUTION : Do not place hand between picoting head and threaded base. Failure to follow this caution could result in a pinch point injury. 1. Place the hedge trimmer on a sturdy flat surface. 2. -
Page 28: Choosing The Correct Angle
Operation Choosing The Correct Angle Make sure you are using the correct angle when working. If you do not angle the head correctly, you will not be able to see what you are cutting. -45° 0° You can use the 0° angle to cut the You can use the 45°... -
Page 29: Cutting Tips
Operation Cutting Tips When operating the hedge trimmer, keep the extension cord behind the trimmer. Never drape it over the hedge being trimmed. • Do not force the hedge trimmer through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace. •... -
Page 30: Stopping
Operation Starting YOU MUST read and understand the full safety instruction manual before starting the machine. 1. Before connecting to the mains supply, always check the switch is in the off position. 2. Press down on the trigger safety switch (I). 3. -
Page 31: Maintenance & Care
Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 32: Troubleshooting
Maintenance & Care Troubleshooting NOTE : All corrective actions should be carried out by suitably qualified person/s. Problem Possible Cause Possible Solution Machine will not start. Fuse in mains plug blown Check fuse in mains plug / faulty and replace is necessary. Internal wiring fault. - Page 33 Technical Data Specification Model HYPHT550E Voltage 230V Frequency 50Hz Input Power 550W Blade Length 450mm A-Weighted Sound Pressure Level LpA 84.6dB(A) Uncertainty K 3dB(A) A-Weighted Sound Power Lever LWA 101dB(A) Uncertainty K 3dB(A) Declaration Of The Vibration Emission Front Handle 3.024m/s Rear Handle 2.306m/s...
- Page 34 Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.
-
Page 35: Declaration Of Conformity
Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 550W Pole Hedge Trimmer SKU Code: HYPHT550E Date of Issue: 12/03/2021 Regulations and Directives of Compliance • 2006/42/EC The Machine Directive • 2014/30/EU EMC Directive • 2000/14/EC Noise Emissions •... -
Page 36: Notes
Notes www.hyundaipowerproducts.co.uk... -
Page 37: Useful Information
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 38: Product Record
Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:……………………………………………………………………………….. - Page 39 Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk...
- Page 40 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
