Hyundai HYTR60Li User Manual

Hyundai HYTR60Li User Manual

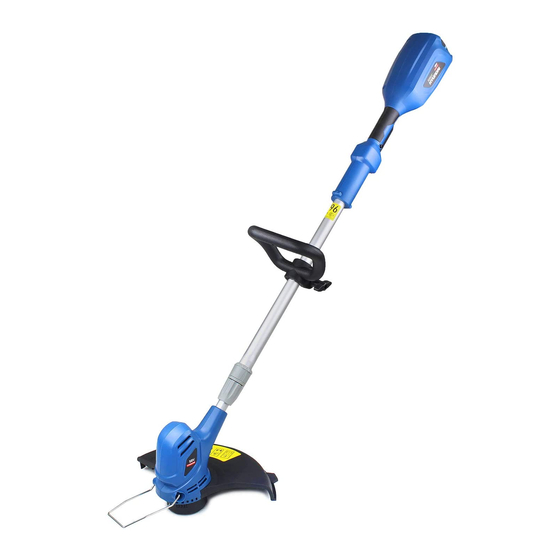

60v battery powered grass trimmer

Advertisement

60V BATTERY POWERED GRASS TRIMMER
HYTR60Li
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYTR60Li and is the answer not in the manual?

Questions and answers

Paddy Ryan
May 12, 2025

How to change head

1 comments:
Mr. Anderson
May 20, 2025

To change the head on a Hyundai HYTR60Li, pull back on the rear collar and rotate the head through 180 degrees. This allows you to switch between trimming and edging modes.

This answer is automatically generated

Paddy Ryan
May 12, 2025

How to change head of battery strimmer

Summary of Contents for Hyundai HYTR60Li

  • Page 1 60V BATTERY POWERED GRASS TRIMMER HYTR60Li User Manual...
  • Page 2: Table Of Contents

    Contents General power tool safety warnings............... 03 Work area safety..................... 03 Electrical safety....................... 04 Personal safety......................04 Power tool use and care… ..................05 Battery tool use and care… ..................06 Service… ......................... 07 Special safety instructions ..................08 Symbols ........................
  • Page 3: General Power Tool Safety Warnings

    General power tool safety warnings General power tool safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING! Read all safety warnings designated by symbol and all instructions.
  • Page 4: Electrical Safety

    General power tool safety warnings Electrical safety · Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ·...
  • Page 5: Power Tool Use And Care

    General power tool safety warnings · Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. · Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source and/ or battery pack, picking up or carrying the tool.
  • Page 6: Battery Tool Use And Care

    General power tool safety warnings · Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. · Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
  • Page 7: Service

    General power tool safety warnings battery pack may create a risk of fire when used with another battery pack. · Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. ·...
  • Page 8: Special Safety Instructions

    Special safety instructions Important! Read carefully before use! Keep for your reference. WARNING! When using the product the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before operating the product. Please keep the instructions safe for later use.
  • Page 9 Special safety instructions product. · Before using the product and after any impact, check for signs of wear or damage, and repair as necessary. · Always disconnect the product from the power supply (i.e. remove the plug from the power supply or the battery pack) in the following situations: - whenever leaving the product unattended;...
  • Page 10 Special safety instructions pack) and check for damage after use. · Disconnect the product from the power supply (i.e. remove the plug from the power supply or the battery pack) before carrying out maintenance or cleaning work. · Use only the manufacturer’s recommended replacement parts and accessories.
  • Page 11 Special safety instructions · Do not place any object on top of the charger as it could cause overheating. Do not place the charger near any heat source. · Do not use an extension cord unless it is absolutely necessary. The use of an improper extension cord could cause the risk of fire, electric shock or electrocution.
  • Page 12 Special safety instructions quickly with water. If the leakage gets in your eyes flush your eyes with clean water for a minimum of 10 minutes and seek immediate medical attention. · Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks open or cracks, immediately discontinue its use and do not recharge it.
  • Page 13 Special safety instructions · Ensure that the product is in good condition and well maintained. · Use correct accessories/attachments for the product and ensure they are in good condition. · Keep tight grip on the handles/grip surface. · Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
  • Page 14 Special safety instructions · Injuries and damage to property due to broken accessories or the sudden impact of hidden objects during use. · Danger of injury and property damage caused by flying objects. WARNING! This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult...
  • Page 15: Symbols

    Symbols IMPORTANT: Some of the following symbols may be used on your tool. Be sure to study them and learn their meaning. Proper interpretation of these symbols will allow you to use the machine more effectively and reduce the risk of accident. Read the instruction manual.
  • Page 16 Symbols For dry indoor use only. This product is of protection class II. That means it is equipped with enhanced or double insulation. Do note expose battery packs to heat in excess of 50ºC. Do not dispose of battery packs in fire. They will explode and cause injury. Do not dispose of battery packs in rivers or immerse in water.
  • Page 17: Diagram

    Diagram 1 18 Fig. 1 16 12 12a Parts list (See Fig. 1) Rear handle Safety guard Trigger Cutter head assembly Safety button 12a Trimmer line Adjustable handle Cut-off blade Bolt Blade cover Handle lock Edge guide Rotating lock Screw Telescoping lock Charger Tube assembly...
  • Page 18 Accessories Battery x1, Charger x1, Edge guide x1, Safety guard x1, Handle lock x1, Adjustable handle x1, Screw x1 & ¢6 Bolt x1...
  • Page 19: Intended Use

    Intended use This cordless grass trimmer is designated with a rated voltage of 58V. It is designed only to be used with the battery pack YT8033-02. YT8085-02 designates the respective charger with a charging voltage of 58V. The product is intended for cutting weed, grass or similar soft vegetation in areas that are hard to reach, e.g.
  • Page 20: Assembly

    Assembly WARNING! Before using the product, familiarise yourself with the operating features read the entire instruction manual paying particular attention to the safety rules and operating procedures. WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the illustrations provided as a visual guide to easily assemble the product! Do not connect the battery pack to the product before it is completely assembled!
  • Page 21: Installing The Guard And Edge Guide

    Assembly Installing the handle Note: Ensure the connection is properly secured. Tighten the knob until there is no gap between the handle and front handle. Installing the guard and edge guide a). The safety guard (C) of the trimmer’s head can be installed with a single screw (K). Slide the guard into place onto the head of the grass trimmer.
  • Page 22: Installing The Spool Of String

    Assembly Installing the spool string Below are the installation instructions if you need to replace the spool: a). Press two buttons on either side of the grass trimmer’s string casing (the buttons have a “›››” symbol on them) to remove the lid of the casing. (See Fig. 4 & 5). Fig.
  • Page 23: Insert The Battery

    Assembly Insert the battery To insert the battery, slide it into the back of the grass trimmer until a “click” is heard. Make sure the battery is fully inserted and latched into position. (See Fig. 8). To remove the battery, press the green release button and slide the battery out of the grass trimmer.
  • Page 24: Operation

    Operation Starting and stopping Starting The grass trimmer is equipped with a safety switch. In order to power the machine on, you must first press the safety switch. While holding down the safety switch, squeeze the trigger in order to power the grass trimmer. Always hold the grass trimmer with both hands during operation.
  • Page 25: Adjust The Working Head Angle

    Operation Fig. 11 Adjust the working head angle Pull up on the rotation lock to allow the head of the string to freely rotate 180 degrees for edging functions. Once the head has been fully rotated, re-lock the rotation lock to secure it in place.
  • Page 26: Working

    Operation Fig. 13 Working Trimming Keep the trimmer tilted towards the intended cutting area. Make sure to use the tip of the trimmer’s string to do the cutting. Do not force the entire string head into heavy and thick grass. When string trimming, move the unit from left to right to help prevent debris from flying back at you.
  • Page 27: Tips

    Operation 8. Ensure the cutting device remains clean and free from off-cuts that may cause it to jam. Check regularly. Release the on/off switch and rack before checking. 9. Trim longer grass in stages; do not cut long grass in one cut. For the best results, cut longer grass in steps.
  • Page 28: Line Feeding

    Operation WARNING! In some countries regulations define what time of the day and on what special days products are allowed to be used and what restrictions apply! Ask your community for detailed information and observe the regulations in order to preserve a peaceful neighborhood and avoid committing an offence! Note: The trimming line will wear faster and require more feeding if the cutting or edging is done along sidewalks, other abrasive surfaces or heavier weeds are being cut.
  • Page 29: Cleaning And Maintenance

    Cleaning and maintenance WARNING! Always be sure to remove the battery before adjusting, cleaning, or checking a function on the tool. Cleaning the grass trimmer Keep all safety devices, air vents, and motor housing free of debris and dirt. Wipe down the equipment with a cloth and/or compressed air.
  • Page 30: Cleaning And Maintenance

    Cleaning and maintenance 3. Feed the line through the holes on either side of the spool casing. Each hole should have one string coming out of it. 4. Replace the cover of the string casing. Make sure the lid snaps into place. Repair This product does not contain any parts that can be repaired by the consumer.
  • Page 31 Technical data Motor Brush motor No-load speed 6300-8000/min Battery 58V 2.5Ah battery Max. cutting diameter 33cm Cutting line thickness 1.6mm Feed type Auto feed Line length Lights in the charger indicates information as below Red light is on, green light off Connected to socket, ready for charging Red light in on, green is blinking battery is charging...
  • Page 32: Recycling And Disposal

    Recycling and disposal 1. The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is working properly. Recycle the package afterwards. 2.
  • Page 33: Declaration Of Conformity

    DECLARATIONS OF CONFORMITY Genpower Ltd confirms that this Hyundai product conform to the following CE Directives; 1.1. 2006/42/EC (Machinery Directive) 1.2. 2014/30/EU(EMC) 1.3.2011/65/EU(RoHS) 1.4. 2000/14/EC, Amended by 2005/88/EC (as amended) E C D E C L A R A T I O N O F C O N F O R M I T Y...
  • Page 36 For Inquiries, Please Contact: GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk Imported/Distributed by GENPOWER LTD Licensed by Hyundai Corporation, Korea...
