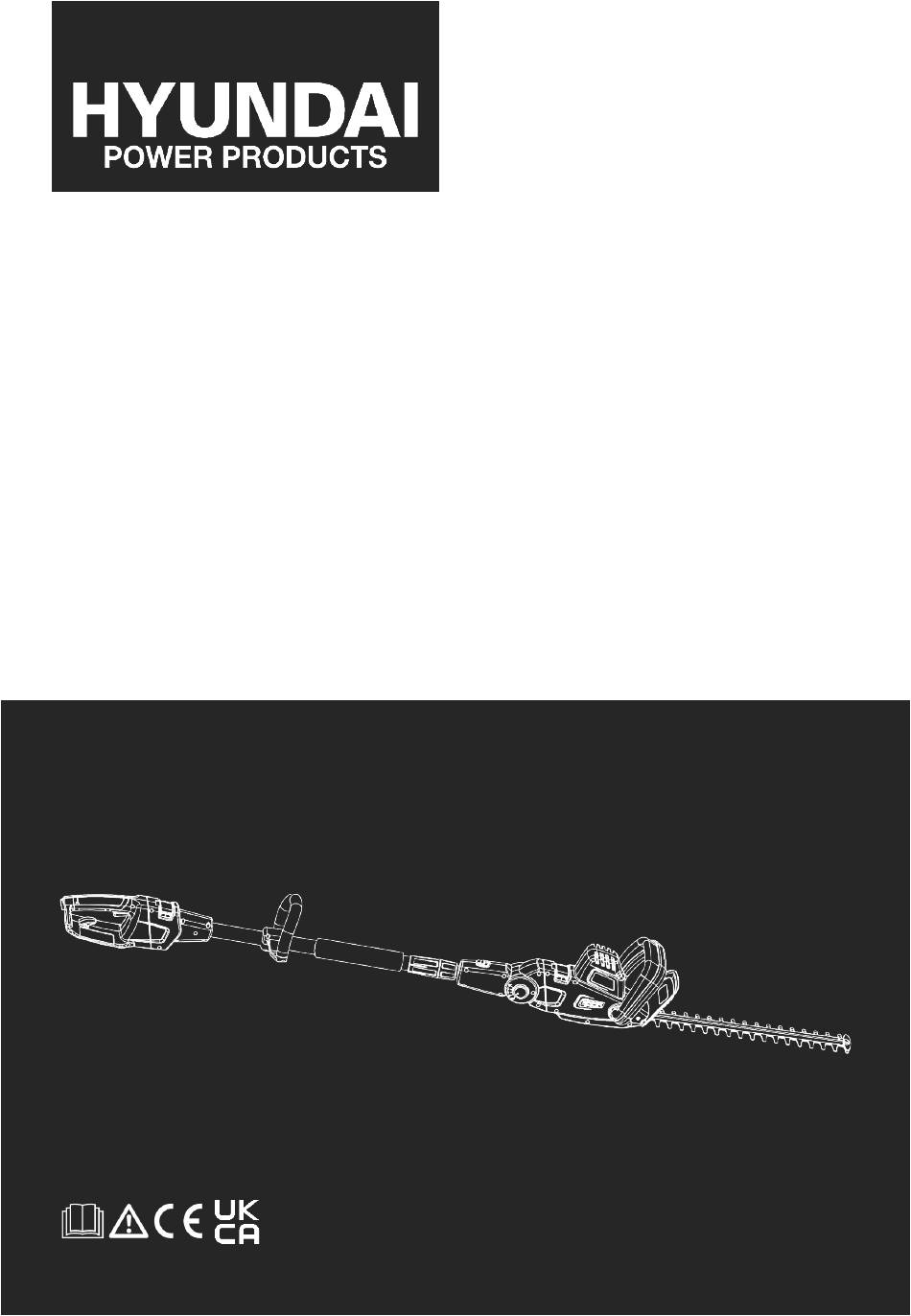

- Page 1 2 IN 1 POLE HEDGE TRIMMER HYP2HT550E Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Contents Introduction……..……………………………3 Declaration Of Conformity……………….41 Safety Information…..…………………..4-14 Useful Information………………………….42 Understand Your Machine.…..…………...4 Our YouTube Channel…..………………..42 Personal Safety...…….……………………4-5 Warranty…………………………………….42 Inspect Your Machine……………………...5 Manual Updates….……………………….42 Work Area…….……………………………..6 Returning Your Product….……………….42 During Use…….………………………………7 Leaving A Review….……………………...42 Batteries…….…………………………………8 Ordering Spare Parts.……………………..42 Electricity…….…………….…...………….8-9 Double Insulated Devices……..……..9 Product Record…………………………….43 Vibrations….…………………………..10 Noise…….……………………………..10... -
Page 3: Introduction.........................................3 Declaration Of Conformity
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Work Area
Safety Information Work Area • You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area. -
Page 7: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Never attempt to make any adjustments, while the machine is running. •... -
Page 8: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. -
Page 9: Double Insulated Devices
Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. •... -
Page 10: Residual Risks
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 11: Intended Use

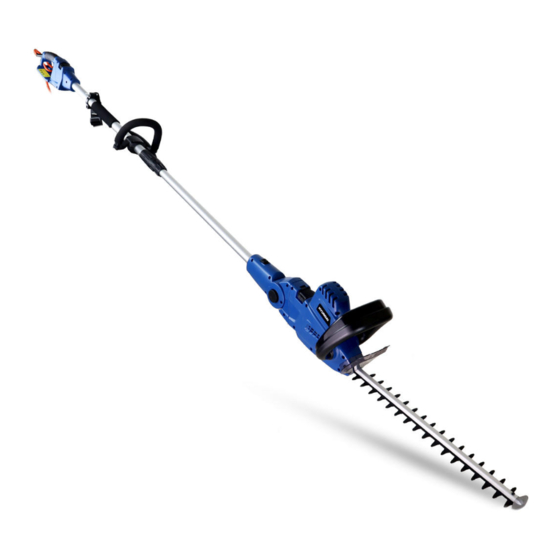

Safety Information Intended Use The HYP2HT550E is an electric 2 in 1 hedge trimmer from HYUNDAI. The HYP2HT550E has a blade length of 480mm; with a maximum cutting capacity of 20mm, powered by a 550W HYUNDAI motor. In Pole Configuration it can provide and extra 2.6m reach. -
Page 12: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 13: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement. - Page 14 Safety Information Symbols On The Machine (Continued) Symbol Description Symbol Description Class II tools symbol. Keep bystanders at a safe distance away from the work area. Do not expose to rain. Keep bystanders at a safe distance away from the work area.
-
Page 15: Unboxing
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 16: In The Box
In The Box *Not To Scale Hedge Trimmer Head Trigger Handle Blade Cover Telescopic Extension Pole Shoulder Strap www.hyundaipowerproducts.co.uk... -
Page 17: Features
Features *Not To Scale Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 18 Features Blade Cover Shoulder Strap Trimmer Blade Safety Guard Front Handle / Front Safety Switch Trimmer Head Quick Latch Safety Locking Button On / Off Trigger Cable Hook Cable Gland Angle Adjustment Button Extension Stop Switch Length Extension Collar Pole Grip Extension Pole Quick Latch www.hyundaipowerproducts.co.uk...
-
Page 19: Assembly
Assembly Assembly Overview Hand Held Hedge Trimmer Configuration Step 1 : Attach Handle to Hedge Trimmer Head Step 2 : Cord Management Pole Trimmer Configuration Step 1 : Attach Handle to Extension Pole Step 2 : Attach Extension Pole to Trimmer Head Step 3 : Cord Management WARNING! Ensure the machine IS NOT plugged into the mains power for assembly. -
Page 20: Hand Held Trimmer Configuration
Assembly Hand Held Trimmer Configuration - Attach Handle (Continued) Secure the handle into place by locking the Trimmer Head Quick Latch (I). www.hyundaipowerproducts.co.uk... - Page 21 Assembly Pole Trimmer Configuration – Attach Handle See image below to find the orientation of the extension pole (Top and Bottom). Bottom Insert the handle into the grooved slot at the bottom of the extension pole. Continued on next page www.hyundaipowerproducts.co.uk...
- Page 22 Assembly Pole Trimmer Configuration – Attach Handle (Continued) Secure the handle into place by closing the Extension Pole Quick Latch (R). www.hyundaipowerproducts.co.uk...
- Page 23 Assembly Pole Trimmer Configuration – Attach Trimmer Head Insert the top of the extension pole into the grooved slot at the back of the trimmer head. Secure the extension pole into place by closing the Trimmer Head Quick Latch (I). Continued on next page www.hyundaipowerproducts.co.uk...
-
Page 24: Pole Trimmer Configuration
Assembly Pole Trimmer Configuration – Attach Trimmer Head (Continued) www.hyundaipowerproducts.co.uk... -
Page 25: Cord Management
Assembly Cord Management This step is essential for the health of the power cord. Sharp and sudden pulling of the cord can cause damage to the gland. Securing the cord as shown will prevent such damage. This step applies to both handheld and pole configurations. 1. -
Page 26: Operation
Operation Cutting A Hedge When operating the hedge trimmer, keep the extension cord behind the trimmer. Never drape it over the hedge being trimmed. 1. Cut and remove branches exceeding the cutting capacity of this product using a proper pruner before operation. 2. -
Page 27: Choosing The Correct Angle
Operation Choosing The Correct Angle Make sure you are using the correct angle when working. If you do not angle the head correctly, you will not be able to see what you are cutting. -20° 0° You can use the 0° angle to cut the You can use the -20°... -
Page 28: Maximum Cutting Capacity
Operation Maximum Cutting Capacity The HYP2HT550E solely a Hedge Trimmer. This machine is only suitable for trimming Hedges and bushes. It is NOT suitable for use on trees or thicker branch plants. The Trimmer blades have a Maximum Cutting Capacity of 20mm. Any branches or stems thicker than 20mm will cause damage to the blades. - Page 29 Operation Starting and Stopping Hand Held Configuration WARNING! YOU MUST read and understand the user manual before starting the machine. Before connecting to mains supply, always check the switch is in the off position. Before operating in either configuration, YOU MUST remove the Blade Cover (C).
-
Page 30: Starting And Stopping Hand Held
Operation Starting and Stopping Hand Held Configuration (Continued) 3. With a firm grip on both handles, press the On/Off Trigger (K). The motor has 1 speed. 4. To stop, just release the On/Off Trigger (K), remove plug from mains power. www.hyundaipowerproducts.co.uk... - Page 31 Operation Starting and Stopping Pole Trimmer Configuration WARNING! YOU MUST read and understand the user manual before starting the machine. Before connecting to mains supply, always check the switch is in the off position. Before operating in either configuration, YOU MUST remove the Blade Cover (C). The machine MUST NOT be started whilst the blade cover is on.
-
Page 32: Starting And Stopping Pole Trimmer
Operation Starting and Stopping Pole Trimmer Configuration (Continued) 1. Press the Safety Locking Button (J). The machine will not start if not pressed. Extension Stop Switch (O) 2. With a firm grip on the handle and pole, press the On/Off Trigger (K). The motor has 1 speed. - Page 33 Operation Adjusting Trimmer Angle WARNING! The machine must NOT BE switched on when changing the trimmer head angle. This is dangerous and will cause injury and/or damage to the machine. 1. Press the Angle Adjustment Button (N) on the extension pole. This will disengage the lock on the trimmer head and allow it to pivot.
- Page 34 Operation Adjusting Trimmer Angle (Continued) 2. Release the button when the preferred angle has been selected. If the Angle Adjustment Button (N) is pressed and released, the trimmer head will lock into the next setting automatically. -20° 0° 20° 40° 60°...
-
Page 35: Adjusting Pole Length
Operation Adjusting Pole Length Twist the upper half of the Length Extension Collar (P) toward the Unlock symbol. This will loosen the tension on the pole. Rotate the collar once or twice as shown. Pull the Trimmer head away from the Length Extension Collar (P) to extend the pole. When preferred length has been selected, rotate the upper half toward the Lock Symbol. - Page 36 Operation Adjusting Pole Length (Continued) www.hyundaipowerproducts.co.uk...
-
Page 37: Adjusting Pole Grip
When operating the Trimmer in the pole configuration it is recommended to use the Shoulder Strap (E) and the Pole Grip (Q). The HYP2HT550E can fatigue arms quickly, using the Shoulder Strap (E) and Pole Grip (Q) will help reduce fatigue. -
Page 38: Maintenance & Care
Maintenance & Care WARNING! When carrying out any maintenance, ensure the machine is unplugged from mains power supply. To ensure safety and reliability, repairs should only be carried out with genuine replacement parts only. Cleaning To clean the body of the machine if required, use a damp cloth and mild soap. DO NOT use cleaning chemicals, penetrating oils or fuel to clean the body of the machine. -
Page 39: Specifications
Technical Data Specification Model HYP2HT550E Voltage 230V Frequency 50Hz Input Power 550W No Load Speed 1600rpm Cutting Diameter Capacity 20mm Noise 97dB(A) k = 1.05 Vibration 2.91m/s k-1.5m/s Net Weight 4.2kg Cable Length 10 metres Cutting Capacity 20mm Dimensions Length (Handheld Configuration) -
Page 40: Recycling & Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. - Page 41 Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 2 In 1 Pole Hedge Trimmer SKU Code: HYP2HT550E Date of Issue: 01/06/2021 Regulations and Directives of Compliance • 2006/42/EC The Machine Directive • 2014/30/EU EMC Directive • 2000/14/EC Noise Emissions •...
-
Page 42: Useful Information
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 43: Contact Us
Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk... - Page 44 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
