- Page 1 GRASS TRIMMER HYTR600E Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Contents Introduction……..……………………………3 Maintenance & Care………………….29-35 General Maintenance……………………29 Cleaning…...………………………………..29 Safety Information…..………………….4-12 Replacing Trimmer Line……………….30-31 Understand Your Machine.…..…………...4 Replacing Spool………………………..32-33 Personal Safety...…….……………………4-5 Snapped Trimmer Line…………………….34 Inspect Your Machine…………………..5 Troubleshooting…………………………….34 Work Area…….……………………………..6 Storage…….…...……………………………35 During Use…….……………………………..7 Batteries…….…………………………………8 Specification.……………………....36 Electricity…….……………………………..8-9 Double Insulated Devices…..……..9 Vibrations….…………………………..10 Recycling And Disposal..………………...37 Noise…….……………………………..10 Residual Risks…………………....10 Declaration Of Conformity…..…………..38... -
Page 3: Introduction
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Work Area
Safety Information Work Area • You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area. -
Page 7: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • •Never attempt to make any adjustments, while the machine is running. •... -
Page 8: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. -
Page 9: Double Insulated Devices
Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. •... -
Page 10: Residual Risks
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 11: Intended Use

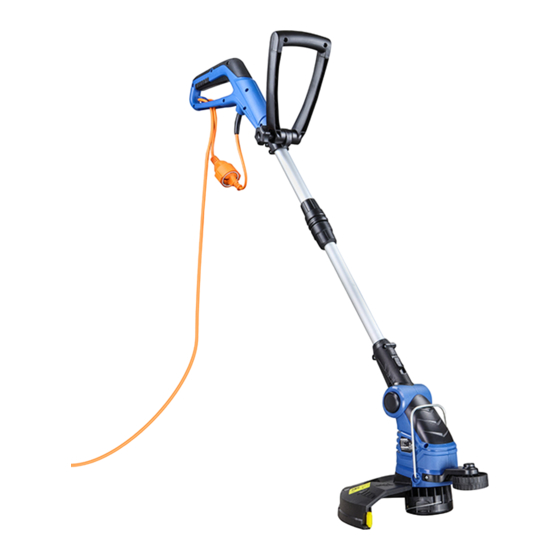

Safety Information Intended Use The HYTR600E is an electric grass trimmer from HYUNDAI. The HYTR600E has a cutting width of 300mm and is powered by a 600W HYUNDAI motor. This machine is a garden tool and precisely a pedestrian controlled grass trimmer. -
Page 12: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 13: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement. -
Page 14: Unboxing
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 15: In The Box
In The Box *Not To Scale Main Unit Lawn Edging Wheel You can attach the edging wheel when you want to use the edging function. You can use it to help you guide the machine across the edge of the lawn for a tidy finish. -
Page 16: Features
Features Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 17 Features D-Handle This handle is for extra support. You can fold it down when not in use by using the D Handle Knob (R). Main Handle You must hold this handle when using the machine. Trigger Switch This switch is used for starting and stopping the machine. Cable Holder This holds the cable in place while in use and prevents strain on the cable.
-
Page 18: Assembly
Assembly You will need a Phillips screwdriver for assembly. Assembly Overview There are 7 steps to the assembly: STEP 1. Attach The Guard STEP 2. Adjust Handle STEP 3. Height Adjustment STEP 4. Plant Guard STEP 5. Lawn Edging Wheel STEP 6. -
Page 19: Adjust Handle
Assembly STEP 2 : Adjust Handle You can adjust the D-handle (G) to a comfortable position for you. 1. Unscrew knob (R) to loosen the D-handle (G). 2. Move the D-handle (G) into a position that is comfortable for you. 3. -
Page 20: Height Adjustment
Assembly STEP 3 : Height Adjustment You can adjust the height of the pole depending on your height. You can also shorten the pole to make it more compact for storage. 1. Undo the knob (L) until the grass trimmer handle can be moved in and out freely. -
Page 21: Plant Guard
Assembly STEP 4 : Plant Guard You can use this guard to protect flowers and plants when grass trimming. 1. Move the plant guard (O) down to protect your plants and flowers. This guard must be up when using the lawn edging function. The plant guard must be in this position The plant guard must be in this position when using the lawn edging wheel. -
Page 22: Lawn Edging Wheel
Assembly STEP 5 : Lawn Edging Wheel You can attach the edging wheel when you want to use the edging function. You can use it to guide the machine across the edge of the lawn for a tidy finish. 1. Make sure that the plant guard (O) is up. 2. -
Page 23: Connecting Cable
Assembly STEP 6 : Connecting Cable 1. Line the plug up with the two holes and push into place. www.hyundaipowerproducts.co.uk... -
Page 24: Cable Holder On Handle
Assembly STEP 7 : Cable Holder On Handle Make sure the machine is disconnected from power before you do this. If the machine is plugged in, you may accidentally press the trigger switch. This holds the cable in place while in use and prevents strain on the cable. 1. -
Page 25: Operation
Operation Automatic Line Feed Every time the machine is switched on, the trimmer line will automatically be given out. You do not need to extend it yourself. There is a built-in line cutter so it will cut the line to make sure it is not too long. You must make sure the cutting head has stopped completely before switching the machine on again. -
Page 26: Lawn Edging
Operation Lawn Edging 1. Slide the button (Q) up and this will allow you to rotate the head through 180 degrees. See image 1 and 2. 2. Squeeze the two buttons (M) to adjust the angle of the cutting head. See image 3. 3. -
Page 27: Tips For Use
Operation Tips For Use After reading the safety instructions carefully, follow the instructions below attentively in order to get the most out of your grass trimmer. 1. Start off slowly, when you have gained experience, you will be able to use the grass trimmer to its full potential. -
Page 28: Starting
Operation Starting YOU MUST read and understand the full safety instruction manual before starting the machine. 1. To start, press and hold the trigger switch (I). Stopping WARNING : Cutting elements continue to rotate for a moment after the motor is switched off. -
Page 29: Maintenance & Care
Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 30: Replacing Trimmer Line
Maintenance & Care Replacing Trimmer Line We recommend using 1.3mm, 1.4mm or 1.5mm nylon grass trimmer line. WARNING : Make sure the machine is disconnected from the power supply. 1. Turn the trimmer so that the cutting head is facing upwards. Squeeze the two tabs on the spool cover. - Page 31 Maintenance & Care Replacing Trimmer Line (Continued) 5. Clip the trimmer lines onto the reel as shown. See image 5. 6. Thread the trimmer line through the holes in the spool body. Slide the reel onto the drive shaft. See image 6. Image 5 Image 6 7.
-
Page 32: Replacing Spool
Maintenance & Care Replacing Spool Spare Spool Part Number : 1317019 WARNING : Make sure the machine is disconnected from the power supply. 1. Turn the trimmer so that the cutting head is facing upwards. Squeeze the two tabs on the spool cover. See image 1. 2. - Page 33 Maintenance & Care Replacing Spool (Continued) 4. On the new spool, free both ends of the line. Thread both ends of the line through the holes on the spool body with the smooth side with the arrow facing upwards. Make sure the ends of the line do not slip out of the holes. See image 4. 5.
-
Page 34: Snapped Trimmer Line
Maintenance & Care Snapped Trimmer Line If the trimmer line breaks or snaps and is not long enough, you can manually extend the trimmer line. 1. There is a small button (see diagram). You can press this button and then pull the line out 1cm. -
Page 35: Storage
Maintenance & Care Storage Keep the machine stored in a dry, level area away from damp, moisture and rain fall. Allow the machine to cool down before storing. • Make sure the machine is clean and dry before storing. • Make sure the machine is stored away from direct sunlight. Store indoors or in a safe, locked protected area during severe weather and winter months. -
Page 36: Specification
Technical Data Specification Model HYTR600E Voltage 230V Frequency 50Hz Input Power 600W No Load Speed 10000rpm A-Weighted Sound Pressure Level LpA 82dB(A) A-Weighted Sound Power Lever LWA 94.76dB(A) Uncertainty K 1.66dB(A) Guaranteed Sound Power Level (in 96dB(A) accordance with 2000/14/EC) Vibration (in accordance with EN 2.302m/s... -
Page 37: Recycling And Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 38: Declaration Of Conformity
Genpower Ltd Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 600W Grass Trimmer SKU Code: HYTR600E Date of Issue: 10/03/2021 Regulations and Directives of Compliance • 2006/42/EC The Machine Directive • 2014/30/EU EMC Directive • 2011/65/EU RoHS •... -
Page 39: Useful Information
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 40: Product Record
Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:……………………………………………………………………………….. -
Page 41: Contact Us
Contact Us Need Help? Talk To Our Experts Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Our Knowledgebase Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk... - Page 42 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
