Hyundai HY4HT26 User Manual

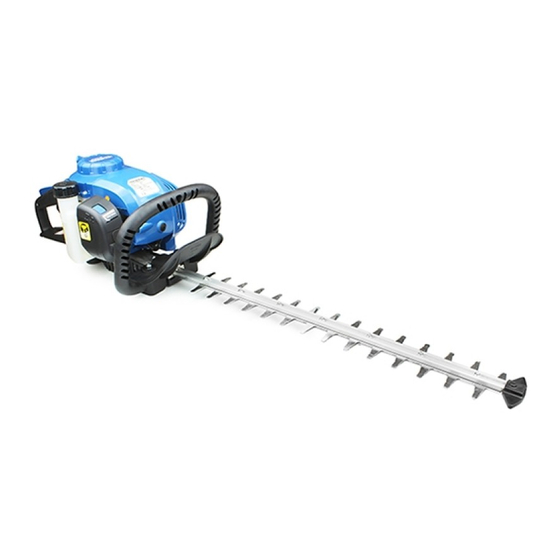

Petrol hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY4HT26 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HY4HT26

Summary of Contents for Hyundai HY4HT26

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 8 PART LOCATIONS 9 - 10 ASSEMBLY 11 - 13 QUICK START GUIDE FUEL & OIL STARTING PROCEDURE 16 - 19 STOPPING PROCEDURE OPERATING INSTRUCTIONS 20 - 22 MAINTENANCE 23 - 28 TROUBLE SHOOTING STORAGE &...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.

  • Page 4: Safety

    1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.30 Fueling/De-fueling (where applicable). CAUTION ALL FUELS ARE FLAMABLE 1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings. 1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls. 1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
  • Page 6 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form.
  • Page 7 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when hearing ear protection because your ability to hear alarm warnings will be reduced.
  • Page 8 1.93 Make sure you keep this manual handy so you may refer to it whenever questions arise and ensure you pass this manual on if the machine is loaned or sold. 1.94 Correct Personal Protective Equipment (PPE) MUST be worn at all times when operating or repairing this machine.

  • Page 9: Part Locations

    2. PART LOCATIONS Rear Handle Engine Housing Throttle Lockout Recoil Starter Handle Fuel Filler Cap Lock Button For Rotary Handle Choke Button On/Off Switch Front Handle Lubrication Nipple for Gearbox Cutting Blade Gearbox Tip Protector Allen Key Throttle Trigger Oil Filler Cap Fuel Tank Blade Guard Primer Bulb...
  • Page 10 3. PRE OPERATION CHECKS WARNING This machine is shipped without oil and fuel. You MUST ensure all fluid levels are correct before operation otherwise you may cause serious engine damage that will not be covered by the warranty. WARNING ALWAYS use a semi-synthetic 4 stroke SAE 10W30 engine oil and straight unleaded petrol.

  • Page 11: Starting Procedure

    Carefully pour petrol into the fuel tank. NOTE: This is a 4 stroke machine so DO NOT mix fuel with oil. Leave a 25mm gap between the fuel and the top of the fuel tank. Replace the fuel filler cap and tighten securely. Wipe up any spills immediately.

  • Page 12: Stopping Procedure

    6. STOPPING PROCEDURE Allow the engine to idle for 20 seconds under no load. Turn the ignition switch to the ‘STOP’ position. The machine should now stop. 7. USING THE MACHINE WARNING Engine housing can become hot during operation. DO NOT rest or place your arm, hand or any body part against the engine housing during operation.
  • Page 13 6.13 Check the working area for foreign objects such as electricity cables, insects and animals etc., or other objects that could damage the cutting attachment, such as metal items. 6.14 If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug.

  • Page 14: Maintenance

    8. MAINTENANCE WARNING Before cleaning, inspecting or repairing your unit, you MUST make sure that the engine has stopped and allowed to cool. You MUST disconnect the spark plug HT lead cap to prevent any accidental starting. CAUTION ALWAYS refuel in a well-ventilated area with the engine off and the spark plug HT cap removed.
  • Page 15 AIR FILTER CAUTION The engine MUST NOT be run without an air filter otherwise piston and/or cylinder damage can occur. This type of damage will NOT be covered under warranty. Maintaining the air filter is very important. If dirt is allowed to get in to the engine through improperly installed, serviced or inadequate filter elements, it can damage and wear out the engine.
  • Page 16 The spark plug gap should be 0.6 – 0.8mm. Check the gap using a feeler gauge and adjust as necessary by carefully bending the side electrode to achieve the correct gap. 0.6 – 0.8mm 7.10 Refit the cleaned and adjusted spark plug by hand to avoid cross-threading. 7.11 After spark plug seats then tighten as necessary but avoid over-tightening.
  • Page 17 CUTTING BLADE 7.23 Clean any resin and plant residue from the blades using a cleaning agent before and after using the machine. 7.24 Lubricate the blade bars with rust preventative oil before long periods of storage. 7.25 To ensure good cutting results it is important that the contact pressure between the blades is correct.
  • Page 18 STORAGE 7.39 The following steps should be taken if you store the generator for more than 30 days. 7.40 Drain all the fuel from the fuel tank into a suitable container. 7.41 Remove the maintenance cover to gain access to the carburetor. 7.42 Turn the engine switch to the ‘ON’...

  • Page 19: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE SOLUTION Not enough petrol in the fuel Add petrol tank Primer has not been pressed Press the primer bulb then at cold start restart Primer has been pressed at Dry spark plug warm start Spark plug is wet Dry spark plug Engine does not start Spark plug is damaged...
  • Page 20 10. SPECIFICATION Model Number HY4HT36 Engine Displacement 26.5cc Rated Power 650W Cutting Blade Length 480mm Fuel Type Unleaded Petrol Fuel Tank Capacity 280ml Oil Type Semi-Synthetic SAE 10W30 Oil Tank Capacity 60ml Blade Speed 2000rpm Blade Tooth Space 35mm Noise Level 103dB Net Weight 4.9Kg...

  • Page 21: Recycling And Product Disposal

    11. RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 22: Declaration Of Conformity

    12. DECLARATION OF CONFORMITY Genpower Ltd confirms that this Hyundai petrol pressure washer conforms to the following CE directives: 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Noise Emissions Directive 97/68/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by:...

  • Page 23: Contact Details

    13. CONTACT DETAILS POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. TELEPHONE +44 (0) 1646 687880 +44 (0) 0164 686198 TECHNICAL EMAIL aftersales@genpower.co.uk WEBSITE www.hyundaipowerequipment.co.uk 14. WARRANTY To register your machine for the manufacturer's warranty, please visit https://www.hyundaipowerequipment.co.uk/warranty 15.
