4 STROKE GRASS TRIMMER &
BRUSHCUTTER

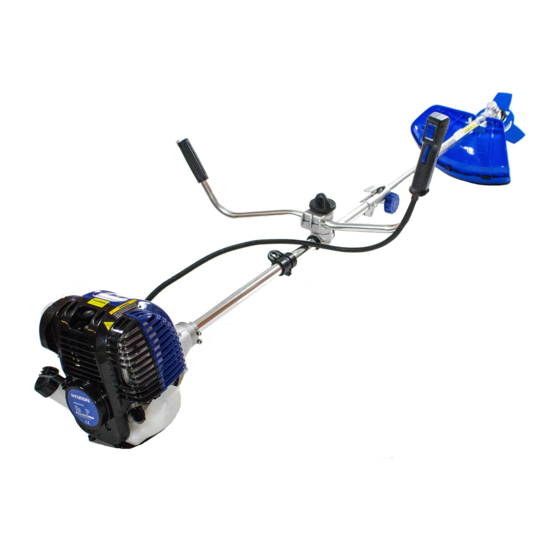

Model HYBCF31
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai HYBCF31

Summary of Contents for Hyundai HYBCF31

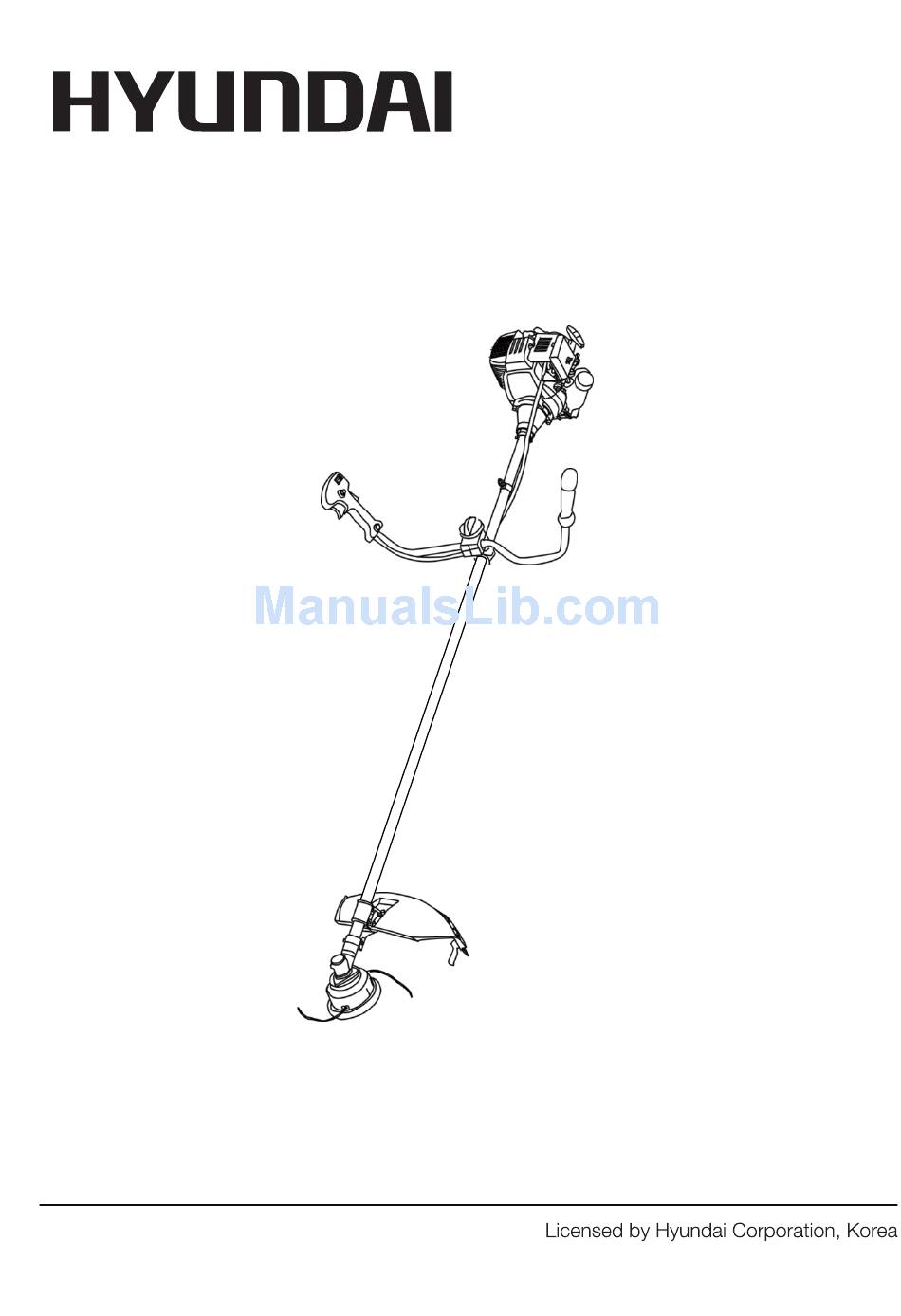

  • Page 1 4 STROKE GRASS TRIMMER & BRUSHCUTTER Model HYBCF31 User Manual...
  • Page 2 Page 2...

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY 4 - 8 2. SPECIFICATION 3. PARTS LOCATIONS 4. ASSEMBLY 11 – 12 5. OPERATION 13 – 17 6. MAINTENANCE 17 – 20 7. TROUBLESHOOTING 8. STORAGE 9. DISPOSAL 10. DECLARATION of CONFORMITY Page 3...

  • Page 4: Safety

    1. SAFETY 1.1. The operator of the machine is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Please note the following safety points. 1.2.
  • Page 5 the following; 1.3.2.1. Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness. 1.3.2.2. Carbon monoxide symptoms are similar to flu, food poisoning, viral infections and simply tiredness. It is quite common for people to mistake this very dangerous poisoning for something else. 1.3.3.
  • Page 6 1.5. Petrol safety. 1.5.1. Always fuel and defuel in well-ventilated area. 1.5.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.5.3. Respiratory protective equipment should be used when in an unventilated area.
  • Page 7 1.8.2. Always wear safety goggles for eye protection. Long hair must be tied back. Do not wear loose clothing or jewellery that could get caught in moving parts of the machine. Safe, strong, non-slip safety shoes should be worn. It is recommended that the legs and feet are fully protected, to protect themselves during the operation against flying objects.
  • Page 8 1.8.25. Improper maintenance, or the use of non-compliant spare parts or removal or modification of the safety devices can result in damage to the unit and serious injury of so working person. 1.8.26. Secure unit during transport well to prevent loss of fuel, damage to the unit and injury.

  • Page 9: Specification

    2. SPECIFICATION MODEL HYBCF31 1E139F - Air cooled, four stroke, single cylinder petrol Engine Type engine Engine Size cc Oil Capacity ml Fuel tank capacity ml Noise Level dB Rated Speed rpm 6000 Rated Power kw Drive Type Direct Start Method...

  • Page 10: Parts Locations

    3. PARTS LOCATIONS 1. Recoil starter handle 2. Choke lever 3. Air filter cover 6. Throttle trigger 4. Spark plug 5. Harness hook lockout 7. Engine switch 8. Throttle 9. Gear box 10. Spool/Cord assembly 11. Cutting guard 12. Cord cutter blade 13.

  • Page 11: Assembly

    4. ASSEMBLY DO NOT carry out any kind of assembly or maintenance work unless the machine is turned off and allowed to cool down 4.1. Handle assembly. 4.1.1. Undo knob (Fig 1), undo cover and place the handle onto the cradle (Fig 2) onto the upper shaft.
  • Page 12 4.3.4. Fasten the nut – remember to keep shaft from rotating as in 4.3.1. 4.3.5. Remove the allen key. 4.4. Trimmer head trimmer assembly. (Fig 5, 6 & 7). DO NOT used trimmer heads. Using the incorrect trimmer head may cause serious injury.

  • Page 13: Operation

    5. OPERATION 5.1. Before operation. ALWAYS read the instruction manual carefully and fully check the machine before each use. Oil is removed before leaving the factory so you MUST make sure that the machine has oil before starting. Check the cutting attachments to make sure that they are not blunt, cracked or damaged.
  • Page 14 5.1.2.4. Fill with unleaded fuel from an approved fuel container into the fuel tank, because fuel expands, please fill the tank to the bottom of the neck of tank only. 5.1.2.5. Turn the fuel cap clockwise to tighten it. DO NOT refuel while the engine is running or HOT! MAKE sure that fuel is not leaking from the rear outlet tube of fuel drain hole.
  • Page 15 5.1.4.9. Then release the throttle trigger lockout and throttle trigger, the throttle should remain in the ‘start’ position. 5.1.4.10. Slowly pull the recoil starter until you feel it engage and then pull it quickly. Return the recoil Starting gently to the original position by hand. Note: when the engine is started for the very first time.
  • Page 16 IMPORTANT: The carrying strap is fitted with a quick-release mechanism. Pull the Red strap section (shown inside circle - G6) if you need to remove the strap quickly. IMPORTANT: Always use the harness when working with the machine. Attach the strap as soon as you have started the engine and it is running in idle mode.

  • Page 17: Maintenance

    material causing the blade to climb out or kick out. The blade may either jump toward or away from the operator, depending on direction of the blade’s movement at the point of pinching. 5.3.3. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below: 5.3.3.1.
  • Page 18 6.1.4. The accessories which have not equivalent quality may damage the machine. 6.1.5. Please never use non approved components and remove the safety devices after or during maintenance. Maintenance Daily Weekly Monthly Clean the outside of the machine. Make sure the throttle trigger lock and the throttle Function correctly from a safety point of view.
  • Page 19 MAINTENANCE should be carried out Every six at REGULAR INTERVALS in each of Monthly or Every three Before each months or the indicated months or after a certain after every months or 50 after 100 number of hours of operation hours hours (Whichever comes first).
  • Page 20 6.4. Cleaning. 6.4.1. Keep your machine clean, the outside of the machine can be cleaned using a damp soft cloth with a mild detergent if required, never use water to clean the machine as it may cause damage to internal parts. 6.4.2.

  • Page 21: Troubleshooting

    7. TROUBLESHOOTING 7.1. Only an authorised dealer should repair this machine. Problem Check Condition Cause Solution Fuel filter is Clean or replace blocked The fuel does not Fuel supply Fuel at the Clean or replace arrive at the blocked carburettor carburettor Ask your Carburetor...

  • Page 22: Storage

    8. STORAGE 8.1. When transporting the machine in any type of vehicle you MUST empty the fuel tank completely to avoid fire and damage to vehicle. 8.2. Empty the fuel and oil. 8.2.1. Place the machine on even and stable surface. Warm up the engine for several minutes and then stop it.

  • Page 23: Declaration Of Conformity

    10. DECLARATION of CONFORMITY Genpower Ltd confirms that this Hyundai product conforms to the following CE directives: 2006/42/EC Machinery directive 2004/108/EC EMC directive 97/68/EC NRMM Emissions directive 2000/14/EC Noise emissions directive Page 23...
  • Page 24 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
