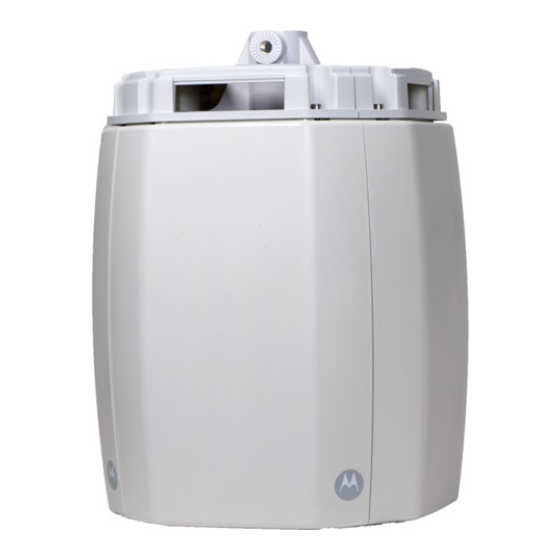

Motorola AP 7181 Installation Manual
  1. Manuals
  2. Brands
  3. Motorola Manuals
  4. Wireless Access Point
  5. AP 7181
  6. Installation manual

Motorola AP 7181 Installation Manual

Hide thumbs Also See for AP 7181:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Installation Manual
AP 7181
ACCESS POINT
INSTALLATION GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Motorola AP 7181

Summary of Contents for Motorola AP 7181

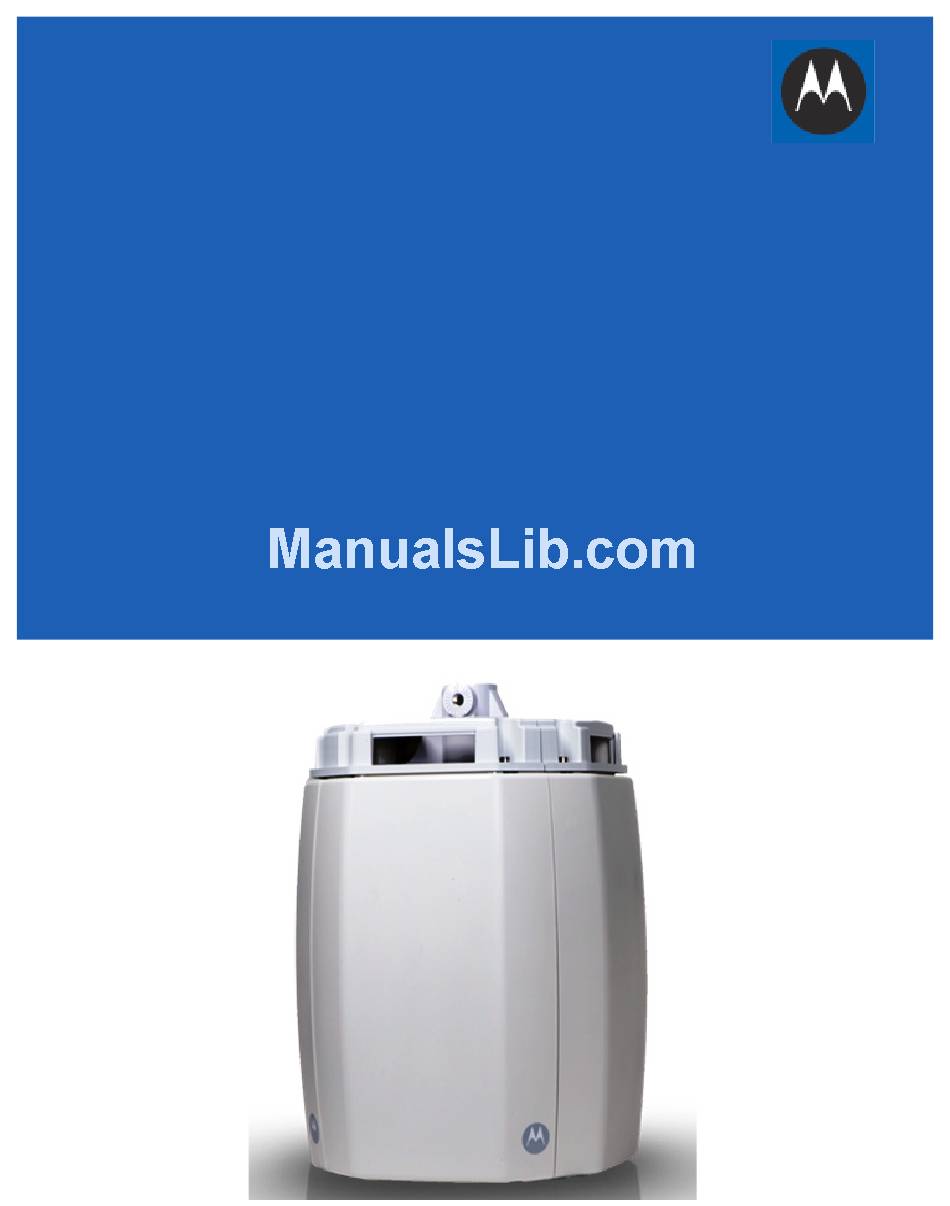

  • Page 1 AP 7181 ACCESS POINT INSTALLATION GUIDE...
  • Page 2 AP 7181 Access Point MOTOROLA SOLUTIONS and the Stylized M Logo are registered in the US Patent & Trademark Office. © Motorola Solutions, Inc. 2013. All rights reserved.

  • Page 3: Table Of Contents

    2.10 Installing an AP 7181 ..........15 2.10.1 AP 7181 Connections and Ports ....... 16 2.10.2 LED Status Indicator Panel .
  • Page 4 4.9 Turkish WEEE Statement of Compliance ......65 5.0 Motorola Solutions Support Center ....... . . 66...

  • Page 5: Introduction

    2.4 GHz 802.11 b/g/n and 5.x GHz 802.11a/n meshing. The dual-band system supports industry standard client devices and features easily deployed fixed infrastructure nodes. The AP 7181 is also designed to meet the needs of large outdoor networks. The network can be configured and managed for optimal performance using the WiNG management UI.

  • Page 6: Hardware Installation

    • Become familiar with grounding requirements • The grounding cable for an AP 7181 must be a #8 gauge (10 mm) wire cross section and use a ring lug that will fit the M5 grounding screw on the bottom of the unit •...

  • Page 7: Deployment Guidelines

    (1 hop nodes first, followed by 2 hop nodes, etc.). 2.4 Grounding Requirements The grounding cable for an AP 7181 must be a #8 gauge (10 mm) wire cross section and use a ring lug that fits the M5 grounding screw on the bottom of the unit.

  • Page 8: Ethernet Lighning Protection

    AP 7181 Access Point 2.4.1 Ethernet and Lightning Protection When installing an AP 7181 root node with a direct connection between the shielded CAT-5E Ethernet and the wired network, lightning protection should be used on all shielded CAT-5E Ethernet connections.

  • Page 9: Grouding Hardware Connections

    Installation Guide 2.4.2 Grounding Hardware and Connections The grounding cable for an AP 7181 must be a #8 gauge (10 mm) wire cross section and use a ring lug that fits the Grounding Hardware and Connections M5 grounding screw on the bottom of the unit (see The grounding screw is shown below in green: When connecting the grounding cable to the unit, tighten the grounding screw from 21.9 - 29.2 inch pounds (lbf-in).
  • Page 10 AP 7181 Access Point Access points mounted on a nonmetallic pole should be grounded as shown in the following figure: When grounding a unit installed on a non-metallic pole, a ground conductor and rod is required. This requirement should be factored into the project deployment costs, particularly if the equipment must be installed by a utility company.

  • Page 11: Minimum Installation Requirements

    • Ensure that all Root nodes are deployed with LoS to cluster points When installing an AP 7181 root node that has its Shielded CAT-5E Ethernet directly connected to the wired network, lightning protection should be used on all Shielded CAT-5E Ethernet connections. An outdoor rated...

  • Page 12: Non Root Node Placement

    • Ensure that proper grounding can be established • The grounding cable for an AP 7181 must be a #8 gauge (10 mm) wire cross section and use a ring lug that will fit the M5 grounding screw on the bottom of the unit •...

  • Page 13: Mounting Locations

    2 meters from anyone who may come into proximity of the AP 7181. 2.6.5 Device Deployment Height AP 7181 nodes are typically mounted at a height of 30 to 35 feet. Ensure neighboring nodes are mounted at or near the same device height.

  • Page 14: Power Cables

    AP 7181 Access Point 2.8.1 Power Cables Flying lead power cables are available based on the country of operation. Four Wire AC Right Angle Power Cable Black (Line) (North America and International) White (Neutral) Red (Unused) Green/Yellow (Ground) Three Wire AC Power Cable...

  • Page 15: Mounting An Ap 7181

    4x2.62x7 inches and it weighs 3 pounds. The gooseneck attaches to the yoke, which can be attached to the top or the bottom of the AP 7181. Secure the gooseneck and adaptor to the pole with the threaded portion pointing either up or down using band clamps.

  • Page 16: Ap 7181 Connections And Ports

    The power cable, grounding connections, power indicator light, Ethernet ports, and LED status panel on the bottom the AP 7181 are shown in the figure below: The grounding cable for an AP 7181 must be a #8 gauge (10 mm) wire cross section NOTE...
  • Page 17 The horizontal (HP) and vertical (VP) connectors for the antenna cables are located on the top of the AP 7181. All radome antenna panel cables are labeled as HP or VP. Attach each cable to the corresponding connector when performing a remote panel installation or any other procedure which requires attaching antenna cables to the connectors.

  • Page 18: Led Status Indicator Panel

    2.10.2 LED Status Indicator Panel There are six LEDs on the AP 7181 which can be viewed through the light pipes on the bottom of the unit. The LEDs have the following display characteristics and functionality: LED 1...

  • Page 19: Removing The Ap 7181Kit From The Shipping Carton

    Installation Guide 2.11 Removing the AP 7181 Kit from the Shipping Carton Never lift an AP 7181 using the radome antenna panels or other plastic parts. CAUTION Always lift the unit by the yoke or metal antenna rings. An AP 7181 unit weighs 39 pounds. Use all appropriate cautions when lifting and WARNING! consider a two man lift when necessary.
  • Page 20 Yoke (Mounting Bracket) (part number: HKLN4484A) • Set Screw for Yoke (part of the complete AP 7181 kit) Only one set screw is included with each AP 7181 kit. If a second set screw is required, NOTE purchase an M14x2.0, 20mm stainless steel Hexagonal screw.

  • Page 21: Staging The Ap 7181 Prior To Installation

    Installation Guide 2.12 Staging the AP 7181 Prior to Installation An AP 7181 Access Point weighs 39 pounds. Use all appropriate cautions when lifting WARNING! and consider a two man lift when necessary. 1. Place the Access Point on a solid surface with the yoke facing up.
  • Page 22 AP 7181 Access Point 4. Using the 22 mm socket, remove the port caps for Gigabit Ethernet GE1 and GE2. 5. Remove the cap on the cable gland as shown below. 6. Carefully hand tighten the gland into Gigabit port GE1. Once the gland is snug, use a 24 mm socket to...
  • Page 23 The AP 7181 supports 802.af compliant Power over Ethernet (PoE) on Ethernet port GE1, NOTE and can provide power to an external PoE capable device such as a surveillance camera. PoE is auto sensing and is enabled when the AP 7181 senses a PoE capable device.
  • Page 24 AP 7181 Access Point If the device being staged is a Mesh Point node (no wired connection to the core network) and no external device is going to be attached then no cable glands are required. If the Mesh Point node is going to have an external device attached (e.g. surveillance camera), a cable...
  • Page 25 After preparing the power cable, attach the cable Basic Access to the power port. Notice the power connector is keyed. Next configure the unit. Refer to Point Configuration for initial configuration of the AP 7181 Access Point.
  • Page 26 AP 7181 Access Point 9. Once the Access Point is configured, if the GE2 port is used to attach an external device to the AP 7181, reattach the port cap. If the GE2 port is used to attach and external device, attach the cable gland to the GE2 port.

  • Page 27: Field Installation

    WARNING! replacing it with a blank panel, terminators MUST be placed on the unused connectors on the top of the unit. The terminators for the AP 7181 are Ingress Protection 68 (IP68) rated. No additional weatherproofing precautions are required. 2.13.1 Bottom Mount Installation The pole mount adapter (Part Number RLN6197A) will accommodate a banding strap up to 1¼...
  • Page 28 AP 7181 Access Point The pole mount adapter can be mounted to poles 3 inches to 15 inches in diameter and has a load rating of 75 lbs. 1. Attach the pole mount adapter (or other mounting bracket hardware) to the mounting asset and ensure that the mounting bracket is level.
  • Page 29 9. Carefully lift the unit into position. Align the key slots for the yoke with the allen socket head screws and slide the yoke to the final position. An AP 7181 Access Point weighs 39 pounds. Use all appropriate cautions when lifting WARNING!
  • Page 30 NOTE purchase an M14x2.0, 20mm stainless steel Hexagonal screw. 12. If the AP 7181 is a Mesh Point Root node or a Mesh Point node with an external device (e.g. surveillance camera), perform the required Ethernet cabling. The Ethernet cable gland is optimized for cables of diameter .39 - .55 inches. Smaller diameter cables can achieve a watertight seal if the cable gland is properly tightened during installation.
  • Page 31 • All device wiring must follow the National Electric Code (NEC) or wiring requirements in the country of installation. All location building and structure codes must be observed • Ensure the power source for the AP 7181 is de-energized prior to installation Observe the following safety precautions to avoid personal injury during installation: WARNING! •...
  • Page 32 14. Once the power cable has been prepared, connect the power cable to the unit. 15. The grounding cable for an AP 7181 must be a #8 gauge (10 mm) wire cross section and use a ring lug that fits the M5 grounding screw on the bottom of the unit.
  • Page 33 Tighten the captive screws to from 39.9 - 53.1 inch pounds (lbf-in). 18. Once the physical installation is complete, the circuit powering the AP 7181 can be energized. Verify the green power LED is illuminated and the unit is powered on.

  • Page 34: Top Mount Installation

    AP 7181 Access Point 2.13.2 Top Mount Installation 1. Grasp the yoke and carefully remove the unit from the shipping carton. 2. Place the unit on a solid surface with the yoke facing up. 3. Remove the yoke and the allen socket head screws from the bottom of the unit.
  • Page 35 Installation Guide 5. Secure the gooseneck to the pole mount adapter using the 4 hex head bolts (3/8"x16"x1") included with pole mount adapter (Part Number RLN6197A). Apply a small tube of anti-seize lubricant to the threads of the gooseneck to prevent NOTE corrosion and seizing.
  • Page 36 8. Loosely attach the allen socket head screws to the top of the unit. Leave the screws loose enough to attach the yoke. An AP 7181 unit weighs 39 pounds. Use all appropriate cautions when lifting and WARNING! consider a two man lift when necessary.
  • Page 37 NOTE purchase an M14x2.0, 20mm stainless steel hexagonal screw. 12. If the AP 7181 you are mounting is a Mesh Point Root node or a Mesh Point node with an external device (e.g. surveillance camera), perform the required Ethernet cabling.
  • Page 38 • All device wiring must follow the National Electric Code (NEC) or wiring requirements in the country of installation. All location building and structure codes must be observed • Ensure that the power source for the AP 7181 is de-energized prior to installation Observe the following safety precautions to avoid personal injury during installation: WARNING! •...
  • Page 39 The AP 7181 flying lead power cables are 12 feet long. The installer should splice the power cable to the AP 7181 flying lead cable in accordance to the National Electric Code (NEC) or wiring requirements in the country of operation.
  • Page 40 AP 7181 Access Point 15. The grounding cable for an AP 7181 must be a #8 gauge (10 mm) wire cross section and use a ring lug that fits the M5 grounding screw on the bottom of the unit. The grounding screw is shown below in green. When connecting the grounding cable to the unit, tighten the grounding screw from 21.9 - 29.2 inch pounds (lbf-in).

  • Page 41: Remote Panel Antenna Installation

    When choosing an optimal deployment location, it may be necessary to mount a device so one of the antenna panels may be obstructed. For example, traffic light poles can completely obscure one of the panels in the AP 7181 antenna array. The remote panel antenna kit can be used to address this use case.
  • Page 42 When the remote panel antenna installation is used, a blank antenna panel should be attached to cover the side of the device facing the obstruction. Using a blank antenna panel protects the interior of the AP 7181. Blank antenna panels can also be used when a device is installed directly against a wall or the side of a building.

  • Page 43: Preparing The Ap 7181 For Remote Panel Antenna Installation

    Installation Guide 2.14.1 Preparing the AP 7181 for Remote Panel Antenna Installation To prepare the AP 7181 for installation using the remote panel antenna: 1. Remove the screws for one of the four radome antenna panels. 2. Grasp the lower part (barrel) of the antenna cable connector and carefully detach the antenna cables from...
  • Page 44 AP 7181 Access Point 3. Attach the extension cable for the remote antenna panel to the Access Point. 4. Carefully route the extension cable inside the antenna rings on the Access Point.

  • Page 45: Installing The Remote Panel Antenna

    To complete the installation of the remote panel antenna at the site: Field Installation 1. At the installation site, install the AP 7181 using the appropriate procedure. DO NOT apply power to the unit until the remote panel installation procedure is WARNING! complete.
  • Page 46 8. Complete the installation of the mounting bracket using the appropriate method for the installation requirements. 9. Attach the extension cable from the AP 7181 to the connectors on the remote mount antenna panel. The connectors on the AP 7181 are Ingress Protection 67 (IP67) rated. No additional NOTE weatherproofing precautions are required.

  • Page 47: Installing The Blank Antenna Panel

    NOTE configured in a daisy chain if additional length is required. 11. After the remote panel installation is complete, apply power to the AP 7181. Verify the green power LED is illuminated and the unit is powered on. 2.14.3 Installing the Blank Antenna Panel In addition to remote panel antenna installations, blank antenna panels can also be used if the unit is going to be placed directly against a wall or building.
  • Page 48 AP 7181 Access Point To install a blank antenna panel: 1. Remove the screws for one of the four radome antenna panels.
  • Page 49 2. Grasp the lower part (barrel) of the antenna cable connector and carefully detach the antenna cables from the connectors on the Access Point. Remove the radome antenna panel. 3. Attach the terminators to the antenna cable connectors. The terminators for the AP 7181 are Ingress Protection 68 (IP68) rated. No additional NOTE weatherproofing precautions are required.

  • Page 50: Basic Access Point Configuration

    PWRS-14000-148R power supply to supply power to the AP 7181 (once fully cabled). If your host system is a DHCP server, an IP address is automatically assigned to the AP 7181 and can be used for device connection. However, if a DHCP server is not available, you’ll need to derive the IP address from the AP MAC address.
  • Page 51 Installation Guide 3. Enter the default username admin in the Username field. 4. Enter the default password motorola in the Password field. 5. Click the Login button to load the management interface. When logging in for the first time, you’re prompted to change the NOTE password to enhance device security in subsequent logins.
  • Page 52 AP 7181 Access Point The Initial Setup Wizard displays the same pages and content for each NOTE Access Point model supported. The only difference being the number of radios configurable by model, as an AP7131 model can support up to...
  • Page 53 Installation Guide 7. Select Save/Commit within each page to save the updates made to that page's configuration. Select Next to proceed to the next page listed in the Navigation Panel without saving your updates. While you can navigate to any page in the navigation panel, you cannot NOTE complete the Initial AP Setup Wizard until each task in the Navigation Panel has a green checkmark.
  • Page 54 UI to connect to the Access Point, provision its configuration and administrate the Access Point’s configuration. If designating the Access Point as a Standalone AP, Motorola Solutions NOTE recommends the Access Point’s UI be used exclusively to define its device configuration, and not the CLI.
  • Page 55 Installation Guide 13. The Typical Setup Wizard displays the Network Topology screen to define how the Access Point handles network traffic. 14. Select an Access Point Mode from the available options. • Router Mode -In Router Mode, the Access Point routes traffic between the local network (LAN) and the Internet or external network (WAN).
  • Page 56 AP 7181 Access Point 15. Select Next. The Typical Setup Wizard displays the LAN Configuration screen to set the Access Point's LAN interface configuration. 16. Set the following DHCP and Static IP Address/Subnet information for the LAN interface: • Use DHCP - Select the checkbox to enable an automatic network address configuration using the Access Point’s DHCP server.
  • Page 57 Installation Guide • DNS Forwarding - Select this option to allow a DNS server to translate domain names into IP addresses. If this option is not selected, a primary and secondary DNS resource must be specified. DNS forwarding is useful when a request for a domain name is made but the DNS server, responsible for converting the name into its corresponding IP address, cannot locate the matching IP address.
  • Page 58 AP 7181 Access Point 19. Select Next. The Typical Setup Wizard displays the RADIUS Server Configuration screen if required. Otherwise, the Typical Setup Wizard displays the Summary and Commit screen. 20. Use the Radius Server Configuration screen to configure the users for the onboard RADIUS server. Use...
  • Page 59 Installation Guide 21. Select Add User to display the dialog to enter user information to add to the RADIUS server user database. 22. Enter the following user information: • Username - Provide a user name used to authenticate the user. •...
  • Page 60 AP 7181 Access Point 28. Select Next. The Typical Setup Wizard displays the Summary and Commit screen to summarize the screens (pages) and settings updated using the Typical Setup Wizard. No user intervention or additional settings are required. Its an additional means of validating the Access Point’s updated configuration before it’s deployed.

  • Page 61: Regulatory Information

    Only operate the device in accordance with the instructions supplied. 4.3 Power Supply Use only the Motorola Solutions approved power supply output rated at 84 watts average, 126 watts peak. Use of alternative power supply will invalidate any approval given to this device and may be dangerous.

  • Page 62: Rf Exposure

    Cet appareil numérique de la classe B est conforme à la norme ICES-003 du Canada. For AC powered units use only the Motorola Solutions approved internal power supply rated at 48V output. Typical power is 84 watts average and 126 watts peak. Use of alternative power supply will invalidate any approval given...

  • Page 63: Statement Of Compliance

    Installation Guide 4.6 Statement of Compliance Motorola Solutions hereby declares that this device is in compliance with all the applicable Directives, 2004/108/EC, 2006/95/EC. A Declaration of Conformity may be obtained from http://www.motorolasolutions.com/doc. Japan Voluntary Control Council for Interference (VCCI) Class B ITE This is a Class B product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI).

  • Page 64: Waste Electrical And Electronic Equipment (Weee)

    AP 7181 Access Point 4.8 Waste Electrical and Electronic WEEE) English: For EU Customers: All products at the end of their life must be returned to Motorola Solutions for recycling. For information on how to return product, please go to: http://www.motorolasolutions.com/recycling/weee.

  • Page 65: Turkish Weee Statement Of Compliance

    Installation Guide Dansk: Til kunder i EU: Alle produkter skal returneres til Motorola Solutions til recirkulering, når de er udtjent. Læs oplysningerne om returnering af produkter på: http://www.motorolasolutions.com/recycling/weee. Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να επιστρέφονται...

  • Page 66: Motorola Solutions Support Center

    • Model number or product name • Software type and version number Motorola Solutions responds to calls by e-mail, telephone, or fax within the time limits set forth in support agreements. If you purchased your product from a Motorola Solutions business partner, contact that business partner for support.
  • Page 67 Installation Guide...
  • Page 68 Schaumburg, IL 60196-1078, U.S.A. http://www.motorolasolutions.com MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2013 Motorola Solutions, Inc. All Rights Reserved.
