Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit mode:
<+/-> to setup field
CLICK
<click> again to confirm changes and exit.
exit without confirmation if no button is pressed after a few seconds time out.
+ -

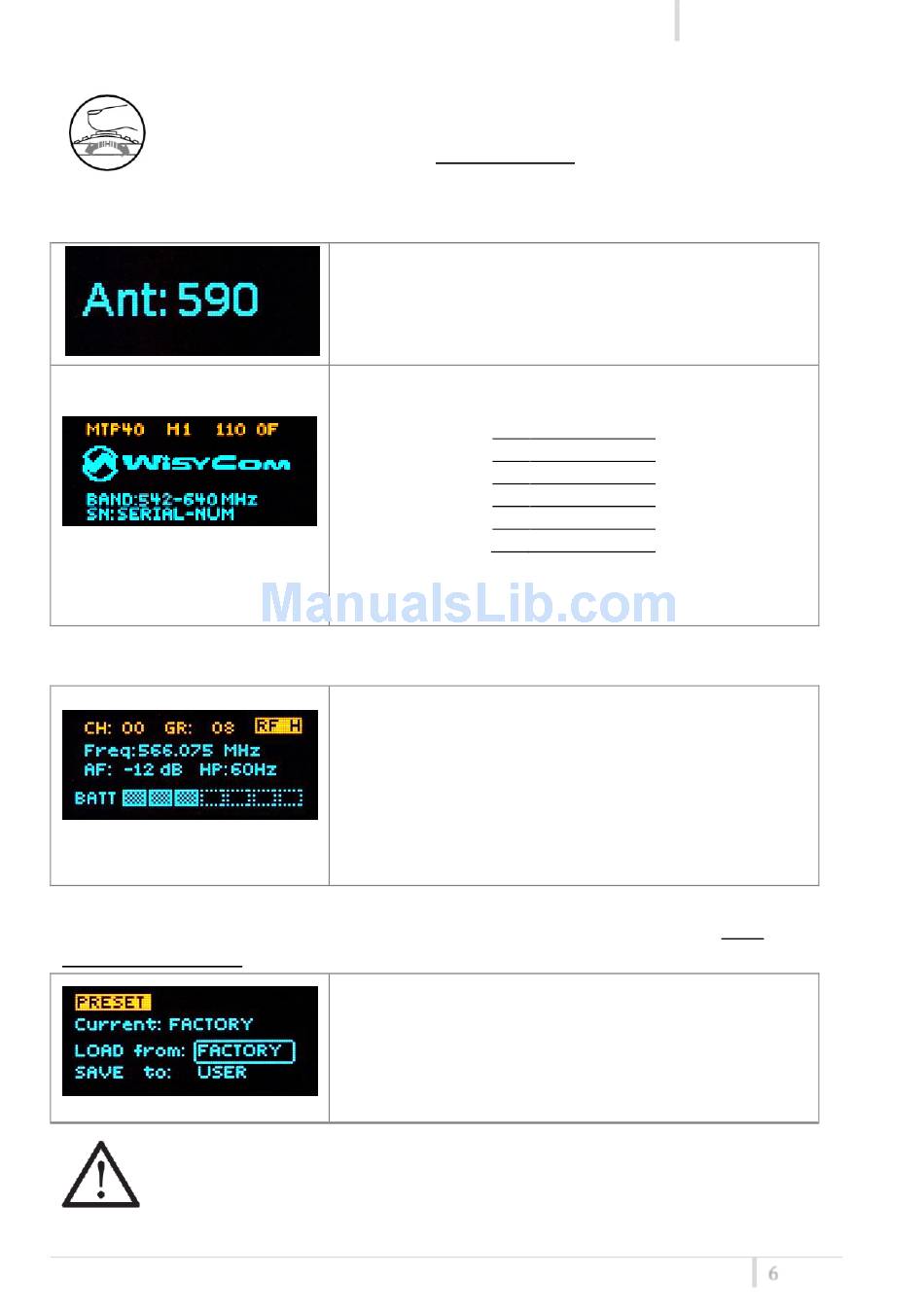

<START UP> menu
These menus are displayed during power up for few seconds.
Keep selector pushed to hold
this menu!
<STATUS> menu
This is the first menu displayed after power up.
<PRESET> menu
This menu can be entered by scrolling selector, or pushing at the same time both quick
channel setup buttons (<ch> & <gain>).
The other 8 configuration presets are user programmable thru the infrared and the
PC interface (using the programmer UPK 300 or the receiver MRK950/MRK960).
All parameters can be "left unchanged", "changed" or "changed and lock",
allowing a very flexible way to pre-program MTP40 Lite configuration.
MTP40 Lite User Manual
First one gives information of antenna to be used. The
number displayed is the center-band of the antenna to
be used.
The second menu gives indication on product:
product id (MTP40), a letter which identify the
working band
G
H
I
L
K
a number which identify the hardware version, the
firmware release (110.0F), the band in extended format
and the serial number.
Major info are displayed:
- Current channel/group (i.e. CH:00 GR:08)
- Current frequency (i.e. 566.075 MHz)
- Mic gain (i.e. AF: -04 dB) and high pass filter (i.e.
HP:60 Hz)
- "RF H" or "RF L" on top right if RF transmission is
on at high or low power respectively
- On bottom battery bar is displayed
MTP40 Lite can recall configuration presets. "FACTORY"
recall the Wisycom factory configuration. "USER" recall
the user configuration (the transmitter configuration is
copied into the USER using the "save to" submenu). All
"USER" menus are not locked by default,
thus this is quick way to unlock features!
Rev.02
470-566 MHz
542-640 MHz
566-686 MHz
678-798 MHz
520-640 MHz
