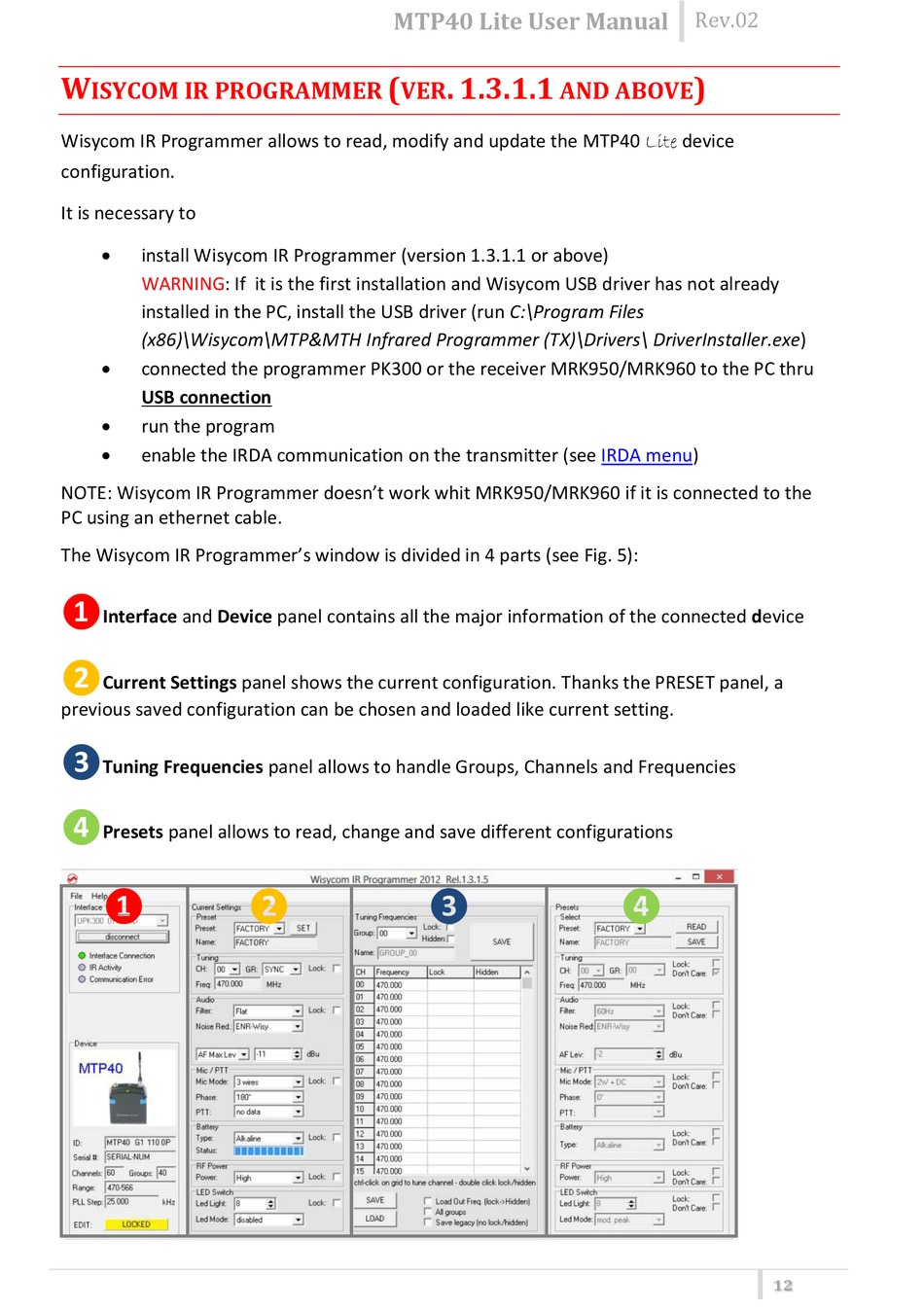

WisyCom MTP40 Lite User Manual page 12

W
ISYCOM IR PROGRAMMER
Wisycom IR Programmer allows to read, modify and update the MTP40 Lite device
configuration.
It is necessary to

install Wisycom IR Programmer (version 1.3.1.1 or above)
WARNING: If it is the first installation and Wisycom USB driver has not already
installed in the PC, install the USB driver (run C:\Program Files
(x86)\Wisycom\MTP&MTH Infrared Programmer (TX)\Drivers\ DriverInstaller.exe)

connected the programmer PK300 or the receiver MRK950/MRK960 to the PC thru
USB connection

run the program

enable the IRDA communication on the transmitter (see
NOTE: Wisycom IR Programmer doesn't work whit MRK950/MRK960 if it is connected to the
PC using an ethernet cable.
The Wisycom IR Programmer's window is divided in 4 parts (see Fig. 5):
❶
Interface and Device panel contains all the major information of the connected device
❷
Current Settings panel shows the current configuration. Thanks the PRESET panel, a
previous saved configuration can be chosen and loaded like current setting.
❸
Tuning Frequencies panel allows to handle Groups, Channels and Frequencies
❹
Presets panel allows to read, change and save different configurations
❶
MTP40 Lite User Manual
(
VER
❷
. 1.3.1.1
AND ABOVE
IRDA
❸
Rev.02
)
menu)
❹
12
