KEY FEATURES

• High output line array element
• Compact size, very good output-to-weight ra o
• High quality, low compression, low distor on HF driver

INTRODUCTION

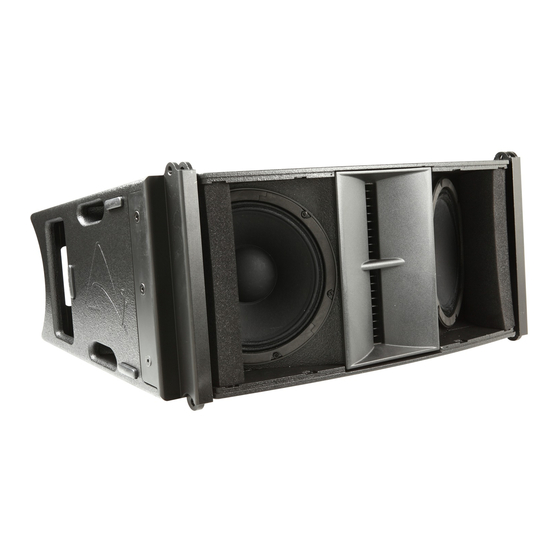

The AX2010P Ver cal Line Array element is designed for a wide range of sound reinforcement applica ons where a fl exible and easy to use ver cal
array systems is needed. The AX2010P has been designed both for rental live sound applica ons and for fi xed installa ons and has been engineered
for the simplest use possible but without sacrifi cing anything in sound quality and performance.
The high frequency range is reproduced by two low-distortion
compression drivers, equipped with very light-weight diaphragms. Two
transmission line waveforming waveguides have been used to load
the HF drivers, in order to provide a detailed and natural sound and to
achieve a long-distance HF projec ng capacity.
The two 10" woofers employed in the reproduc on of the mid-bass
range are equipped with very light-weight cones. The lightness of the
diaphragm is furthermore improved by the use of aluminium voice coil
instead of conven onal copper. This ensure a fast reproduc on of the
mid range and of mid-bass musical passages, improving also the thermal
capacity of the voice coil and, consequently, controlling the overall power compression. The two
10" woofers are back loaded by a short hybrid transmission line that minimizes the eff ect of the box
resonances and eliminates the "boxy" mid-bass sound commonly obtained from regular bassrefl ex enclosures.
The crossover fi lter approach is based on a "Constant Power" technique. Thanks to a par cular phase combina on between the two ways around
the crossover frequency, this approach is able to provide a very stable horizontal coverage and a very stable off -axys sound image, also minimizing
unwanted eff ects around the crossover frequency. The further applica on of phase lineariza on techniques, combined to constant power crossover,
yield a linear phase response and a coherent me response. This allows for a natural percep on of acous c instruments and voices and for an
improved depth of the sound image.

TECHNICAL SPECIFICATION

Acous cal
System type
Low frequency transducer
High frequency transducer
Frequency response (±3 dB)
Sensi vity (2.83 V @ 1m, 2 Pi)
Horizontal Coverage Angle
Ver cal Coverage Angle
Maximum Peak SPL @ 1m
Electrical
Nominal Impedance
Power Handling Con nuous*
Power Handling Peak
LF Power Compression
* AES Pink Noise Power
revision 2014-11-10

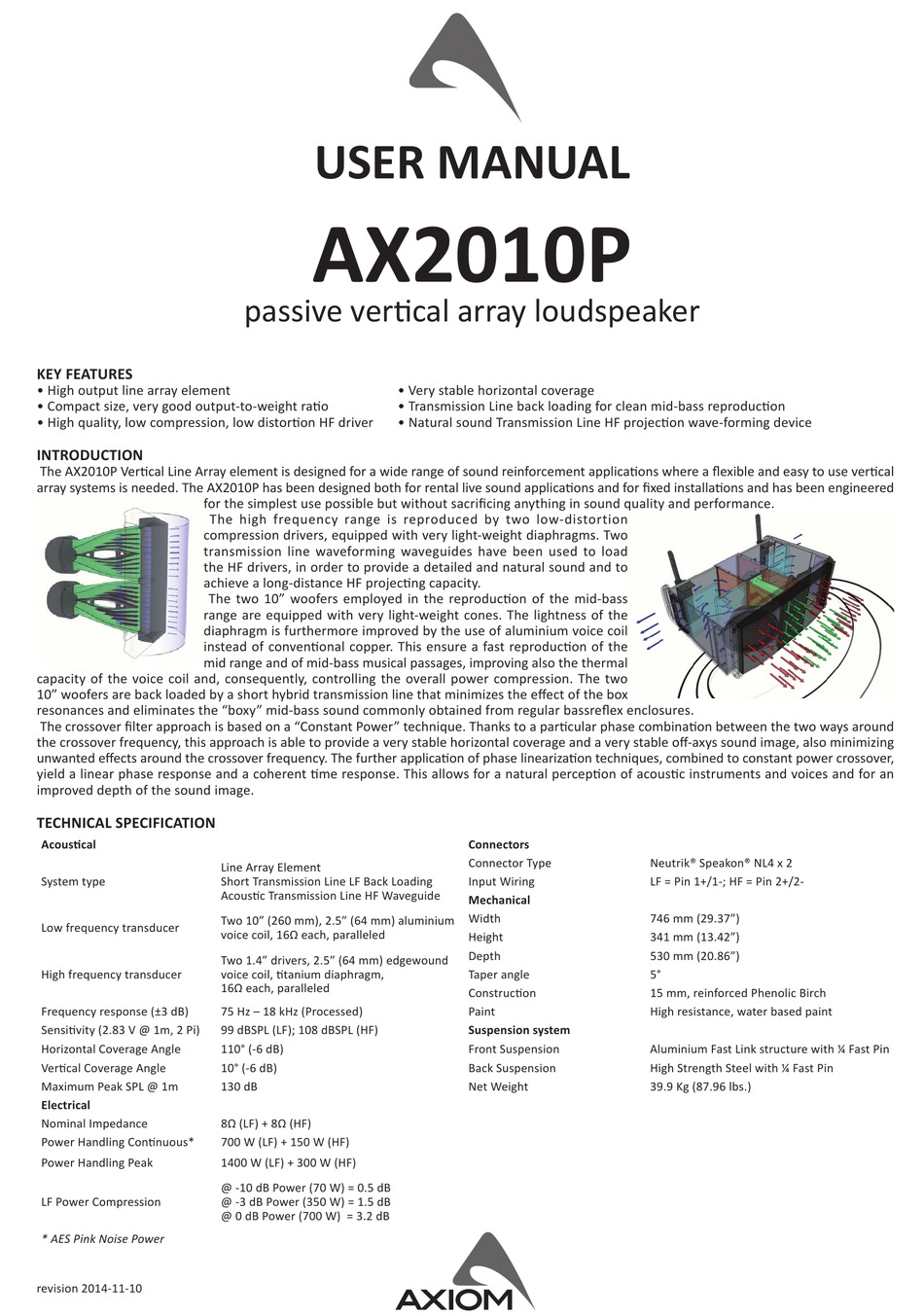

USER MANUAL

AX2010P
passive ver cal array loudspeaker
Line Array Element
Short Transmission Line LF Back Loading
Acous c Transmission Line HF Waveguide
Two 10" (260 mm), 2.5" (64 mm) aluminium
voice coil, 16Ω each, paralleled
Two 1.4" drivers, 2.5" (64 mm) edgewound
voice coil, tanium diaphragm,
16Ω each, paralleled
75 Hz – 18 kHz (Processed)
99 dBSPL (LF); 108 dBSPL (HF)
110° (-6 dB)
10° (-6 dB)
130 dB
8Ω (LF) + 8Ω (HF)
700 W (LF) + 150 W (HF)
1400 W (LF) + 300 W (HF)
@ -10 dB Power (70 W) = 0.5 dB
@ -3 dB Power (350 W) = 1.5 dB
@ 0 dB Power (700 W) = 3.2 dB
• Very stable horizontal coverage
• Transmission Line back loading for clean mid-bass reproduc on
• Natural sound Transmission Line HF projec on wave-forming device
Connectors
Connector Type
Input Wiring
Mechanical
Width
Height
Depth
Taper angle
Construc on
Paint
Suspension system
Front Suspension
Back Suspension
Net Weight
Neutrik® Speakon® NL4 x 2
LF = Pin 1+/1-; HF = Pin 2+/2-
746 mm (29.37")
341 mm (13.42")
530 mm (20.86")
15 mm, reinforced Phenolic Birch
High resistance, water based paint
Aluminium Fast Link structure with ¼ Fast Pin
High Strength Steel with ¼ Fast Pin
39.9 Kg (87.96 lbs.)
