Axiom AX2010A User Manual

KEY FEATURES
• High output line array element
• Compact size, very good output-to-weight ratio
• High quality, low compression, low distortion HF driver
• Very stable horizontal coverage
INTRODUCTION
The AX2010A Vertical Line Array element is designed for a wide range of sound reinforcement applications where a flexible and easy to use vertical
array systems is needed. The AX2010A has been designed both for rental live sound applications and for fixed installations and has been engineered
for the simplest use possible but without sacrificing anything in sound
quality and performance.

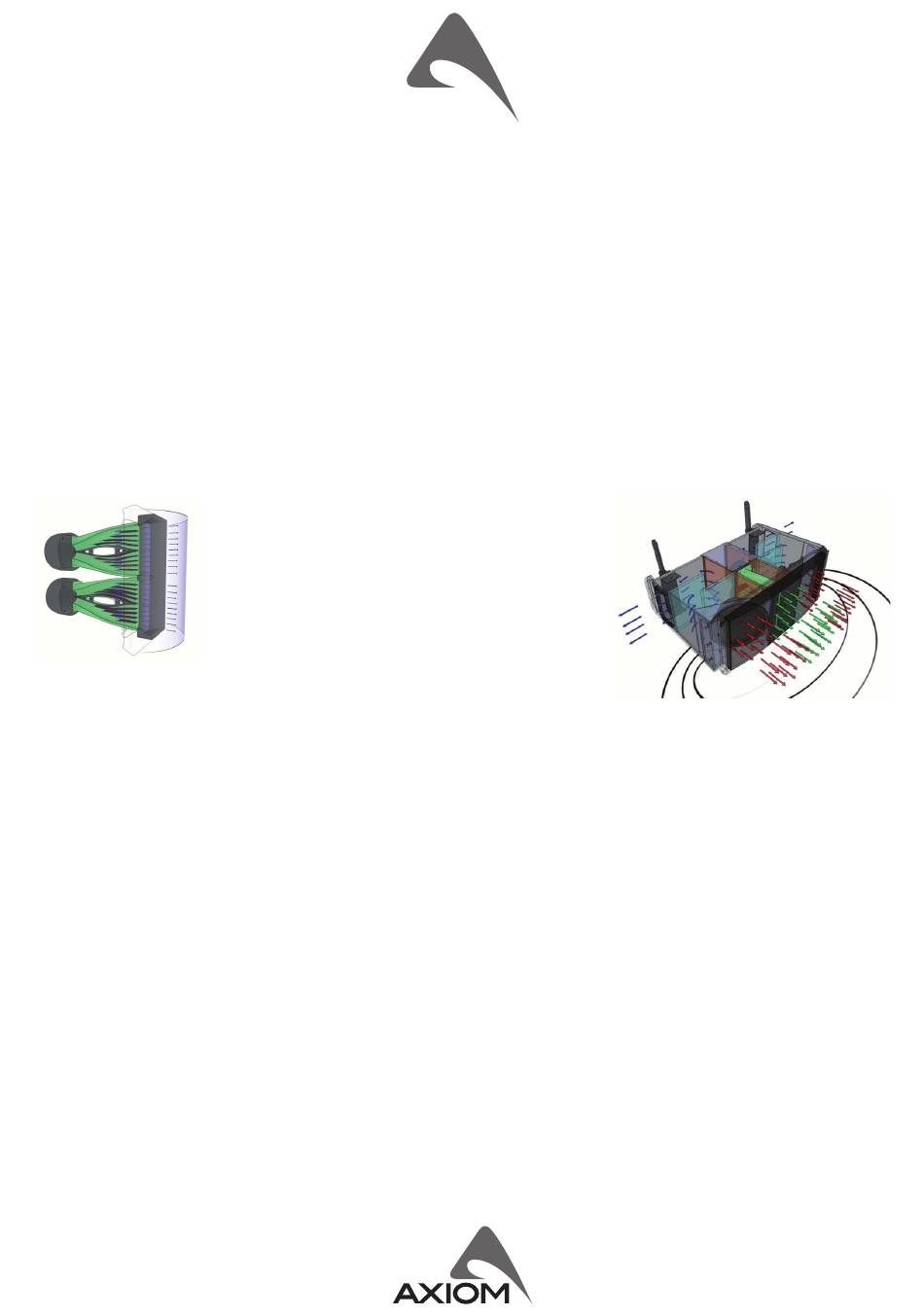

The high frequency range is reproduced by two low-distortion
compression drivers, equipped with very light-weight diaphragms. Two
transmission line waveforming waveguides have been used to load
the HF drivers, in order to provide a detailed and natural sound and to
achieve a long-distance HF projecting capacity.
The two 10" woofers employed in the reproduction of the mid-bass
range are equipped with very light-weight cones. The lightness of the
diaphragm is furthermore improved by the use of aluminium voice
coil instead of conventional copper. This ensure a fast reproduction of
the mid range and of mid-bass musical passages, improving also the thermal capacity of the voice
coil and, consequently, controlling the overall power compression. The two 10" woofers are back
loaded by a short hybrid transmission line that minimizes the effect of the box resonances and eliminates the "boxy" mid-bass sound commonly
obtained from regular bassreflex enclosures. The crossover filter approach is based on a "Constant Power" technique. Thanks to a particular phase
combination between the two ways around the crossover frequency, this approach is able to provide a very stable horizontal coverage and a very
stable off-axys sound image, also minimizing unwanted effects around the crossover frequency. The further application of phase linearization
techniques, combined to constant power crossover, yield a linear phase response and a coherent time response. This allows for a natural perception
of acoustic instruments and voices and for an improved depth of the sound image.
TECHNICAL SPECIFICATION
Acoustical
System type
Low frequency transducer
High frequency transducer
Frequency response (±3 dB)
Horizontal Coverage Angle
Vertical Coverage Angle
Maximum Peak SPL @ 1m
Electrical
Input Impedance
Input Sensitivity
Signal Processing
Direct access Controls
* Nominal consumption is measured with pink noise with a crest factor of 12
dB, this can be considered a standard music program.
revision 2019-03-29
USER MANUAL
AX2010A

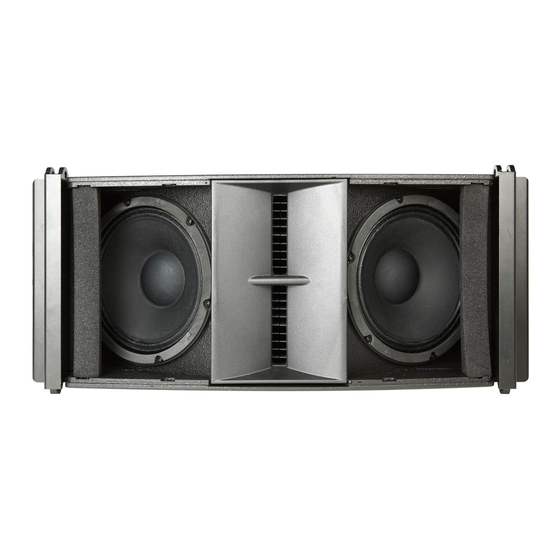

active vertical array loudspeaker
Line Array Element
Short Transmission Line LF Back Loading
Acoustic Transmission Line HF Waveguide
Two 10" (260 mm), 2.5" (64 mm) aluminium
voice coil, 16Ω each, paralleled
Two 1.4" drivers, 2.5" (64 mm) edgewound
voice coil, titanium diaphragm,
16Ω each, paralleled
75 Hz – 18 kHz (Processed)
110° (-6 dB)
10° (-6 dB)
138 dB
20 kΩ balanced
+4 dBu / 1.25 V
CORE processing, 96kHz / 40bit floating
point SHARC DSP, 24 bit AD/DA converters
4 Presets: Standard, Long Throw, Down Fill-
Single Box, User.
Network Termination, GND Link
• Transmission Line back loading for clean mid-bass reproduction
• Natural sound Transmission Line HF projection wave-forming device
• 96KHz / 40 bit floating point CORE processing with PRONET remote control
• Digitally controlled Class D amplifier module with SMPS
Remote Controls
Network protocol
Amplifier Type
Output Power
Mains Voltage Range (Vac)
Mains Connector
Consumption*
IN / OUT Connectors
IN / OUT Network Connectors
Mechanical
Width
Height
Depth
Taper angle
Construction
Paint
Suspension system
Front Suspension
Back Suspension
Net Weight
PRONET control software
CANBUS
Class D with Variable Switching Frequency
and SMPS
2x 1000 W
230 V~ ±15% or 115 V~ ±15% 50/60 Hz
PowerCon® (NAC3MPA + NAC3MPB)
700 W (nominal) 1700 W (max)
Neutrik XLR-M / XLR-F
ETHERCON® (NE8FAV)
746 mm (29.37")
341 mm (13.42")
530 mm (20.86")
5°
15 mm, reinforced Phenolic Birch
High resistance, water based paint
Aluminium Fast Link structure with ¼ Fast Pin
High Strength Steel with ¼ Fast Pin
40.3 Kg (88.7 lbs.)
