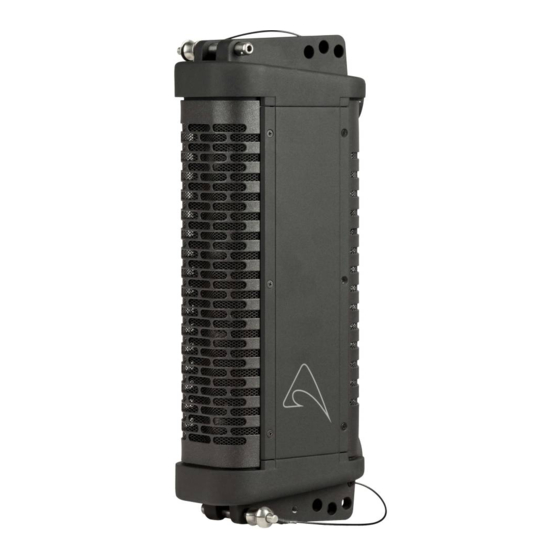

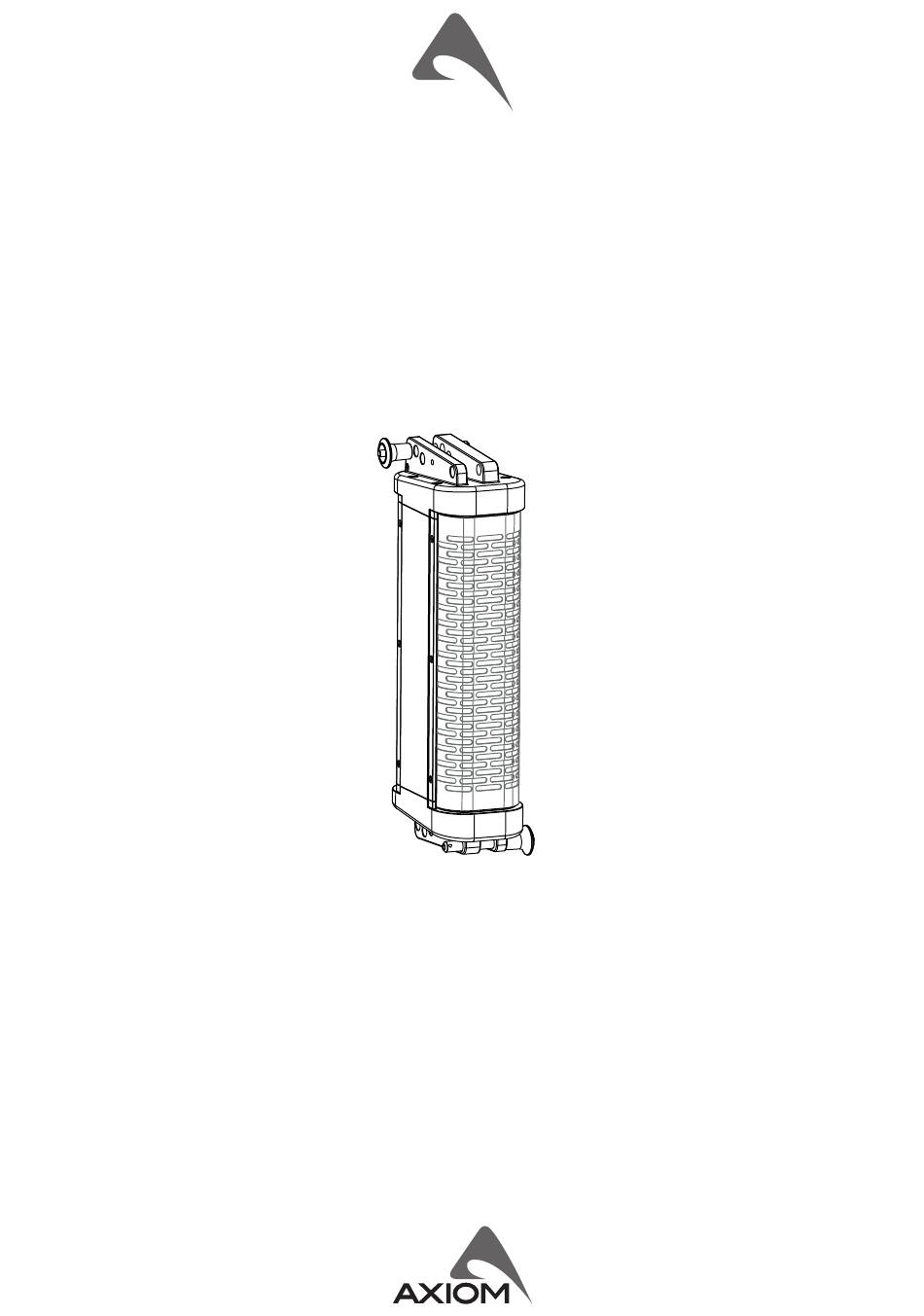

- Page 1 AX4CL High Output Column Array Loudspeaker USER MANUAL revision 2021-12-13...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: LVD Directive 2014/35/EU, RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed description.
-
Page 4: Table Of Contents
KPTFAXCL FOAM STAND ......9 AX4CL MECHANICAL DRAWING ....5 WALL INSTALLATION USING KPTWAX16CLL OPTIONAL ACCESSORIES . -
Page 5: Ax4Cl Mechanical Drawing
AX4CL MECHANICAL DRAWING 15.4 cm 6.06" OPTIONAL ACCESSORIES KPTWAX16CLL Wall bracket for 1 or 2 units DHSS10M20 ø35mm 1-1.7m Pole with Handle and M20 screw KPTFAX16CL Floor stand ESO2500LU025 25 cm SPEAKON linking cable 4x4mm KPTPOLEAX16CL Pole adapter KP210S ø35mm 0.7-1.2m Pole with M20 screw... -
Page 6: Rear Panel
REAR PANEL INPUT & LINK - Both connectors at the top and the bottom of the AX4CL can operate as input or link, to connect an appropriated processed amplifier or to link the column to a second one. The AX4CL does not include an internal passive crossover for filtering the signal, but only an internal protection that excludes the internal speaker to protect them from excessive input power. -
Page 7: Pin Locking And Splay Angles Set Up
PIN LOCKING AND SPLAY ANGLES SET UP The figure below shows how to insert correctly the locking pin and how to set up the splay angle between loudspeakers. LOCKING PIN INSERTION AX4CL column to column KPTxAXCL and AX4CL accessory to column (upward)* press and release and... -
Page 8: Floor Installation With Kptpoleax16Cl Pole Adapter
• Always secure ground stacked setups against movement and possible tipping over. • A maximum of 4 x AX4CL speakers are allowed to be installed over a KPTFAX16CL with pole serving as ground support. • The column must be setup with 0° aiming. -
Page 9: Floor And Front Fill Installation Using Kptfaxcl Foam Stand
• Brackets MUST be installed by qualified personnel in accordance with safe installation practices. • A single AX4CL or 2x AX4CL speakers can be installed using the KPTWAX16CLL as top and bottom wall brackets. Column orientation is possible only aiming it at 0°. -
Page 10: Ax4Cl Connection Examples
AX4CL CONNECTION EXAMPLES The following examples shows all the possible connections between a dedicated amplifier and the AX4CL column speaker, please note the amplifier must be equipped with a DSP and specifically designed preset. 1 x AX4CL ESO1500LU2 - lenght 2m... - Page 11 4 x AX4CL 1+/1- 1+/1- ESO2500LU05 - lenght 0,25m ESO1500LU2 - lenght 2m ESO1500LU5 - lenght 5m ESO1500LU10 - lenght 10m 1+/1- ESO1500LU15 - lenght 15m ESO1500LU20 - lenght 20m 1+/1- 1+/1- 1+/1- Power amplifier capable of delivering: 320 W to a 8 ohm load.
- Page 12 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
