Summary of Contents for Axiom AX2010AV2

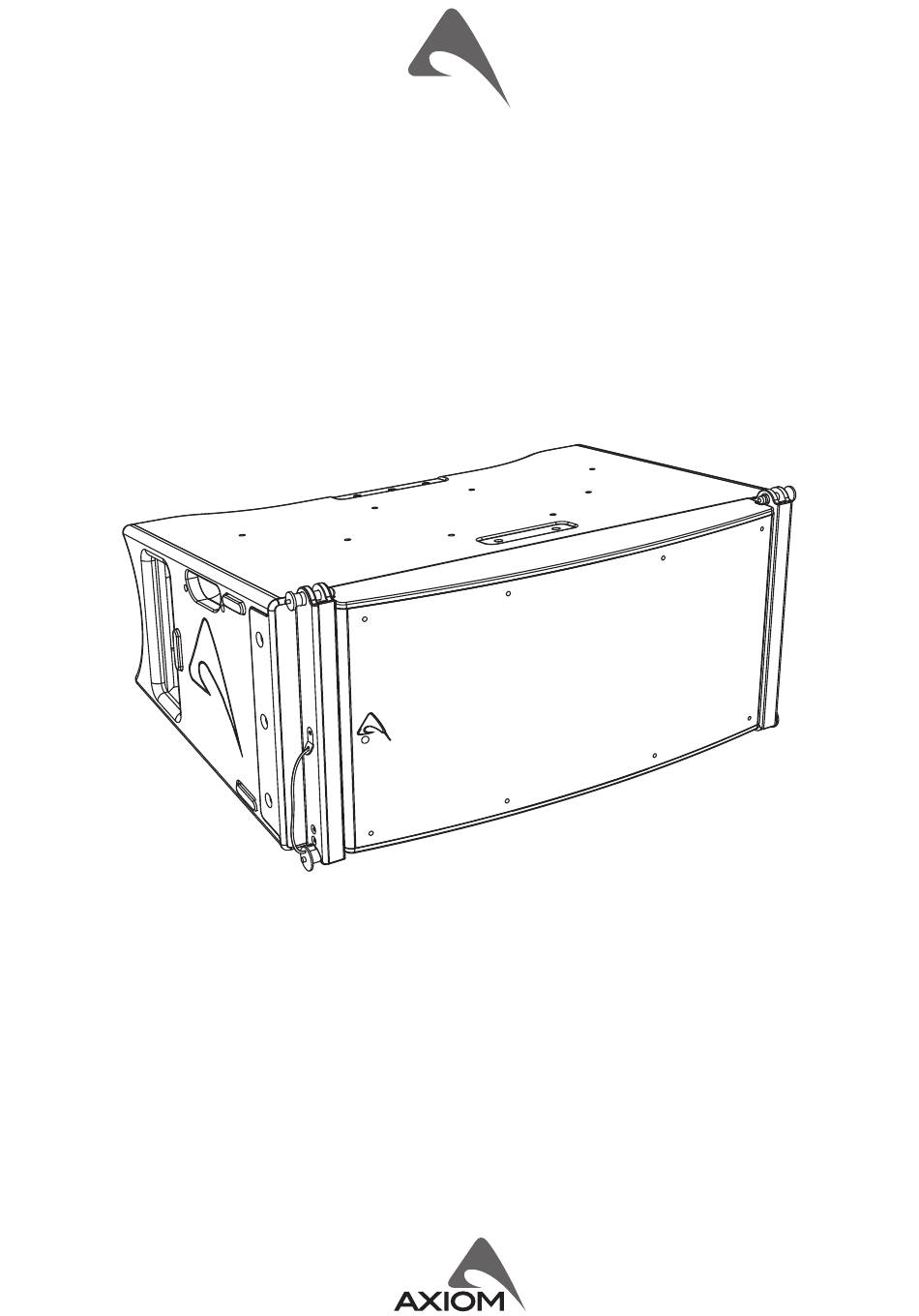

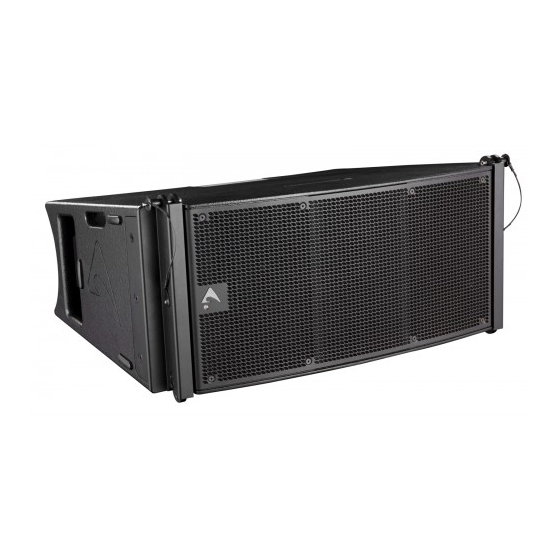

- Page 1 AX2010AV2 Active Vertical Array Loudspeaker USER MANUAL revision 2023-07-05...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
INDEX PROT ........6 SIGN/LIMIT ....... 6 INTRODUCTION . -
Page 5: Mechanical Drawing
Hybrid cable 1x Cat6e - 1x Audio with NEUTRIK connectors 0.7/1.5/2.5/5/10/15/20 m Length AVCAT5PROxx Cat5e on cable drum, RJ45 plugs and NEUTRIK connectors 30/50/75 m Length KPTAX2012P Fly bar for Axiom AX2010 Loudspeakers AXFEETKIT Kit of 6pcs BOARDACF01 M10 foot for stacked installation RAINCOV2010... -
Page 6: I/O And Control Operations
MADE IN ITALY I/O AND CONTROL OPERATIONS MAINS IN Powercon® NAC3FCA power input connector (blue). To switch the amplifier on, insert the Powercon® connector and turn it clockwise into the ON position. To switch the amplifier off, pull back the switch on the connector and turn it counter-clockwise into the POWER OFF position. -
Page 7: Preset Button
AX2010A HIGH OUTPUT POWERED VERTICAL ARRAY ELEMENT PROT SIGN/LIMIT TERMINATE INPUT NETWORK LINK MANUFACTURED by PROEL S.p.A. MADE IN ITALY PRESET BUTTON This button has two function: 1) Pressing it while powering on the unit: ID ASSIGN The internal DSP assigns a new ID to the unit for the PRONET AX remote control operation. Each loudspeaker must have a unique ID to be visible in the PRONET AX network. -
Page 8: Preset Using Example: Installation In A Theatre With Balcony
AX2010A - PRESET RESPONSE LONG THROW STANDARD SINGLE/DOWNFILL PRESET USING EXAMPLE: INSTALLATION IN A THEATRE WITH BALCONY In the following figure you can see an example of the use of different PRESETS in an AX2010V2 flown array installed in a big theatre with balcony: •... -
Page 9: Network In/Out
PRONET AX - OPERATION The AXIOM active loudspeaker devices can be connected in a network and controlled by the PRONET AX software. PRONET AX software has been developed in collaboration with sound engineers and sound designers, in order to offer an “easy-to- use”... -
Page 10: Basic Installing Operation
AFMG Technologies GmbH. It is based on the EASE GLL loudspeaker data file required for its use. The GLL file contains the data that defines the Line Array with regard to its possible configurations as well as to its geometrical and acoustical properties. Download the EASE Focus 3 app from the AXIOM website at https://www.axiomproaudio.com/ clicking on downloads section of the product. - Page 11 WARNING! CAREFULLY READ THE FOLLOWING INSTRUCTIONS AND CONDITION OF USE: • This loudspeaker is designed exclusively for Professional audio applications. The product must be installed by qualified personal only, for suspending the system qualified rigger personal is mandatory. • Proel strongly recommends that this loudspeaker cabinet be suspended taking into consideration all current National, Federal, State and Local regulations.
- Page 12 The figures below shows how to insert correctly the locking pin, always carefully check that each pin is fully inserted and locked in the correct position. Set up the splay angle between loudspeakers inserting the pin in the correct hole, please note that the inner hole in the hinge top is for whole angles (1, 2, 3 etc.) while the outer hole is for the half angles (0.5, 1.5, 2.5 etc.).
-
Page 13: Fly Bar And Accessories
FLY BAR AND ACCESSORIES The AX2010 Systems are built to allow the suspension of array with variable shape and dimensions. Thanks to a suspension mechanism designed to be functional, flexible and safe, each system must be suspended or stacked using the KPTAX2012P fly bar. The loudspeakers are linked together in a column using a series of couplers integrated in the frame of each enclosure. - Page 14 Follow the sequence in the figure for fixing the fly bar at the first box. Usually this is the first step before lifting up the system. Be careful to insert properly all the locking pins (2)(3) and the shackle (5) in the right holes as specified by the aiming software. When lifting the system always proceed gradually step by step, paying attention to secure the fly bar to the box (and the box to the other boxes) before pulling up the system: this makes easier to insert properly the locking pins.
-
Page 15: Stacked Installation
STACKED INSTALLATION WARNING! • The ground where the KPTAX2012P Fly bar serving as ground support is placed needs to be absolutely stable and compact. • In the stack configuration you have to use the three optional feet BOARDACF01 (AXFEETKIT kit) and the fly bar must be mounted upside down on the ground. - Page 16 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
