Axiom AX2065P User Manual

KEY FEATURES
• High output line array element
• Compact size, very good output-to-weight ra o
• High quality, low compression, low distor on HF driver
INTRODUCTION

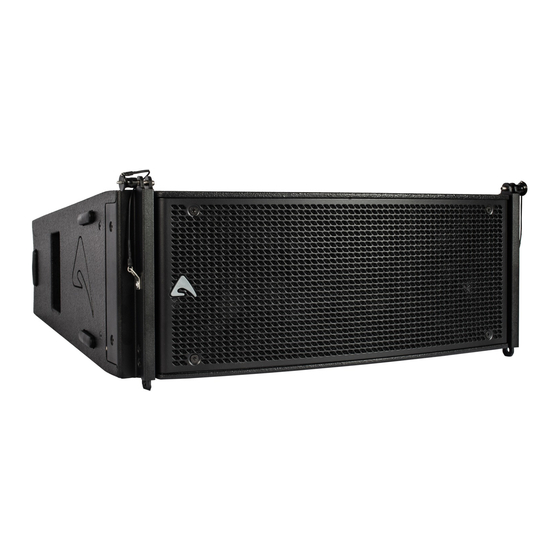

The AX2065P Ver cal Line Array element is designed for a wide range of sound reinforcement applica ons where a fl exible and easy to use ver cal
array systems is needed. The AX2065P has been designed both for rental live sound applica ons and for fi xed installa ons and has been engineered
musical passages, improving also the thermal capacity of the voice coil and, consequently, controlling
the overall power compression. The two 6.5" woofers are back loaded by a short hybrid transmission
line that minimizes the eff ect of the box resonances and eliminates the "boxy" mid-bass sound
commonly obtained from regular bassrefl ex enclosures. The crossover fi lter approach is based on a
"Constant Power" technique. Thanks to a par cular phase combina on between the two ways around
the crossover frequency, this approach is able to provide a very stable horizontal coverage and a very
stable off -axys sound image, also minimizing unwanted eff ects around the crossover frequency. The
further applica on of phase lineariza on techniques, combined to constant power crossover, yield a
linear phase response and a coherent me response. This allows for a natural percep on of acous c
instruments and voices and for an improved depth of the sound image.
TECHNICAL SPECIFICATION
Acous cal
System type
Low frequency transducer
High frequency transducer
Frequency response (±3 dB)
Sensi vity (2.83 V @ 1m, 2 Pi)
Horizontal Coverage Angle
Ver cal Coverage Angle
Maximum Peak SPL @ 1m
Electrical
Nominal Impedance
Minimum Impedance
Power Handling Con nuous*
Power Handling Peak
* AES Pink Noise Power
revision 2014-12-5

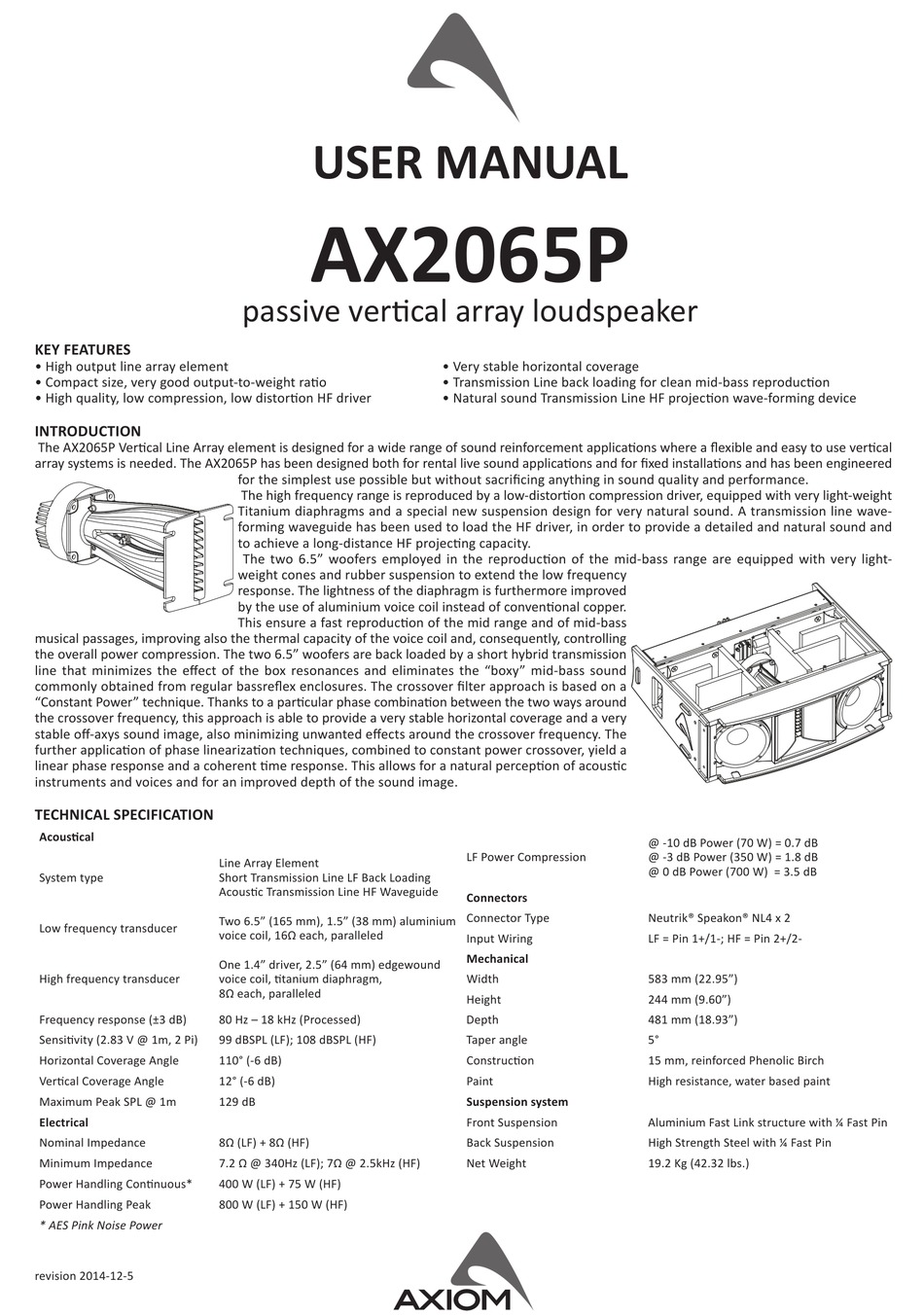

USER MANUAL

AX2065P
passive ver cal array loudspeaker
for the simplest use possible but without sacrifi cing anything in sound quality and performance.
The high frequency range is reproduced by a low-distor on compression driver, equipped with very light-weight
Titanium diaphragms and a special new suspension design for very natural sound. A transmission line wave-
forming waveguide has been used to load the HF driver, in order to provide a detailed and natural sound and
to achieve a long-distance HF projec ng capacity.
The two 6.5" woofers employed in the reproduc on of the mid-bass range are equipped with very light-
weight cones and rubber suspension to extend the low frequency
response. The lightness of the diaphragm is furthermore improved
by the use of aluminium voice coil instead of conven onal copper.
This ensure a fast reproduc on of the mid range and of mid-bass
Line Array Element
Short Transmission Line LF Back Loading
Acous c Transmission Line HF Waveguide
Two 6.5" (165 mm), 1.5" (38 mm) aluminium
voice coil, 16Ω each, paralleled
One 1.4" driver, 2.5" (64 mm) edgewound
voice coil, tanium diaphragm,
8Ω each, paralleled
80 Hz – 18 kHz (Processed)
99 dBSPL (LF); 108 dBSPL (HF)
110° (-6 dB)
12° (-6 dB)
129 dB
8Ω (LF) + 8Ω (HF)
7.2 Ω @ 340Hz (LF); 7Ω @ 2.5kHz (HF)
400 W (LF) + 75 W (HF)
800 W (LF) + 150 W (HF)
• Very stable horizontal coverage
• Transmission Line back loading for clean mid-bass reproduc on
• Natural sound Transmission Line HF projec on wave-forming device
LF Power Compression
Connectors
Connector Type
Input Wiring
Mechanical
Width
Height
Depth
Taper angle
Construc on
Paint
Suspension system
Front Suspension
Back Suspension
Net Weight
@ -10 dB Power (70 W) = 0.7 dB
@ -3 dB Power (350 W) = 1.8 dB
@ 0 dB Power (700 W) = 3.5 dB
Neutrik® Speakon® NL4 x 2
LF = Pin 1+/1-; HF = Pin 2+/2-
583 mm (22.95")
244 mm (9.60")
481 mm (18.93")
5°
15 mm, reinforced Phenolic Birch
High resistance, water based paint
Aluminium Fast Link structure with ¼ Fast Pin
High Strength Steel with ¼ Fast Pin
19.2 Kg (42.32 lbs.)
