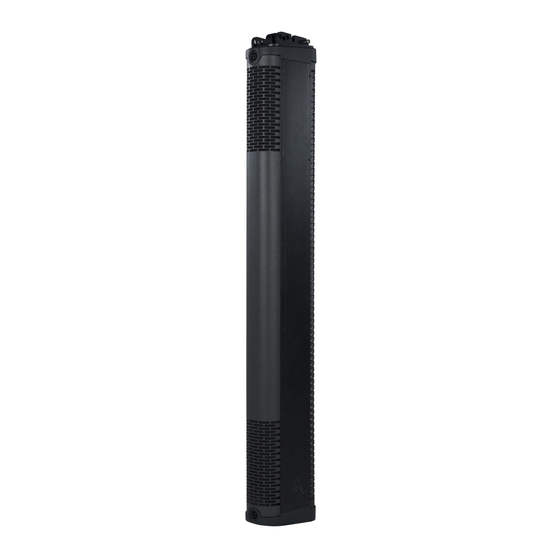

Axiom AX12LF User Manual

KEY FEATURES
• High Power passive portable Line Array element
• Designed for mobile and installed applications
• Fast, easy-to-use integrated suspension system
• Aluminium frame structure
INTRODUCTION
The AX12LF Line Array is a passive system equipped with twelve 3.5" long-excursion neodymium transducers with
waterproof cones, designed to provide low-frequency extension for AX12C and AX6C multiple systems.
Wherever a subwoofer is not needed, such as in speech applications or corporate events, the AX12LF provides a one
octave low frequency extension to the AX12C and AX6C. The same lightweight aluminum frame box and the common
suspension systems allow perfect integration with AX12C and AX6C elements.
The AX12LF line array module can be combined in different configurations with the AX12C (or AX6C – basically two
AX6C correspond to one AX12C). Possible configurations range from a simple two-unit column with one AX12C plus one
AX12LF suspended or installed on the ground, four-unit columns with one AX12LF at the base or one at the base and
one at the top, and very large suspended systems with four AX12C and two AX12LF at the back (end fire configuration).
The AX12LF can be powered using QC Series Class D processed amplifiers. Different presets for different combinations
are available for the built-in CORE DSP, which can be also remotely controlled using PRONET AX software.
Thanks to the elegant mechanical design the AX12C can be easily transported, while the integrated suspension
system makes its deployment very fast and simple. Each unit comes with two aluminum brackets and four pins that
allows multiple array elements to be easily combined either together or with AC12C and AX6C elements, or also in
combination with the complete range of mounting hardware available, including flybar and several brackets and stands.
TECHNICAL SPECIFICATION
SYSTEM
System's Acoustic Principle
Frequency Response (±3dB)
Nominal Impedance
Minimum Impedance
Horizontal Coverage Angle
Sensitivity (2.83V)
Maximum (peak) SPL
TRANSDUCERS
Type
Cone
Voice Coil Type
*measured @4 m and scaled @1 m
rev01_2018-03
USER MANUAL
AX12LF
High Output Column Array
Line Array Element
Short Transmission
Line Back Loading
90 Hz - 200 Hz (Processed)
8 Ohm
5.8 Ohm
360°
99 dB SPL @ 1m*
124 dB SPL @ 1m*
12 x 3.5" (88mm) Neodymium
magnet woofers, 1" (25mm) VC
Waterproof Cone
Ventilated voice coil
• 12 x 3.5" long excursion neodymium transducers with waterproof cones
• Acoustic transmission line back loading design
• 90 - 200 Hz low-frequency extension for AX12C and AX6C systems
• Black or white finish
INPUT CONNECTIONS
Connector Type
POWER HANDLING
Continuous AES Pink Noise Power
Program Power
ENCLOSURE & CONSTRUCTION
Width
Height
Depth
Enclosure Material
Paint
Flying system
Net Weight
Neutrik® Speakon® NL4 x 2
(1+/1- signal IN & LINK ; 2+/2- thru)
320 W
640 W
107 mm (4.2")
1166 mm (45.9") - without flying system
1212 mm (47.7") - with flying system
193 mm (7.6")
Aluminum
High resistance, water based paint, black or
white finish
Aluminum Fast Link structure with dedicated pins
13.2 kg / 29.0 lbs. (without flying system)
15.3 kg / 33.7 lbs. (with flying system)
