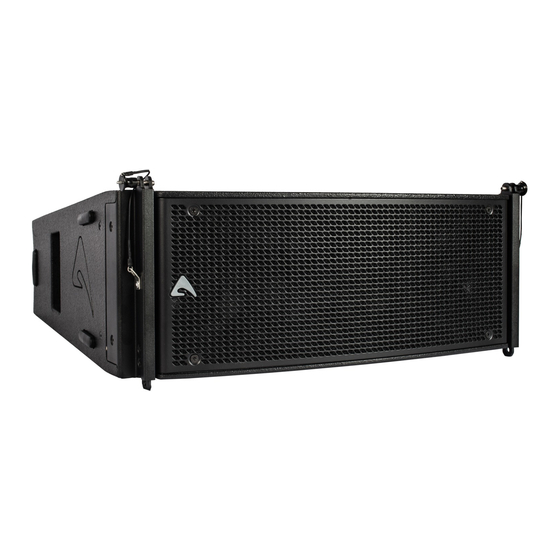

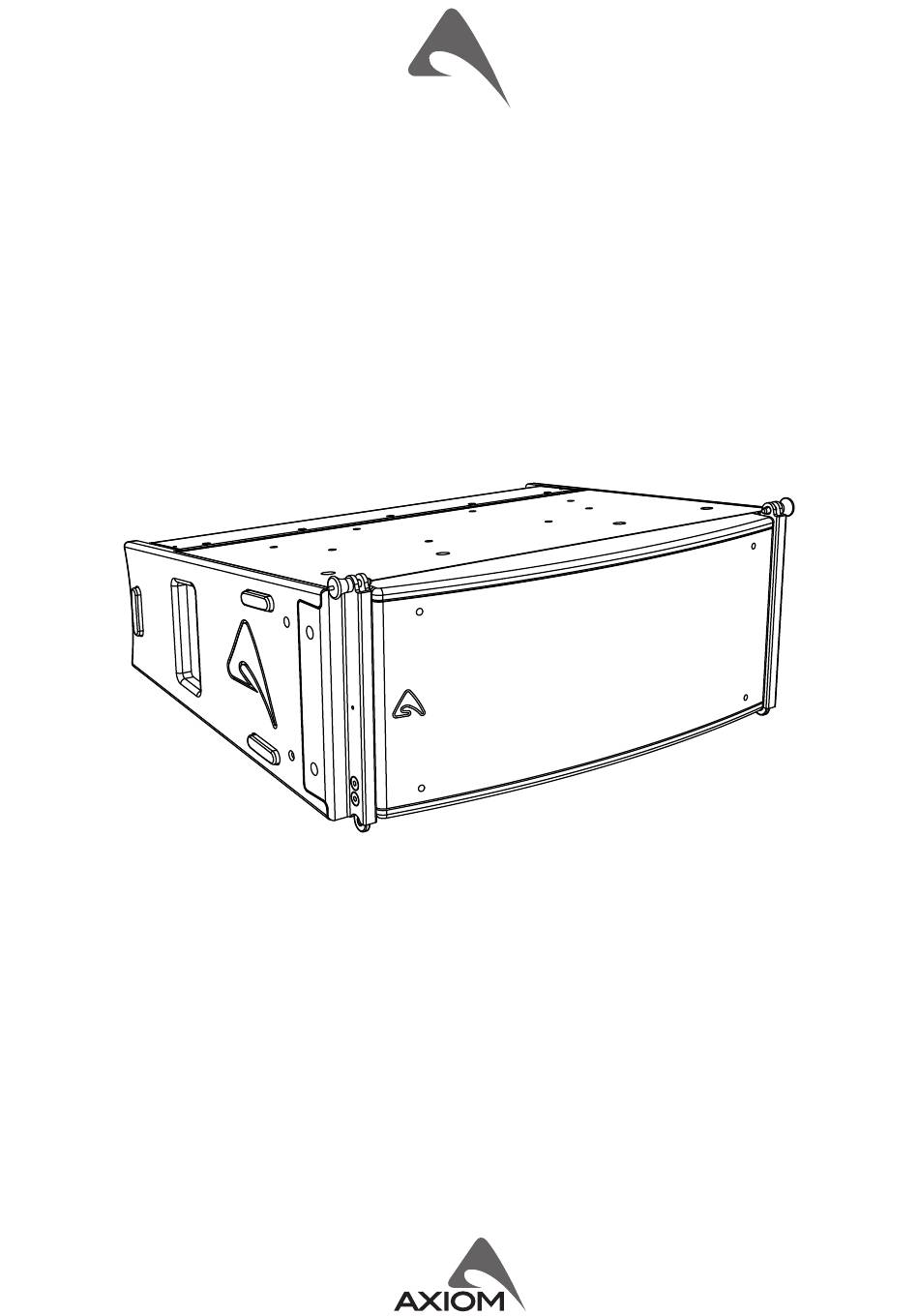

- Page 1 AX2065P Passive Vertical Array Loudspeaker USER MANUAL revision 2023-07-19...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. The product is in compliance with: S.I. 2012/3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase.
-
Page 4: Table Of Contents
The AX2065P Vertical Line Array element is designed for a wide range of sound reinforcement applications where a flexible and easy to use vertical array systems is needed. The AX2065P has been designed both for rental live sound applications and for fixed installations and has been engineered for the simplest use possible but without sacrificing anything in sound quality and performance. -
Page 5: Mechanical Drawing
Fly bar for Axiom AX2065 and SW215 Loudspeakers AXCASE06 Carrying Case for 4 box unit KPTAX2065 Fly bar for 6 MAX Axiom AX2065 Loudspeakers only NL4FXX-W-L Neutrik Speakon® PLUG for OD 10-16mm AXFEETKIT Kit Of 6pcs BOARDACF01 M10 foot for stacked installation... -
Page 6: Input
INPUT Power input for the external amplifier. The AX2065P does not include a passive crossover for filtering the signal, but only an internal protection that applies a gentle high-pass filtering and a limitation for excessive power on the HF section. The connections are the... -
Page 7: Prediction Software: Ease Focus 3
AFMG Technologies GmbH. It is based on the EASE GLL loudspeaker data file required for its use. The GLL file contains the data that defines the Line Array with regard to its possible configurations as well as to its geometrical and acoustical properties. Download the EASE Focus 3 app from the AXIOM website at https://www.axiomproaudio.com/ clicking on downloads section of the product. - Page 8 Fly bar suspension and angle setup (centre of gravity) The figures below show where the normal centre of gravity is with one box or several boxes arranged in a line. Usually the boxes are arranged to make an arc for the best coverage of the audience, so the center of gravity moves backward. The aiming software suggests the ideal suspension pinpoint taking into account this behaviour: fix the straight shackle in this position.
-
Page 9: Fly Bar And Accessories
• 12 AX2065A (flybar from 0 to 10°) KPTAX2065 can NOT be used for stacked array. • 2 SW215AF + 4 AX2065A + 4 AX2065P (flybar at 0°) • 2 SW215AF + 8 AX2065A (flybar at 0°) • 6 SW215AF (flybar from 0° to 5°) KPTSW215 can be used for stacked array, see further on this manual. - Page 10 Follow the sequence in the figure for fixing the fly bar at the first box. Usually this is the first step before lifting up the system. Be careful to insert properly all the locking pins (2)(3) and the shackle (5) in the right holes as specified by the aiming software. When lifting the system always proceed gradually step by step, paying attention to secure the fly bar to the box (and the box to the other boxes) before pulling up the system: this makes easier to insert properly the locking pins.
- Page 11 Follow the sequence in the figure for fixing the fly bar at the first box. Usually this is the first step before lifting up the system. Be careful to insert properly all the locking pins (2)(3) and the shackle (5) in the right holes as specified by the aiming software. When lifting the system always proceed gradually step by step, paying attention to secure the fly bar to the box (and the box to the other boxes) before pulling up the system: this makes easier to insert properly the locking pins.
-
Page 12: Stacked Installation
U-shaped frame of the next loudspeaker and inserting a locking pin in one of the numbered holes, it is possible to adjust the relative splay angle between two adjacent loudspeakers in the array column. The optimal splay angles can be simulated using the EASE Focus 3 software. KPTSW215 STACKED ARRAY System: AXIOM AX Series Company: PROEL S.p.A. Label: AXIOM AX Series Position: X=0.00 m... -
Page 13: System Processing Basic Instructions
SYSTEM PROCESSING BASIC INSTRUCTIONS The AX2065P system does not feature passive filters so it needs an external processor to take care of the filtering, the time alignment and the speaker protection. For the system’s processing PROEL PC260 digital loudspeaker processor must be used, loaded with dedicated presets for the correct system operation, which offer the best starting point for setting the time alignment, the gain and the equalization. -
Page 14: Example Of Installation Ina Theatre With Balcony
DOWN FILL BOX PRESET OPERATIONS In order to optimize the array performances for this specific application, the AX2065P - PRESET RESPONSE PRESETS should be loaded in different PC260 loudspeaker processors used in SUBWOOFER OUTPUTS LONG THROW STANDARD SINGLE/DOWNFILL the following way. - Page 15 It can be used for adjusting the system’s response or for fixing particular frequency problems in the environment where the system is installed. The AX2065P preset has been prepared in order to obtain the best performance from the system, so we suggest to avoid extreme use of the GEQ.
- Page 16 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
