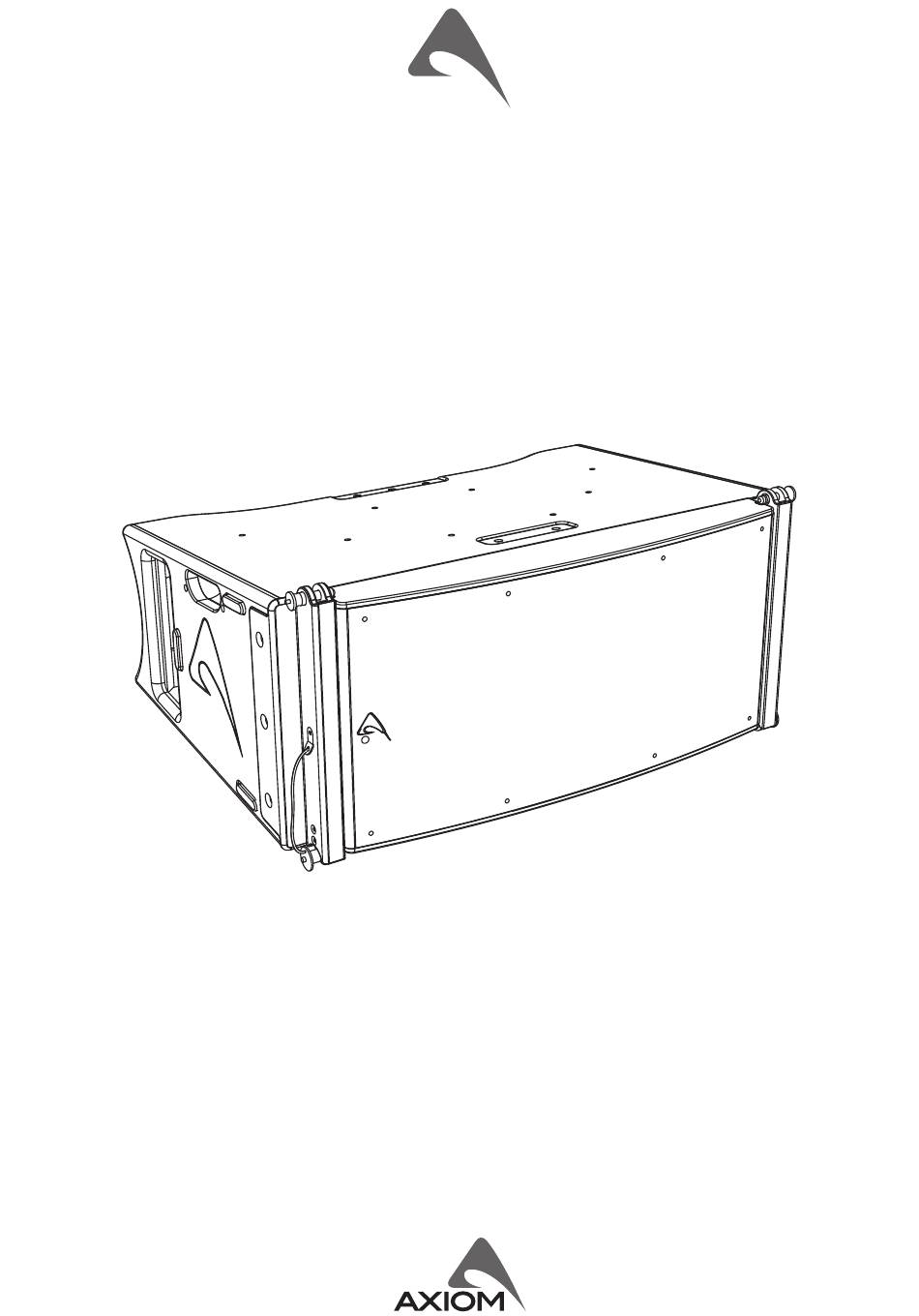

- Page 1 AX2010P Passive Vertical Array Loudspeaker USER MANUAL revision 2023-07-05...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. The product is in compliance with: S.I. 2012/3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase.
-
Page 4: Table Of Contents

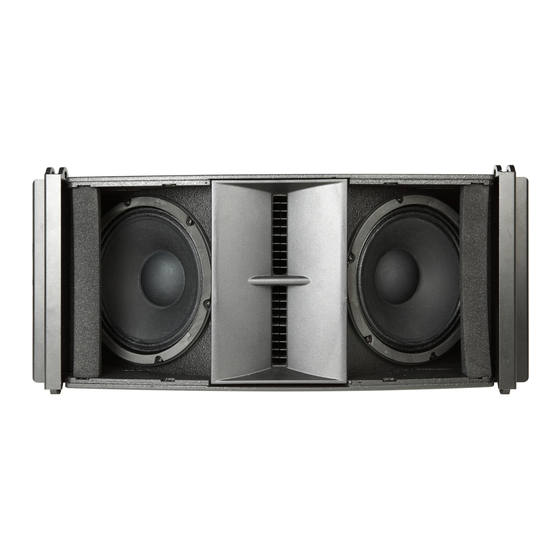

The AX2010P Vertical Line Array element is designed for a wide range of sound reinforcement applications where a flexible and easy to use vertical array systems is needed. The AX2010P has been designed both for rental live sound applications and for fixed installations and has been engineered for the simplest use possible but without sacrificing anything in sound quality and performance. -
Page 5: Mechanical Drawing
PC260 2 in 6 out digital loudspeaker processor USB2CANDV2 Dual output PRONET network converter KPTAX2012P Fly bar for Axiom AX2010 Loudspeakers AXFEETKIT Kit of 6pcs BOARDACF01 M10 foot for stacked installation RAINCOV2010PW Rain protection for power connectors see http://www.axiomproaudio.com/ for detailed description and other available accessories. -
Page 6: Input
MADE IN ITALY LINK Power output in parallel with the INPUT socket for connecting the unit to another speaker. The number of AX2010P cabinets that can be connected in parallel depends on the amplifier load capacity. Useful tools to set up properly a vertical array system This is a list of tools that can be very useful to set properly a vertical array system. -
Page 7: Prediction Software: Ease Focus 3
AFMG Technologies GmbH. It is based on the EASE GLL loudspeaker data file required for its use. The GLL file contains the data that defines the Line Array with regard to its possible configurations as well as to its geometrical and acoustical properties. Download the EASE Focus 3 app from the AXIOM website at https://www.axiomproaudio.com/ clicking on downloads section of the product. - Page 8 Fly bar suspension and angle setup (centre of gravity) The figure shows where the normal centre of gravity is with one box or several boxes arranged in a line. Usually the boxes are arranged to make an arc for the best coverage of the audience, so the center of gravity moves backward. The aiming software suggests the ideal suspension pinpoint taking into account this behaviour: fix the straight shackle in this position.
- Page 9 LOUDSPEAKER SPLAY ANGLES SET UP HINGE BAR OF PREVIOUS BOX Odd degrees Even degrees LOCK THE PIN IN THE HOLE TO OBTAIN THE REQUIRED SPLAY 0° 0° ANGLE. 1° 1° > 1° 2° 2° < 2° 3° > 3°/0.5° 3° 0.5°...
-
Page 10: Fly Bar And Accessories
FLY BAR AND ACCESSORIES The AX2010 Systems are built to allow the suspension of array with variable shape and dimensions. Thanks to a suspension mechanism designed to be functional, flexible and safe, each system must be suspended or stacked using the KPTAX2012P fly bar. The loudspeakers are linked together in a column using a series of couplers integrated in the frame of each enclosure. - Page 11 Follow the sequence in the figure for fixing the fly bar at the first box. Usually this is the first step before lifting up the system. Be careful to insert properly all the locking pins (2)(3) and the shackle (5) in the right holes as specified by the aiming software. When lifting the system always proceed gradually step by step, paying attention to secure the fly bar to the box (and the box to the other boxes) before pulling up the system: this makes easier to insert properly the locking pins.
-
Page 12: Stacked Installation
STACKED INSTALLATION WARNING! • The ground where the KPTAX2012P Fly bar serving as ground support is placed needs to be absolutely stable and compact. • In the stack configuration you have to use the three optional feet BOARDACF01 (AXFEETKIT kit) and the fly bar must be mounted upside down on the ground. -
Page 13: System Processing Basic Instructions
The preset provided for the AX2012P allow the correct operation of the system, provide the best starting point for setup of temporal EASE Focus 2, Version 2.5.10 alignment, gain adjustment and, eventually, system equalization. The preset is made considering several AX2010P boxes and most commonly used types of subwoofers in various configuration, the System: AXIOM AX Series Company: PROEL S.p.A. - Page 14 4 to 8 boxes or for the centre region of a bigger flown array. It can be used also for stacked arrays. • LONG THROW PRESET (name: AX2010P+SW218P_LONGTHROW v4_2.pcf): This PRESET can be used in arrays bigger than 6 or 8 boxes and loaded in the top 1 or 2 boxes in order to obtain a more even distribution of the sound pressure, especially if they point very far away or to the upper deck of a large theatre.
-
Page 15: Preset Using Example: Installation In A Theatre With Balcony
PRESET USING EXAMPLE: INSTALLATION IN A THEATRE WITH BALCONY In the following figure you can see an example of the use of different PRESETS in an AX2010P flown array installed in a big theatre with balcony: •... - Page 16 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
