AX800A NEO
Active Vertical Array Loudspeaker
USER MANUAL
revision 2023-08-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX800A NEO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axiom AX800A NEO

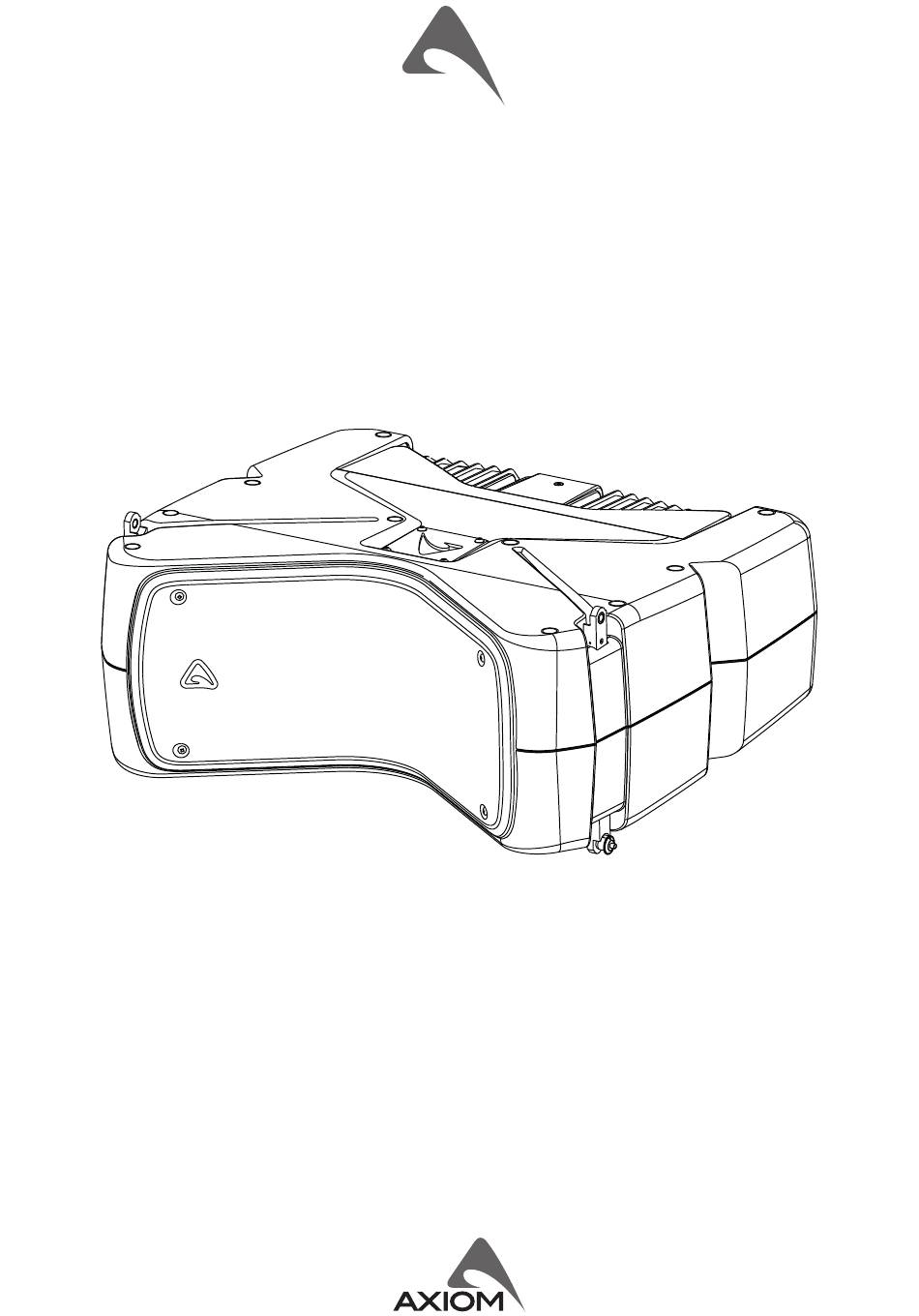

  • Page 1 AX800A NEO Active Vertical Array Loudspeaker USER MANUAL revision 2023-08-08...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 4: Table Of Contents

    The AX800A NEO is processed by 40bit, floating point CORE2 DSP implementing FIR filters for a speakers optimal eq and phase alignment, it is powered by high efficient CLASS D amplifier modules, with a PFC regulated switch mode circuit for universal supply allowing the maximum output power for any mains supply variation.
  • Page 5: Mechanical Drawing

    MECHANICAL DRAWING 51.6 cm 60 cm 20.3" 23.6" OPTIONAL ACCESSORIES AXCASE08 Carrying Case for 4 box unit NAC3FCA Neutrik Powercon® BLUE PLUG NAC3FCB Neutrik Powercon® WHITE PLUG NE8MCB Neutrik Ethercon PLUG NC3MXXBAG Neutrik XLR-M NC3FXXBAG Neutrik XLR-F SW1800A 2X18” Active Subwoofer USB2CAND Dual output PRONET network converter CAT5SLU01/05/10...
  • Page 6: I/O And Control Operations

    Powercon® NAC3FCB power output connector (grey). This is connected in parallel with the MAINS ~ / IN, it is suited to link the supply of a maximum of further 3 AX800A NEO loudspeakers. WARNING! In the case of product failure or fuse replacement, disconnect the unit completely from the mains power.
  • Page 7: Sign/Limit

    STANDARD. If you want to modify it, you have to connect the unit to a PC, edit the parameters with PRONET AX software and save the PRESET into USER MEMORY no. 1. AX800A NEO - PRESET RESPONSE LONG THROW STANDARD...
  • Page 8: Preset Using Example: Installation In A Theatre With Balcony

    PRESET USING EXAMPLE: INSTALLATION IN A THEATRE WITH BALCONY In the following figure you can see an example of the use of different PRESETS in an AX800A NEO flown array installed in a big theatre with balcony: • The TOP BOXES of the array are aiming at the balcony while the DOWN FILL box is aiming at the audience close to the stage.
  • Page 9 With the network made always of the same devices the assigning ID procedure must be executed only the first time the system is turned on. For more detailed instruction about PRONET AX see the PRONET AX USER’S MANUAL included with the software. EXAMPLE OF PRONET AX NETWORK WITH AX800A NEO AND SW1800A USB 2.0 port network 1) pressed if the USB2CAND is the first device...
  • Page 10: Prediction Software: Ease Focus 3

    The EASE FOCUS prediction software is the tool that allows you to evaluate your installation both to meet the acoustic requirements of the project and also to suspend or stack AX800A NEO systems, the program allows you to simulate the rigging pinpoint on the fly bar to obtain the calculated splay angle of the entire line array system and of the individual angles between each loudspeaker element.
  • Page 11 Fly bar suspension and angle setup (centre of gravity) KPTAX800 FLY BAR FOR FLOWN ARRAY The figure at the side shows where the normal centre of gravity is with one box or several boxes arranged in a line. Usually the boxes are arranged to make an arc for the best coverage of the audience, so the center of gravity moves backward.
  • Page 12: Fly Bars And Accessories

    FLY BARS AND ACCESSORIES KPTAX800 FLY BAR AND ACCESSORIES The AX800A systems are built to allow the suspension of array with variable shape and STRAIGHT SHACKLE 16mm dimensions. Thanks to a suspension mechanism IDENTIFICATION AND designed to be functional, flexible and safe, each DATA LABEL system must be suspended or stacked using the KPTAX800 or KPTAX800L fly bar.
  • Page 13 KPTAX800L fly bar maximum capacity is 680 Kg (1500 lbs) with the 0° angle. KPTAX800L FLY BAR AND ACCESSORIES It can support, with a safety factor of STRAIGHT SHACKLE 16mm 10:1, up to: M10 FOOT FOR IDENTIFICATION AND • 12 AX800A DATA LABEL STACKED INSTALLATION •...
  • Page 14: Stacked System With Kptax800L

    STACKED SYSTEM WITH KPTAX800L WARNING! • The ground where the KPTAX800L Fly bar serving as ground support is placed needs to be absolutely stable and compact. • Adjust the feet so to lie the bar perfectly horizontal. • Always secure ground stacked setups against movement and possible tipping over. •...
  • Page 15: Stacked System With Kpax8 Pole Adapter

    STACKED SYSTEM WITH KPAX8 POLE ADAPTER WARNING! • A maximum of 2 x AX800A can be installed on a pole using the KPAX8 pole adapter. • The KPAX8 can be installed on a SW1800A sub-woofer (preferably in horizontal position) using the DHSS10M20 adjustable sub-Speaker ø...
  • Page 16 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
